MX 6.2L MPI HORIZON MIE - Serial 0M310000 Thru 0M316999 - Closed Cooling System

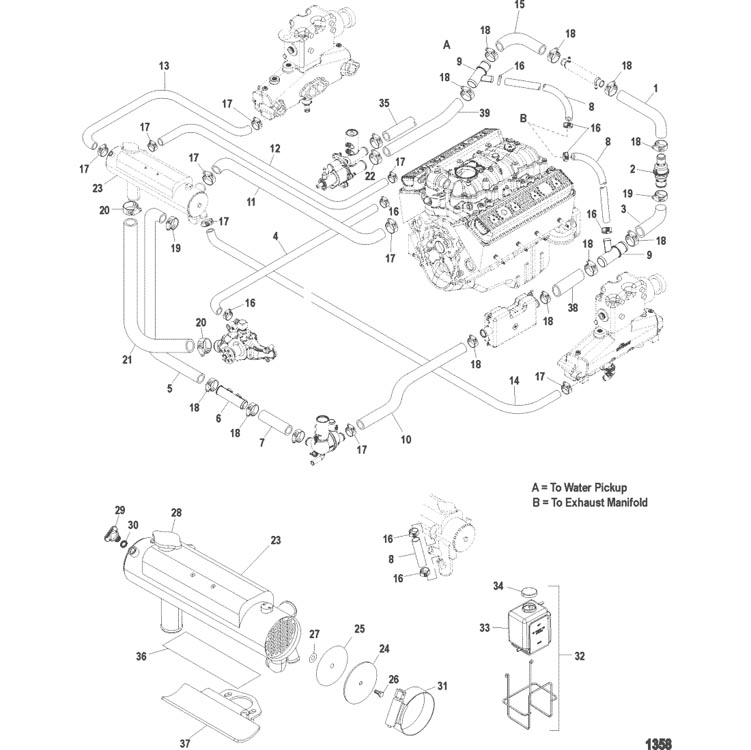

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Boost Pump, 350 Magnum SN-0M311444 MX6.2L SN-0M311053 And Up
- Closed Cooling System
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Manifold And Elbow
- Front Cover And Circulating Pump
- Fuel Filter, 350 Mag SN-0M311443 MX6.2L SN-0M311052 - Below
- Fuel Pump And Fuel Cooler
- Intake Manifold and Fuel Rail
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat And Housing
- Throttle Body
- Transmission And Engine Mounting(Borg-Warner 5000)
- Transmission And Engine Mounting(Borg-Warner 71C And 72C)
- Transmission And Engine Mounting(Hurth 630)
- Transmission And Related Parts(Borg-Warner 5000)
- Transmission And Related Parts(Borg-Warner 71C And 72C)
- Transmission And Related Parts(Hurth 630)
- Transmission(Walter V-Drive)
- Water Distribution Housing
- Water Drain-Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-863489 | HOSE, Transmission Cooler To Check Valve | 1 | ||||||
| 2 | 21-864206A1 | CHECK VALVE ASSEMBLY | 1 | ||||||
| 3 | 32-864480 | HOSE, Check Valve To Tee Fitting | 1 | ||||||
| 4 | 32-8638871 | HOSE, Intake Bypass To Circulating Pump | 1 | No Longer Available | |||||
| 5 | 32-863793 | HOSE, Distribution Fitting To Heat Exchanger | 1 | ||||||
| 6 | 22-864496 | FITTING, Distribution | 1 | No Longer Available | |||||
| 7 | 32-863490 | HOSE, Distribution Fitting To Accumulator Housing | 1 | ||||||
| 8 | 32-8M0062634 | HOSE, (44.00 Inches Bulk) (Cut To Size) | 1 | 4285069 | |||||
| 9 | 22-862993 | FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb, Drain | 3 | ||||||
| 10 | 32-863670 | HOSE, Fuel Cooler To Accumulator Housing | 1 | ||||||
| 11 | 32-863885 | HOSE, Heat Exchanger To Thermostat Housing | 1 | ||||||
| 12 | 32-863886 | HOSE, Heat Exchanger To Thermostat Housing | 1 | No Longer Available | |||||
| 13 | 32-862125 | HOSE, Heat Exchanger To Exhaust Manifold | 1 | ||||||
| 14 | 32-860421 | HOSE, Heat Exchanger To Exhaust Manifold | 1 | ||||||
| 15 | 32-864478 | HOSE, T Fitting To Trans Cooler, Sea Pump To Trans Cooler | 1 | ||||||
| 16 | 54-815504212 | CLAMP, Worm Gear, Hose | 1 | ||||||
| 17 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter), Hose | 1 | ||||||
| 18 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter), Hose | 1 | ||||||
| 19 | 54-815504228 | CLAMP, Worm Gear, Hose | 1 | 54-32781 54-853232 54-853432 |
|||||
| 20 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter), Hose | 1 | ||||||
| 21 | 32-861059 | HOSE, Heat Exchanger To Circulating Pump | 1 | ||||||
| 22 | 54-815504220 | CLAMP, Worm Gear, Hose | 1 | 54-32880 54-32780 54-803620 54-882355 |
|||||
| 23 | 863709A02 | HEAT EXCHANGER, Closed Cooling | 1 | 863709A1 | |||||
| 24 | 8M0036623 | COVER, Heat Exchanger End | 2 | 814875 | |||||
| 25 | 27-8M0036987 | GASKET, End Cover | 2 | 803644 | |||||
| 26 | 10-814877 | BOLT | 2 | ||||||
| 27 | 25-8M0039163 | O-RING, Special | 2 | 814878 | |||||
| 28 | 36-8148791 | CAP, Pressure | 1 | ||||||
| 29 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue | 1 | 806608A1 | |||||
| 30 | 25-32509 | O-RING, (.489 x .070) | 1 | ||||||
| 31 | 54-815504388 | CLAMP, Worm Gear, Heat Exchanger | 1 | 54-59381 54-8M2001524 54-F695920 |
|||||
| 32 | 71587A10 | RECOVERY KIT, Coolant | 1 | ||||||
| NS | 32-774572 | HOSE, (48.00 Inches Bulk) | 1 | ||||||
| 33 | 71587A11 | BOTTLE, Plastic, Coolant Recovery Kit | 1 | ||||||
| 34 | 72508 | CAP, Coolant Recovery Bottle | 1 | ||||||
| 35 | 32-8M0062666 | HOSE, (96.00 Inches Bulk), Sea Water Pump To Water Pick Up | 1 | 1743579 | |||||
| 36 | 18431 | PAD, Heat Exchanger | 1 | ||||||
| 37 | 863680A1 | BRACKET, Cooler | 1 | No Longer Available | |||||
| 38 | 32-864620 | HOSE, Tee Fitting To Fuel Cooler | 1 | ||||||
| 39 | 32-864477 | HOSE, Sea Pump To Tee Fitting | 1 | ||||||
| NS | 19-8M0074364 | COVER, Hose Clamp End | AR | 8079923 |
