MX 6.2L MPI HORIZON MIE - Serial 0M310000 Thru 0M316999 - Remote Oil Filter

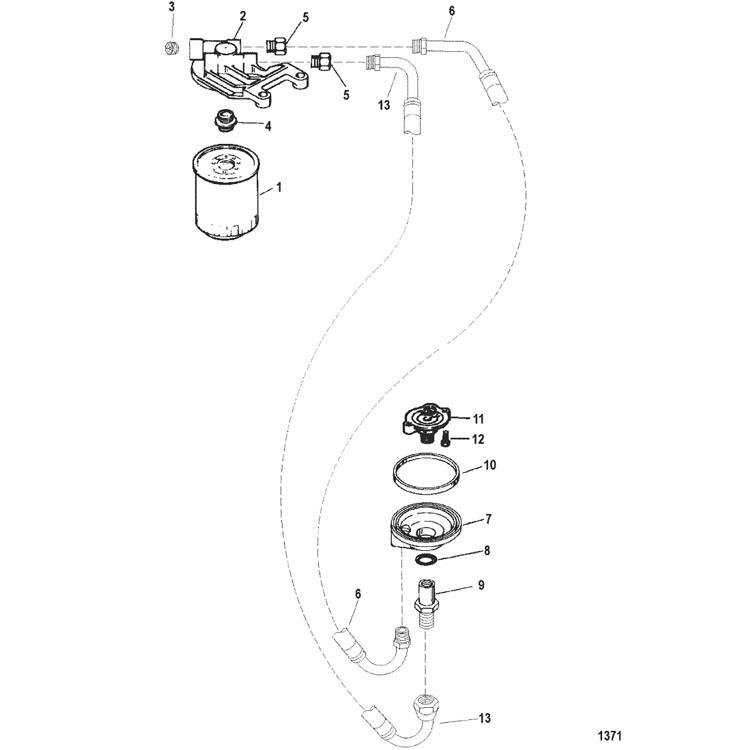

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 35-866340Q03         FILTER, Oil 1 802885Q
1 35-866340K01         FILTER, Oil 1 802885T
2 814420A5         BRACKET, Oil Filter 1
2 817403A4         BRACKET ASSEMBLY, Oil Filter 1   No Longer Available
3 22-384071         FITTING, (1/2-14) (.50-14 ) 1
4 22-814822         FITTING, Oil Filter 1
5 22-805563         CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) 2
6 32-8636531         HOSE, Oil 1
6 32-863655         HOSE, Oil 1
6 32-863805         HOSE, Oil, V Drive 1
6 32-863807         HOSE, Oil, V Drive 1
7 35-818400A1         ADAPTOR 1
8 26-42077         SEAL 1
9 22-806121         FITTING 1
10 27-91892         GASKET 1
11 71920         VALVE ASSEMBLY, Filter 1 53338
12 10-54786         SCREW, (.312-18 x 1.250) 2
13 32-8636521         HOSE, Oil 1
13 32-863654         HOSE, Oil 1
13 32-863806         HOSE, Oil, V Drive 1
13 32-863808         HOSE, Oil, V Drive 1
- 27-861246A05         GASKET SET, Engine Overhaul 1 861246A98
