MX 6.2L MPI HORIZON MIE - Serial 0M310000 Thru 0M316999 - Transmission And Related Parts(Borg-Warner 5000)

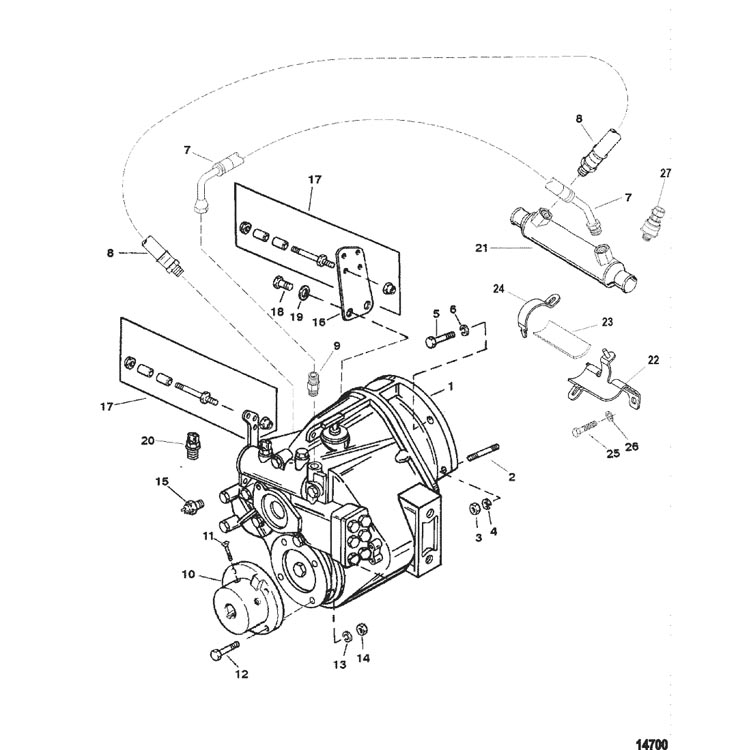

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Boost Pump, 350 Magnum SN-0M311444 MX6.2L SN-0M311053 And Up
- Closed Cooling System
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Manifold And Elbow
- Front Cover And Circulating Pump
- Fuel Filter, 350 Mag SN-0M311443 MX6.2L SN-0M311052 - Below
- Fuel Pump And Fuel Cooler
- Intake Manifold and Fuel Rail
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat And Housing
- Throttle Body
- Transmission And Engine Mounting(Borg-Warner 5000)
- Transmission And Engine Mounting(Borg-Warner 71C And 72C)
- Transmission And Engine Mounting(Hurth 630)
- Transmission And Related Parts(Borg-Warner 5000)
- Transmission And Related Parts(Borg-Warner 71C And 72C)
- Transmission And Related Parts(Hurth 630)
- Transmission(Walter V-Drive)
- Water Distribution Housing
- Water Drain-Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 805495R57 | TRANSMISSION | 1 | No Longer Available | |||||
| 1 | 805495R58 | TRANSMISSION | 1 | No Longer Available | |||||
| 1 | 805495R59 | TRANSMISSION | 1 | No Longer Available | |||||
| 1 | 805495R60 | TRANSMISSION | 1 | No Longer Available | |||||
| 1 | 807481A5 | TRANSMISSION | 1 | ||||||
| 1 | 807481R56 | TRANSMISSION | 1 | No Longer Available | |||||
| 1 | 807481R57 | TRANSMISSION | 1 | No Longer Available | |||||
| 2 | 16-805259 | STUD | 2 | ||||||
| 3 | 11-34933 | NUT, (.437-20) Stainless Steel | 2 | 82671015 | |||||
| 4 | 12-22248 | WASHER, (.453 x .875 x .060) | 2 | ||||||
| 5 | 10-47462 | SCREW, (.437-14 x 1.250) | 4 | ||||||
| 6 | 13-32993 | LOCKWASHER, (.437) | 4 | ||||||
| 7 | 32-807686 | HOSE, Oil | 1 | ||||||
| 8 | 32-8054781 | HOSE, (19.50), Oil | 1 | ||||||
| 9 | 22-807272 | FITTING, (.50) Inch Flare To (.375) Inch NPT | 1 | ||||||
| 10 | 87917A1 | FLANGE ASSEMBLY, (4.00 x 1.00) | OPT | No Longer Available | |||||
| 10 | 79476A1 | FLANGE ASSEMBLY, (5.00 x 1.00) | OPT | ||||||
| 10 | 79476A2 | FLANGE ASSEMBLY, (5.00 x 1.125) | OPT | No Longer Available | |||||
| 10 | 79476A3 | FLANGE ASSEMBLY, (5.00 x 1.25) | OPT | ||||||
| 10 | 79476A4 | FLANGE ASSEMBLY, (5.00 x 1.375) | OPT | ||||||
| 10 | 79476A5 | FLANGE ASSEMBLY, (5.00 x 1.50) | OPT | ||||||
| 10 | 79476A6 | FLANGE ASSEMBLY, (5.00 x 1.75) | OPT | ||||||
| 10 | 79476A7 | FLANGE ASSEMBLY, (5.00 x 2.00) | OPT | No Longer Available | |||||
| 11 | 10-60171 | SCREW, (.375-16 x 1.250) | 2 | ||||||
| 11 | 10-60169 | SCREW, (.375-16 x .750) | 2 | ||||||
| 12 | 10-68101 | SCREW, (.375-16 x 1.375) | 4 | ||||||
| 12 | 10-805159 | SCREW, (.437-20 x 1.500) | 4 | ||||||
| 13 | 13-35048 | LOCKWASHER, (.375) | 4 | ||||||
| 13 | 13-32993 | LOCKWASHER, (.437) | 4 | ||||||
| 14 | 11-32219 | NUT, (.375-16) | 4 | ||||||
| 14 | 11-22024 | NUT, (.437-14) | 4 | ||||||
| 15 | 87-88031 | SWITCH ASSEMBLY, Temperature | 1 | ||||||
| 16 | 806238 | BRACKET, Shift Linkage | 1 | ||||||
| 17 | 16-97477A3 | STUD KIT | 2 | ||||||
| 18 | 10-40001124 | SCREW, (M8 x 14) | 2 | ||||||
| 19 | 13-400247 | LOCKWASHER, (M8) | 2 | ||||||
| 20 | 47613 | SWITCH, Neutral Safety | 1 | ||||||
| 21 | 863832T01 | COOLER, Oil | 1 | 863832T | |||||
| 22 | 863850 | BRACKET, Transmission Oil Cooler | 1 | ||||||
| 23 | 772233 | PAD | 1 | ||||||
| 24 | 807445T | CLAMP | 1 | ||||||
| 25 | 10-37612 | SCREW, (.375-16 x 1.250) | 1 | ||||||
| 26 | 13-35048 | LOCKWASHER, (.375) | 1 | ||||||
| 27 | 8M6000623 | SENSOR, Pressure | 1 | 8818793 |
