MX 6.2L MPI HORIZON MIE - Serial 0M310000 Thru 0M316999 - Distributor And Ignition Components

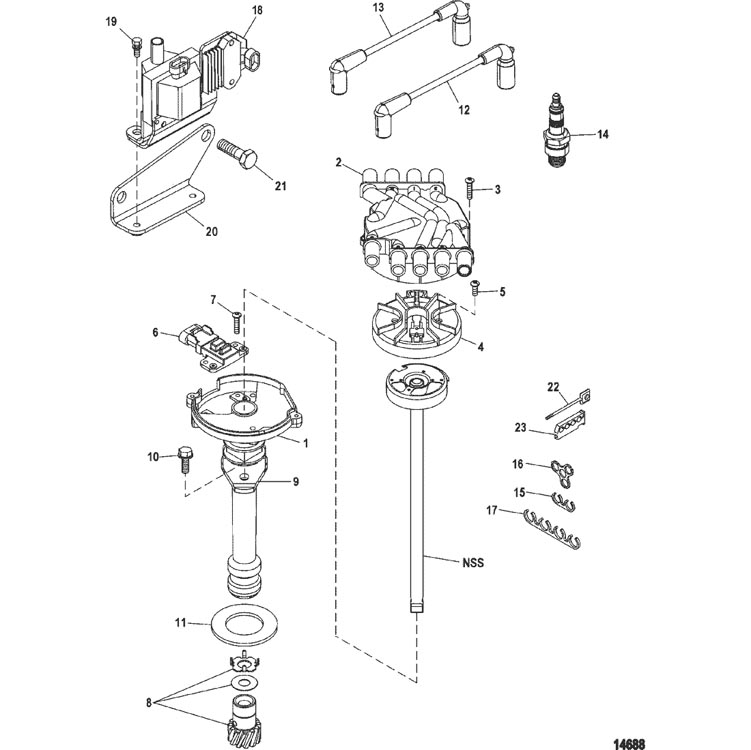

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Boost Pump, 350 Magnum SN-0M311444 MX6.2L SN-0M311053 And Up
- Closed Cooling System
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Manifold And Elbow
- Front Cover And Circulating Pump
- Fuel Filter, 350 Mag SN-0M311443 MX6.2L SN-0M311052 - Below
- Fuel Pump And Fuel Cooler
- Intake Manifold and Fuel Rail
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat And Housing
- Throttle Body
- Transmission And Engine Mounting(Borg-Warner 5000)
- Transmission And Engine Mounting(Borg-Warner 71C And 72C)
- Transmission And Engine Mounting(Hurth 630)
- Transmission And Related Parts(Borg-Warner 5000)
- Transmission And Related Parts(Borg-Warner 71C And 72C)
- Transmission And Related Parts(Hurth 630)
- Transmission(Walter V-Drive)
- Water Distribution Housing
- Water Drain-Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 879150A87 | DISTRIBUTOR ASSEMBLY | 1 | 884794A1 | |||||
| 2 | 8M6001106 | CAP, Distributor | 1 | 884792 | |||||
| 3 | 10-884786 | SCREW | 2 | ||||||
| 4 | 8M6001222 | ROTOR | 1 | 884790 | |||||
| 5 | 10-884788 | SCREW | 2 | ||||||
| 6 | NSS | NOT SOLD SEPARATE, Sensor Assembly | 1 | ||||||
| 7 | NSS | NOT SOLD SEPARATE, Screw | 2 | ||||||
| 8 | 43-884789 | GEAR ASSEMBLY | 1 | ||||||
| 9 | 54-88731 | CLAMP | 1 | ||||||
| 10 | 10-40011149 | SCREW, (M8 x 25) Stainless Steel | 1 | ||||||
| 11 | 27-344863 | GASKET | 1 | ||||||
| 12 | 84-863656A1 | CABLE KIT, Ignition, Plug And Coil Wires | 1 | ||||||
| 13 | 84-863657A1 | CABLE ASSEMBLY, Coil Wire Assembly | 1 | ||||||
| 14 | 33-8M2018369 | SPARK PLUG (AC 41-932) | 8 | 884019 | |||||
| 15 | 54676 | RETAINER, Two Wire | 2 | ||||||
| 16 | 32783 | RETAINER, Three Wire | 2 | ||||||
| 17 | 32784 | RETAINER, Four Wire | 2 | ||||||
| 18 | 392-8M0054588 | COIL, Ignition | 1 | 863704T | |||||
| 19 | 10-657461 | SCREW AND LOCKWASHER, (.250-20 x .625) | 2 | ||||||
| 20 | 863663T | BRACKET, Coil | 1 | 863663 | |||||
| 21 | 10-98261 | SCREW, (.375-16 x .750) | 2 | ||||||
| 22 | 16-90096A1 | STUD ASSEMBLY, (#10-32 x Special) | 2 | ||||||
| 23 | 54-72821 | RETAINER | 2 | ||||||
| - | 27-861246A05 | GASKET SET, Engine Overhaul | 1 | 861246A98 |
