MX 6.2L MPI HORIZON MIE - Serial 0M310000 Thru 0M316999 - Transmission(Walter V-Drive)

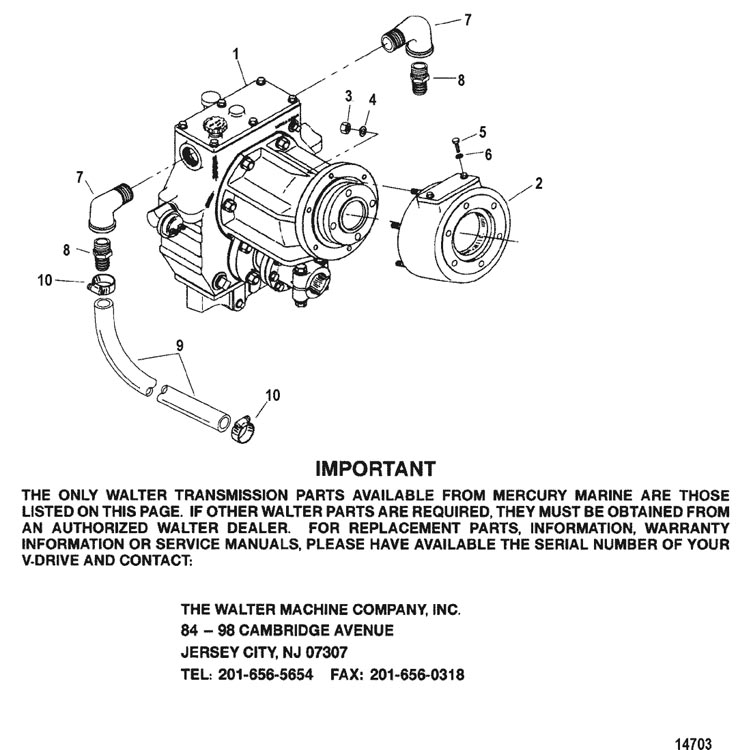

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Boost Pump, 350 Magnum SN-0M311444 MX6.2L SN-0M311053 And Up
- Closed Cooling System
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Manifold And Elbow
- Front Cover And Circulating Pump
- Fuel Filter, 350 Mag SN-0M311443 MX6.2L SN-0M311052 - Below
- Fuel Pump And Fuel Cooler
- Intake Manifold and Fuel Rail
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat And Housing
- Throttle Body
- Transmission And Engine Mounting(Borg-Warner 5000)
- Transmission And Engine Mounting(Borg-Warner 71C And 72C)
- Transmission And Engine Mounting(Hurth 630)
- Transmission And Related Parts(Borg-Warner 5000)
- Transmission And Related Parts(Borg-Warner 71C And 72C)
- Transmission And Related Parts(Hurth 630)
- Transmission(Walter V-Drive)
- Water Distribution Housing
- Water Drain-Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 860361A6 | TRANSMISSION (1.00:1) | 1 | No Longer Available | |||||
| 1 | 860362A2 | TRANSMISSION (1.46:1) | 1 | ||||||
| 2 | 860308A3 | HOUSING ASSEMBLY, Adaptor | 1 | ||||||
| 3 | 11-86226 | NUT, (.375-16) | 6 | ||||||
| 4 | 13-35048 | LOCKWASHER, (.375) | 6 | ||||||
| 5 | 10-28636 | SCREW, (.250-20 x .750) | 2 | ||||||
| 6 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 7 | 22-860378 | ELBOW (90 Degree) | 2 | ||||||
| 8 | 22-860379 | FITTING, Barb | 2 | ||||||
| 9 | 32-8M0062666 | HOSE, (96.00 Inches Bulk), To Sea Water Pump | 1 | 1743579 | |||||
| 10 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter), Hose | 2 | ||||||
| NS | 19-8M0074364 | COVER, Hose Clamp End | AR | 8079923 |
