MX 6.2L MPI HORIZON MIE - Serial 0W390000 Thru 0W689999 - Electrical Components(Digital Throttle and Shift)

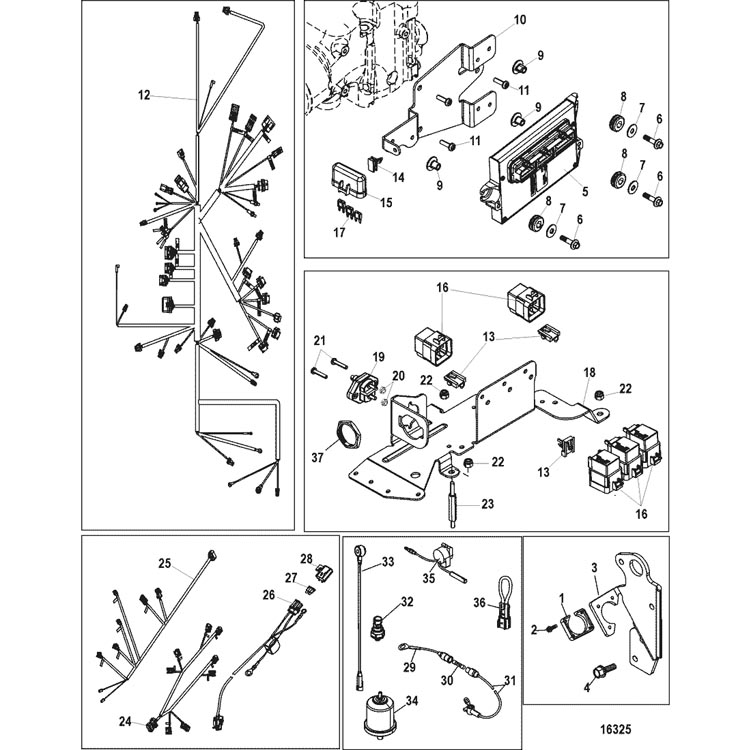

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components(Digital Throttle and Shift)
- Electrical Components(Mechanical Throttle and Shift)
- Exhaust Manifold and Elbow
- Exhaust Risers
- Front Cover and Circulating Pump
- Fuel Supply Module
- Gasket Set Components (27-861246A05), Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
- Throttle Body(Digital Throttle and Shift)
- Throttle Body(Mechanical)
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 26079A2 | PLATE KIT, Wire Harness Mount | 1 | ||||||
| 2 | 10-15001 | SCREW, (#8-16 x .875) | 4 | ||||||
| 3 | 865480T | BRACKET, Harness Mounting/Lifting Eye | 1 | ||||||
| 4 | 10-98261 | SCREW, (.375-16 x .750) | 2 | ||||||
| 5 | 866240T06 | PCM, Propulsion Control Module | 1 | 866240T02 | |||||
| 5 | 866241T06 | PCM, Propulsion Control Module | 1 | 866241T02 | |||||
| 5 | 866244T06 | PCM, Propulsion Control Module | 1 | 866244T01 | |||||
| 5 | 866245T06 | PCM, Propulsion Control Module | 1 | 866245T01 | |||||
| 6 | 10-82130025 | SCREW, (M6 x 25) | 3 | ||||||
| 7 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 8 | 25-834985 | GROMMET | 3 | ||||||
| 9 | 23-856954 | BUSHING | 3 | ||||||
| 10 | 865479T01 | BRACKET, PCM Mount | 1 | ||||||
| 11 | 10-860008 | SCREW, (.250-20 x .625) Torx | 3 | ||||||
| 12 | 84-866052T02 | HARNESS ASSEMBLY, Main Engine | 1 | ||||||
| 13 | 54-865205 | CLIP, Relay Mounting | 2 | 804351 | |||||
| 14 | 54-804352 | CLIP, Fuse Block Mounting | 1 | ||||||
| 15 | 883562 | COVER, Fuse | 1 | ||||||
| 16 | 86-865202T | RELAY | 2 | ||||||
| 17 | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 3 | 83296920 | |||||
| 18 | 865483T | BRACKET, Circuit Breaker and Relays | 1 | ||||||
| 19 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | No Longer Available | |||||
| 20 | 11-826709106 | NUT, (#10-32) | 2 | 29488 | |||||
| 21 | 10-830861 | SCREW, (#8-32 x .625) | 2 | ||||||
| 22 | 11-401366 | NUT, (M6) Stainless Steel | 3 | ||||||
| 23 | 16-863439 | STUD | 1 | ||||||
| 24 | 84-865983T01 | HARNESS ASSEMBLY, Injectors | 1 | ||||||
| 25 | 84-865676T01 | HARNESS ASSEMBLY, Transmission | 1 | ||||||
| 26 | 84-888416T04 | HARNESS ASSEMBLY, Clean Power | 1 | 888416T03 | |||||
| 27 | 862646 | FUSE, Tan - 5 Ampere | 1 | ||||||
| 28 | 828054 | COVER, Fuse | 1 | ||||||
| 29 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red | 1 | ||||||
| 30 | 88-79091 | FUSE, 20 Ampere | 1 | ||||||
| 31 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip | 1 | ||||||
| 32 | 8M6000623 | SENSOR, Pressure | 1 | 8818793 | |||||
| 32 | 881879T11 | SENSOR, (0 - 100 PSI), Pressure | 1 | 881879A6 | |||||
| 33 | 8M6003194 | SENSOR ASSEMBLY, Knock | 2 | 878187 | |||||
| 34 | 8M0068784 | SENDER ASSEMBLY, Oil | 1 | 815425T | |||||
| 34 | 37293T | SENDER ASSEMBLY, Oil | 1 | ||||||
| 35 | 816492A15 | ALARM KIT | 1 | ||||||
| 36 | 864337A1 | CONNECTOR, Black, Jumper | 1 | ||||||
| 37 | 11-889664 | NUT, (1.500-18) Black Nylon | 1 |
