MX 6.2L MPI HORIZON MIE - Serial 0W390000 Thru 0W689999 - Sea Water Pump Assembly

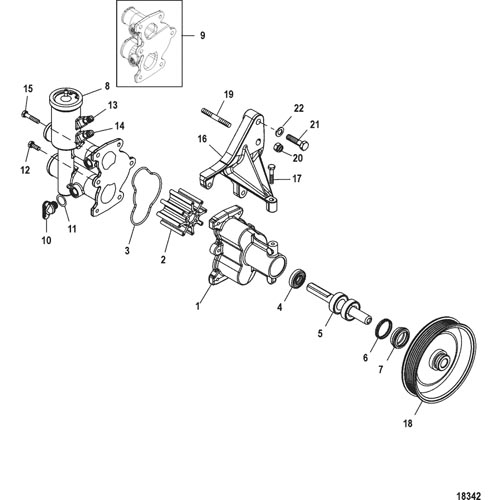

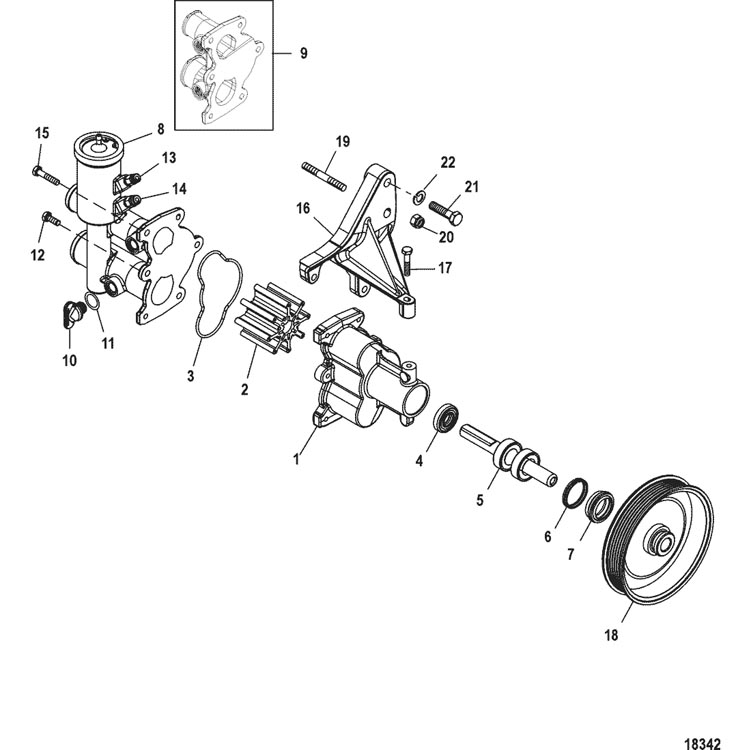

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components(Digital Throttle and Shift)
- Electrical Components(Mechanical Throttle and Shift)
- Exhaust Manifold and Elbow
- Exhaust Risers
- Front Cover and Circulating Pump
- Fuel Supply Module
- Gasket Set Components (27-861246A05), Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
- Throttle Body(Digital Throttle and Shift)
- Throttle Body(Mechanical)
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| - | 46-862914T10 | 625-4102 | PUMP KIT, Sea Water | 1 | (Without Air Fittings) | |||||
| - | 46-862914T11 | 625-4102 | PUMP KIT, Sea Water | 1 | (With Air Fittings) | |||||
| 1 | 46-862914A13 | HOUSING ASSEMBLY, Impeller | 1 | |||||||
| 2 | 47-8M0104229 | 676-9-45310 | 700-89700 | IMPELLER | 1 | |||||
| 3 | 25-841807 | O-RING, (3.500 x .103) (Also included with Reference 8 and 9) | 1 | |||||||
| 4 | 26-8M2001645 | SEAL, Oil | 1 | 26-862037 | ||||||
| 5 | 8M0050018 | DRIVESHAFT ASSEMBLY | 1 | 862235A1 | ||||||
| 6 | 862039 | TOLERANCE RING | 1 | |||||||
| 7 | 26-862040 | SEAL, Lip | 1 | |||||||
| 8 | 863674A05 | COVER KIT, Impeller Housing | 1 | (With Air Fittings) | ||||||
| 9 | 862776A01 | COVER KIT, Impeller Housing | 1 | (Without Air Fittings) | ||||||
| 10 | 22-806608A02 | 700-13992 | PLUG KIT, (.500-13) Royal Blue | 2 | 22-806608A1 | |||||
| 11 | 25-32509 | O-RING, (.489 x .070) | 2 | |||||||
| 12 | 10-4000328 | SCREW, (M6 x 16) | 6 | |||||||
| 13 | 22-863718 | FITTING, Gray - Straight, Male Air | 1 | (.1562)(Component of | 46-862914T11) | |||||
| 14 | 22-863719 | FITTING, Orange - Straight, Male Air | 1 | (.1875)(Component of | 46-862914T11) | |||||
| 15 | 10-4000331 | SCREW, (M6 x 30) | 2 | |||||||
| 16 | 865143T | BRACKET, Sea Water Pump | 1 | |||||||
| 17 | 10-4000331 | SCREW, (M6 x 30) | 1 | |||||||
| 18 | 862351T | PULLEY | 1 | |||||||
| 19 | 16-863853 | STUD | 2 | |||||||
| 20 | 11-82671112 | NUT, (.375-16) | 2 | |||||||
| 21 | 10-32132 | SCREW, (.375-16 x 1.750) | 1 | |||||||
| 22 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 1 |
