MX 6.2L MPI HORIZON MIE - Serial 0W390000 Thru 0W689999 - Fuel Supply Module

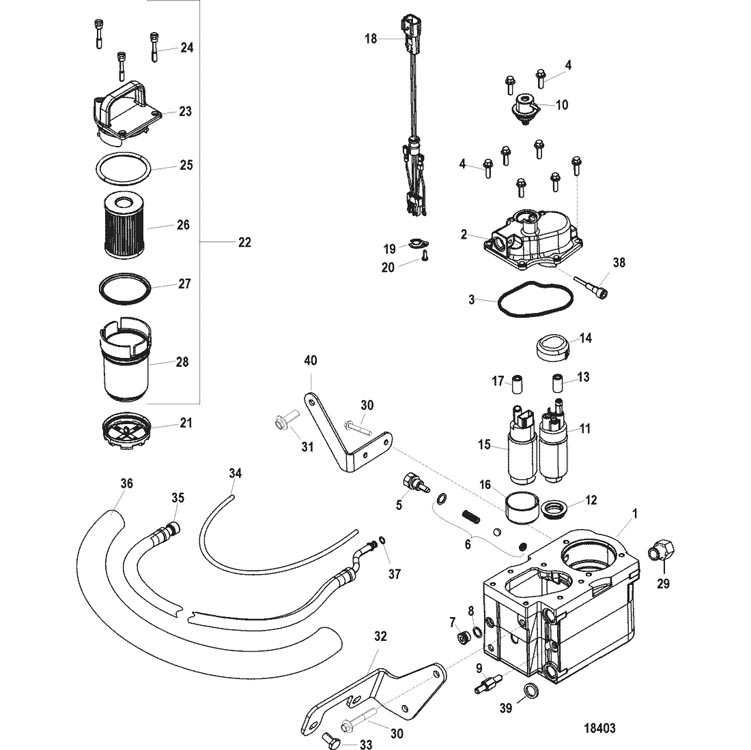

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components(Digital Throttle and Shift)
- Electrical Components(Mechanical Throttle and Shift)
- Exhaust Manifold and Elbow
- Exhaust Risers
- Front Cover and Circulating Pump
- Fuel Supply Module
- Gasket Set Components (27-861246A05), Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
- Throttle Body(Digital Throttle and Shift)
- Throttle Body(Mechanical)
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 864650A05 | MODULE KIT, Fuel Pump, Complete | 1 | This Part is No Longer Available | |||||
| 1 | 892664T01 | HOUSING, Fuel Module | 1 | 892664 | This Part is No Longer Available | ||||
| 2 | 892677 | COVER, Fuel Module Housing | 1 | ||||||
| 3 | 26-892683 | SEAL | 1 | ||||||
| 4 | 10-892684 | SCREW | 8 | ||||||
| 5 | 892670A01 | CHECK VALVE KIT | 1 | ||||||
| 6 | NSS | NOT SOLD SEPARATE, CHECK VALVE | 1 | This Part is not sold separately | |||||
| 7 | NSS | NOT SOLD SEPARATE, PLUG | 1 | This Part is not sold separately | |||||
| 8 | NSS | NOT SOLD SEPARATE, SEAL | 1 | This Part is not sold separately | |||||
| 9 | 16-865326 | STUD, (M8 x 30) | 1 | ||||||
| 10 | 892681 | 676-9-33211 | REGULATOR | 1 | |||||
| 11 | 866170A01 | PUMP ASSEMBLY, Fuel - Low Pressure | 1 | ||||||
| 12 | NSS | NOT SOLD SEPARATE, SEAL | 1 | This Part is not sold separately 6 | |||||
| 13 | NSS | NOT SOLD SEPARATE, SEAL | 1 | This Part is not sold separately 6 | |||||
| 14 | NSS | NOT SOLD SEPARATE, ISOLATOR, Lift Pump | 1 | This Part is not sold separately 6 | |||||
| 15 | 866169T01 | PUMP ASSEMBLY, Fuel - High Pressure | 1 | 866169A01 | |||||
| 16 | NSS | NOT SOLD SEPARATE, ISOLATOR | 1 | This Part is not sold separately 6 | |||||
| 17 | NSS | NOT SOLD SEPARATE, SEAL | 1 | This Part is not sold separately 6 | |||||
| 18 | 84-8M0056175 | HARNESS ASSEMBLY | 1 | 84-895013A02 | |||||
| 19 | NSS | NOT SOLD SEPARATE, RETAINER | 1 | This Part is not sold separately | |||||
| 20 | NSS | NOT SOLD SEPARATE, SCREW | 1 | This Part is not sold separately | |||||
| 21 | 35-892665 | FILTER | 1 | ||||||
| 22 | 892687A02 | CARTRIDGE ASSEMBLY, Fuel Filter | 1 | ||||||
| 23 | NSS | NOT SOLD SEPARATE, CAP, Fuel Filter Cartridge | 1 | This Part is not sold separately | |||||
| 24 | NSS | NOT SOLD SEPARATE, SCREW | 3 | This Part is not sold separately | |||||
| 25 | NSS | NOT SOLD SEPARATE, SEAL | 1 | This Part is not sold separately 6 | |||||
| 26 | 35-866171A01 | 676-9-37827 | FILTER | 1 | |||||
| 27 | NSS | NOT SOLD SEPARATE, SEAL | 1 | This Part is not sold separately 6 | |||||
| 28 | NSS | NOT SOLD SEPARATE, CUP, Fuel Filter Cartridge | 1 | This Part is not sold separately | |||||
| 29 | 22-88517 | FITTING, Reducing | 1 | ||||||
| 30 | 10-4010720 | SCREW, (M8 x 20) | 4 | ||||||
| 31 | 10-4010820 | SCREW, (M10 x 20) Hex Flange - Stainless Steel | 1 | ||||||
| 32 | 864458 | BRACKET | 1 | ||||||
| 33 | 10-40001195 | SCREW, (M10 x 30) | 2 | ||||||
| 34 | 32-8M0063567 | HOSE, (58.00 Inches Bulk) | 1 | 32-80617382 | |||||
| 35 | 32-865257A03 | HOSE, Fuel | 1 | 32-865257002 | |||||
| 36 | NSS | NOT SOLD SEPARATE, Insulator Sleeve | 1 | This Part is not sold separately | |||||
| 37 | 26-863151 | SEAL, Quad Ring | 1 | ||||||
| 38 | 10-866114 | SCREW, (.250-28) Special | 1 | ||||||
| 39 | 25-865363 | O-RING | 4 | ||||||
| 40 | 864459 | BRACKET | 1 |
