MX 6.2L MPI HORIZON MIE - Serial 0W390000 Thru 0W689999 - Intake Manifold and Fuel Rail

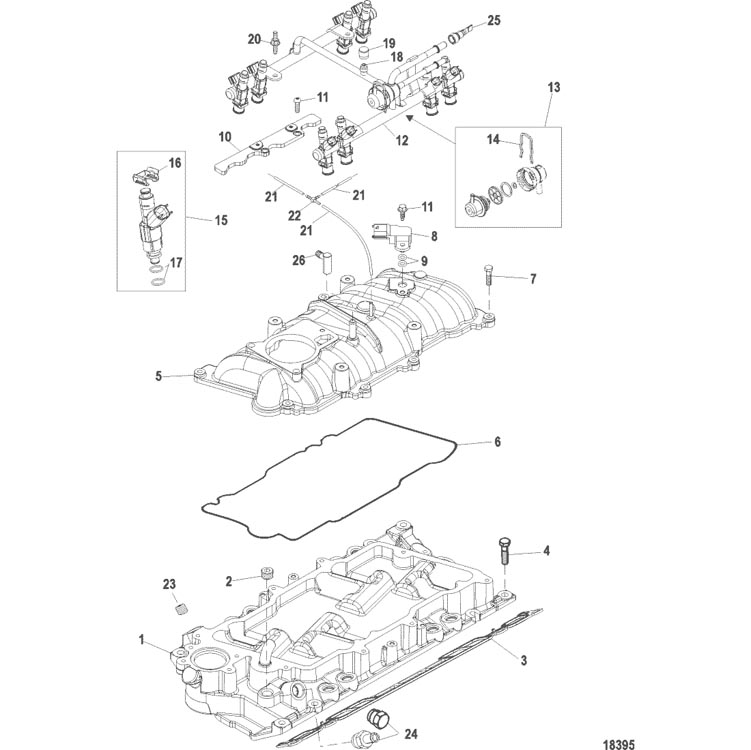

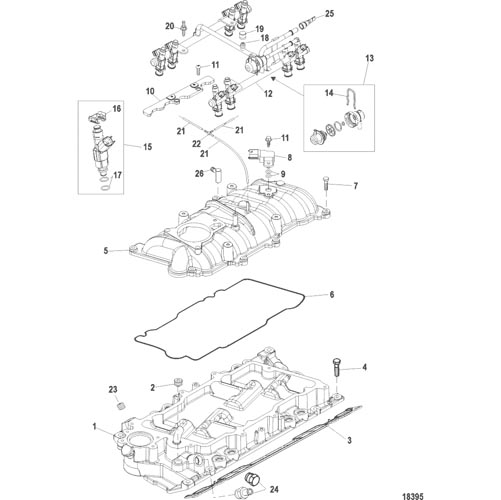

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components(Digital Throttle and Shift)
- Electrical Components(Mechanical Throttle and Shift)
- Exhaust Manifold and Elbow
- Exhaust Risers
- Front Cover and Circulating Pump
- Fuel Supply Module
- Gasket Set Components (27-861246A05), Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
- Throttle Body(Digital Throttle and Shift)
- Throttle Body(Mechanical)
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0104793 | MANIFOLD, Intake, Lower | 1 | 885164 | |||||
| 2 | 22-12524 | PLUG, (.375-18 x .475) Brass | 1 | ||||||
| 3 | 27-807473A1 | GASKET SET, Intake Manifold | 1 | ||||||
| 4 | 10-808010 | SCREW, (.312-18 x 1.375) | 8 | ||||||
| 5 | 885167 | MANIFOLD, Intake, Upper | 1 | ||||||
| 6 | 27-885168 | GASKET, Intake Manifold | 1 | ||||||
| 7 | 10-885166 | SCREW | 13 | ||||||
| 8 | 885165 | SENSOR, Manifold Air Pressure and Temperature | 1 | ||||||
| 9 | 25-881733 | SEAL | 2 | ||||||
| 10 | NSS | NOT SOLD SEPARATE, Bracket (Component Of 885164) | 1 | ||||||
| 11 | 10-885180 | SCREW | 4 | ||||||
| 12 | 8M0070997 | FUEL RAIL ASSEMBLY | 1 | 885173 | |||||
| 13 | 885174 | REGULATOR, Fuel Pressure | 1 | ||||||
| 14 | 885175 | CLIP, Fuel Pressure Regulator Retaining | 1 | ||||||
| 15 | 885176 | 676-9-33102 | INJECTOR | 8 | |||||
| 16 | 885177 | RETAINER, Injector | 1 | ||||||
| 17 | 25-892609 | O-RING KIT, Ring Kit | 1 | ||||||
| 18 | 885178 | VALVE, Fuel Pressure Service | 1 | ||||||
| 19 | 885179 | CAP, Fuel Pressure Service Valve | 1 | ||||||
| 20 | 10-885180 | SCREW | 4 | ||||||
| 21 | 32-8M0063567 | HOSE, (58.00 Inches Bulk) (Cut to Appropriate Length) | 2 | 80617382 | |||||
| 22 | 22-806689 | FITTING, Tee | 1 | ||||||
| 23 | 22-384071 | PLUG, Pipe (.500) | 1 | 37372 | |||||
| 24 | 22-863426 | FITTING, EGR Plug | 1 | ||||||
| 24 | 22-866157 | PLUG, EGR Port | 1 | ||||||
| 25 | 22-8623601 | PLUG, Fuel Rail Block Off | 1 | ||||||
| 26 | 22-863432T | FITTING, 90 Degree Vent | 1 | 863432 |
