MX 6.2L MPI HORIZON MIE - Serial 0W390000 Thru 0W689999 - Exhaust Risers

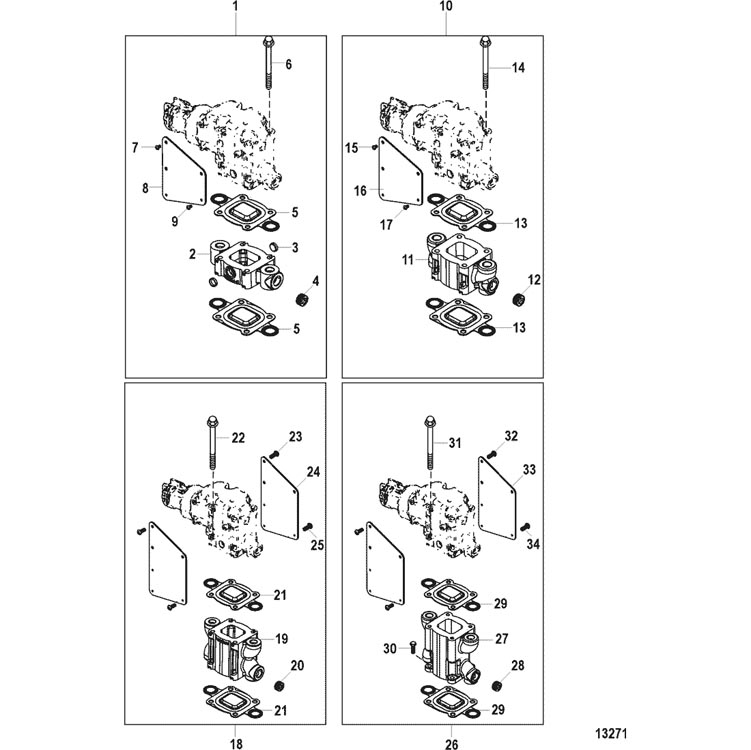

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components(Digital Throttle and Shift)
- Electrical Components(Mechanical Throttle and Shift)
- Exhaust Manifold and Elbow
- Exhaust Risers
- Front Cover and Circulating Pump
- Fuel Supply Module
- Gasket Set Components (27-861246A05), Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
- Throttle Body(Digital Throttle and Shift)
- Throttle Body(Mechanical)
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Air Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-865995A01 | RISER EXTENSION KIT 1.7 Inch | (Standard Cooling) | 1 | |
| 1 | 0000 | OEM: 525-865996A01 | RISER EXTENSION KIT 1.7 Inch | (Closed Cooling) | 1 | |
| 2 | NSS | NOT SOLD SEPARATE 1.7 Inch Riser | 2 | |||
| 3 | 0019 | OEM: 525-19-864689 | PLUG Expansion | 2 | ||
| 4 | 0022 | OEM: 525-22-428611, Sierra: 676-18-4265 | FITTING Pipe - Brass (.750-14) | 2 | ||
| 5 | 0027 | OEM: 530-864850A02, Sierra: 676-18-0722 | GASKET Restrictor | 2 | ||
| 5 | 0027 | OEM: 530-864549A02, Sierra: 676-18-0720 | GASKET Block Off | 2 | ||
| 5 | 0027 | OEM: 530-864547A02, Sierra: 676-18-0721 | GASKET Full Flow | 2 | ||
| 6 | 0010 | OEM: 525-10-865982071 | SCREW (.375-16 x 9.250) | 8 | ||
| 7 | 0010 | OEM: 525-10-860008, GLM: 700-22375 | SCREW (.250-20 x .625) Torx | 1 | ||
| 8 | 0000 | OEM: 525-863714T01, GLM: 700-50017 | BRACKET | 1 | ||
| 9 | 0010 | OEM: 525-10-864378 | SCREW (.250-20 x .375) Torx | 1 | ||
| 10 | 0000 | OEM: 525-864929A3 | RISER EXTENSION KIT 3.0 Inch | (Standard Cooling) | 1 | |
| 10 | 0000 | OEM: 525-864929A4 | RISER EXTENSION KIT 3.0 Inch | (Closed Cooling) | 1 | |
| 11 | NSS | NOT SOLD SEPARATE 3 Inch Riser | 2 | |||
| 12 | 0022 | OEM: 525-22-428611, Sierra: 676-18-4265 | FITTING Pipe - Brass (.750-14) | 2 | ||
| 13 | 0027 | OEM: 530-864850A02, Sierra: 676-18-0722 | GASKET Restrictor | 2 | ||
| 13 | 0027 | OEM: 530-864549A02, Sierra: 676-18-0720 | GASKET Block Off | 2 | ||
| 13 | 0027 | OEM: 530-864547A02, Sierra: 676-18-0721 | GASKET Full Flow | 2 | ||
| 14 | 0010 | OEM: 525-10-865982077 | SCREW (.375-16 x 10.500) | 8 | ||
| 15 | 0010 | OEM: 525-10-860008, GLM: 700-22375 | SCREW (.250-20 x .625) Torx | 1 | ||
| 16 | 0000 | OEM: 525-863714T01, GLM: 700-50017 | BRACKET | 1 | ||
| 17 | 0010 | OEM: 525-10-864378 | SCREW (.250-20 x .375) Torx | 1 | ||
| 18 | 0000 | OEM: 525-866208A02 | RISER EXTENSION KIT 4.7 Inch | (Standard Cooling) | 1 | |
| 18 | 0000 | OEM: 525-866208A03 | RISER EXTENSION KIT 4.7 Inch | (Closed Cooling) | 1 | |
| 19 | NSS | NOT SOLD SEPARATE 4.7 Inch Riser | 2 | |||
| 20 | 0022 | OEM: 525-22-428611, Sierra: 676-18-4265 | FITTING Pipe - Brass (.750-14) | 2 | ||
| 21 | 0027 | OEM: 530-864850A02, Sierra: 676-18-0722 | GASKET Restrictor | 2 | ||
| 21 | 0027 | OEM: 530-864549A02, Sierra: 676-18-0720 | GASKET Block Off | 2 | ||
| 21 | 0027 | OEM: 530-864547A02, Sierra: 676-18-0721 | GASKET Full Flow | 2 | ||
| 22 | 0010 | OEM: 525-10-865982092 | SCREW (.375-16 x 12.380) | 8 | ||
| 23 | 0010 | OEM: 525-10-860008, GLM: 700-22375 | SCREW (.250-20 x .625) Torx | 6 | ||
| 24 | 0000 | OEM: 525-863715T01, GLM: 700-50018 | BRACKET | 2 | ||
| 25 | 0010 | OEM: 525-10-864378 | SCREW (.250-20 x .375) Torx | 1 | ||
| 26 | 0000 | OEM: 525-864908A1 | RISER EXTENSION KIT 6.0 Inch | (Standard Cooling) | 1 | |
| 26 | 0000 | OEM: 525-864908A2 | RISER EXTENSION KIT 6.0 Inch | (Closed Cooling) | 1 | |
| 27 | NSS | NOT SOLD SEPARATE 6 Inch Riser | 2 | |||
| 28 | 0022 | OEM: 525-22-428611, Sierra: 676-18-4265 | FITTING Pipe - Brass (.750-14) | 2 | ||
| 29 | 0027 | OEM: 530-864850A02, Sierra: 676-18-0722 | GASKET Restrictor | 2 | ||
| 29 | 0027 | OEM: 530-864549A02, Sierra: 676-18-0720 | GASKET Block Off | 2 | ||
| 29 | 0027 | OEM: 530-864547A02, Sierra: 676-18-0721 | GASKET Full Flow | 2 | ||
| 30 | 0010 | OEM: 525-10-865982005 | SCREW (.375-16 x 1.00) | 8 | ||
| 31 | 0010 | OEM: 525-10-865982057 | SCREW (.375-16 x 7.50) | 8 | ||
| 32 | 0010 | OEM: 525-10-860008, GLM: 700-22375 | SCREW (.250-20 x .625) Torx | 6 | ||
| 33 | 0000 | OEM: 525-863715T01, GLM: 700-50018 | BRACKET | 2 | ||
| 34 | 0010 | OEM: 525-10-864378 | SCREW (.250-20 x .375) Torx | 1 |
