200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Cylinder Head

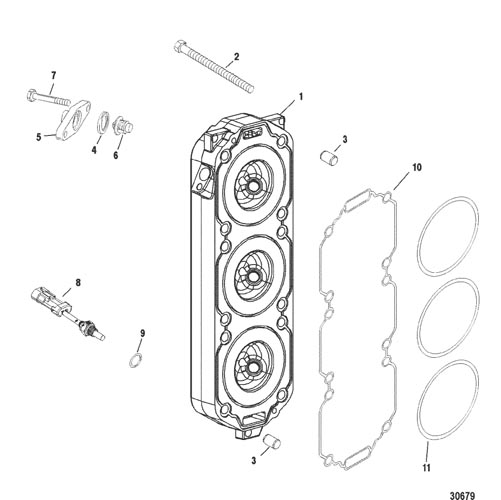

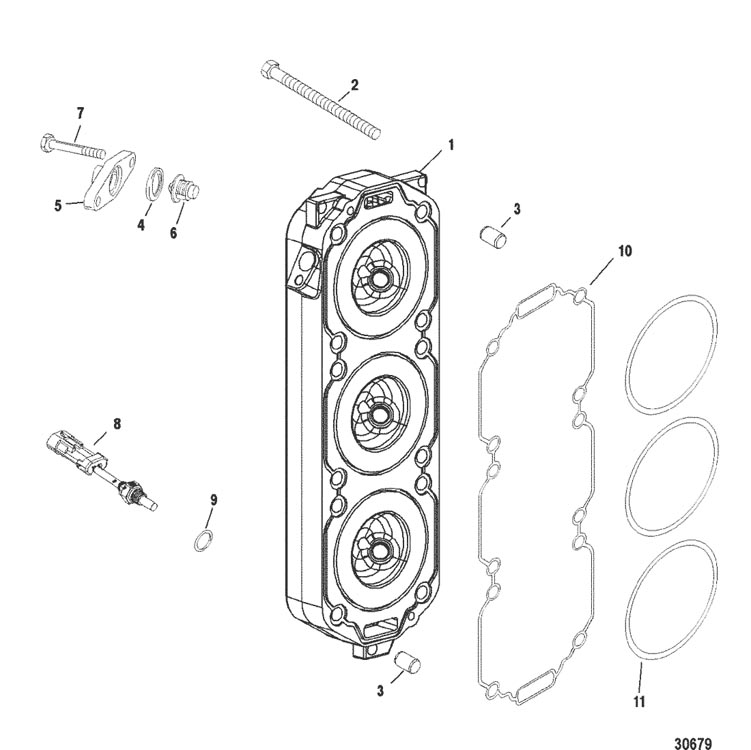

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 840285T1         CYLINDER HEAD 1
1 840286T1         CYLINDER HEAD 1
2 10-878217         SCREW, (.375-16 x 2.750) 24
3 17-63779         PIN, Dowel (.250 x .625) 4
4 27-62386001         GASKET 2 62386
5 8M0039353         COVER 2 8307372
6 833072003         THERMOSTAT, 62° Celsius (143° Fahrenheit) 2 833072
7 10-82130025         SCREW, (M6 x 25) 4
8 889575         SENSOR ASSEMBLY, Temperature 2 858535
9 25-627021         O-RING, (.301 x .070) 2
10 8584521         SEAL 2
11 8597721         SEAL 6
- 27-881805A01         GASKET SET, Engine 1
- 61-883201A01         POWERHEAD ASSEMBLY 1   No Longer Available
