200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Throttle Lever And Shift Shaft

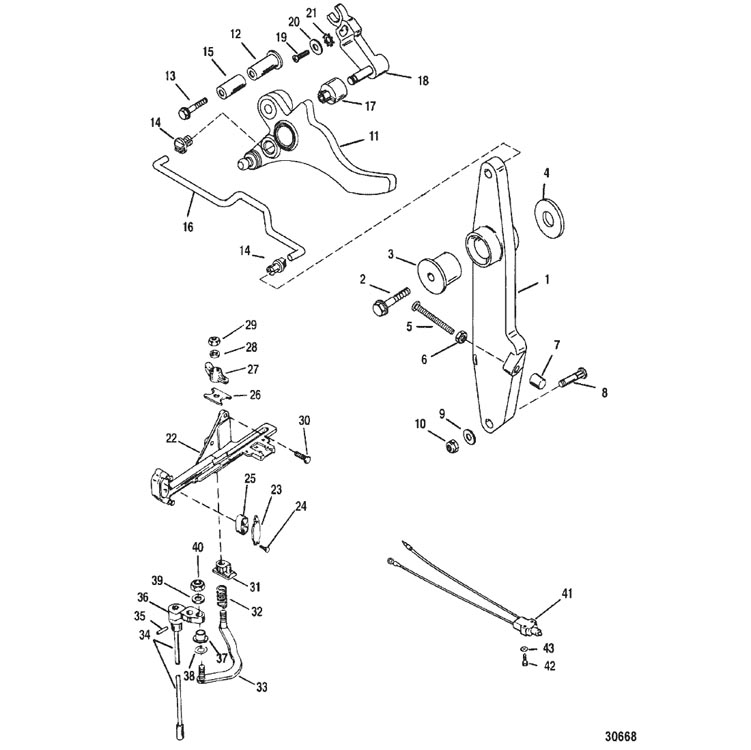

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler
- Air Handler Components
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gear Housing(Driveshaft)(Std/Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Standard Rotation)(Sportmaster)
- Gear Housing, Driveshaft - Torquemaster
- Gear Housing, Propeller Shaft - Torquemaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Oil Lines
- Power Trim Components
- Speedometer Pickup-Torquemaster
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever And Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0040990 | LEVER, Throttle Control | 1 | 8503891 | |||||
| 2 | 10-818165 | SCREW, (.375-16 x 1.75) | 1 | ||||||
| 3 | 23-55164 | BUSHING | 1 | ||||||
| 4 | 23-858959 | SPACER | 1 | ||||||
| 5 | 10-64022 | SCREW, (.250-20 x 2.125) | 1 | ||||||
| 6 | 11-64015 | NUT, (.250-20) | 1 | ||||||
| 7 | 26852 | CAP, Nylon | 1 | ||||||
| 8 | 42927 | INSERT | 1 | ||||||
| 9 | 12-35459 | WASHER | 1 | ||||||
| 10 | 11-401386 | NUT, (M6) Stainless Steel | 1 | ||||||
| 11 | 8562211 | CAM | 1 | ||||||
| 12 | 23-856895 | BUSHING | 1 | ||||||
| 13 | 10-81893440 | SCREW, (M8 x 40) | 1 | ||||||
| 14 | 23-932481 | BUSHING | 2 | ||||||
| 15 | 30-856896 | BEARING | 1 | No Longer Available | |||||
| 16 | 8508152 | ROD | 1 | ||||||
| 17 | 677483 | ROLLER | 1 | No Longer Available | |||||
| 18 | 850286A03 | LEVER | 1 | No Longer Available | |||||
| 19 | 10-40056107 | SCREW, (M5 x 16) | 1 | ||||||
| 20 | 12-89302 | WASHER, (.203 x .406 x .040) | 1 | ||||||
| 21 | 13-69432 | LOCKWASHER, External (#10) | 1 | ||||||
| 22 | 814283T6 | BRACKET ASSEMBLY, Anchor | 1 | ||||||
| 23 | 98889 | LATCH | 1 | ||||||
| 24 | 10-42975 | DRIVE SCREW | 2 | ||||||
| 25 | 39519 | CUP | 1 | ||||||
| 26 | 52100 | WEAR PLATE | 1 | ||||||
| 27 | 8M0036768 | LATCH | 1 | 38279 | |||||
| 28 | 12-69056 | WASHER, (.255 x .620 x .030) Stainless Steel | 1 | ||||||
| 29 | 11-826709109 | NUT, (.250-28) Stainless Steel | 1 | ||||||
| 30 | 10-28782 | SCREW, (.312-18 x .880) Stainless Steel | 3 | ||||||
| 31 | 814284 | GUIDE BLOCK | 1 | ||||||
| 32 | 24-20099 | SPRING | 1 | ||||||
| 33 | 67073A1 | LINK ROD ASSEMBLY | 1 | ||||||
| 34 | 79932A16 | SHIFT SHAFT ASSEMBLY | 1 | ||||||
| 34 | 79932A18 | SHIFT SHAFT ASSEMBLY | 1 | ||||||
| 35 | 17-24800 | PIN | 1 | ||||||
| 36 | NSS | SHIFT SHAFT LEVER, Upper | 1 | Not Sold Separate | |||||
| 37 | 23-26856 | BUSHING | 1 | ||||||
| 38 | 13-29720 | WAVE WASHER | 1 | ||||||
| 39 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 1 | ||||||
| 40 | 11-826709109 | NUT, (.250-28) Stainless Steel | 1 | ||||||
| 41 | 87-8M0052931 | SWITCH | 1 | 814281A2 | |||||
| 42 | 10-77478 | SCREW, (#6-32 x .875) | 2 | ||||||
| 43 | 12-27882 | WASHER | 2 |
