200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Water Hoses

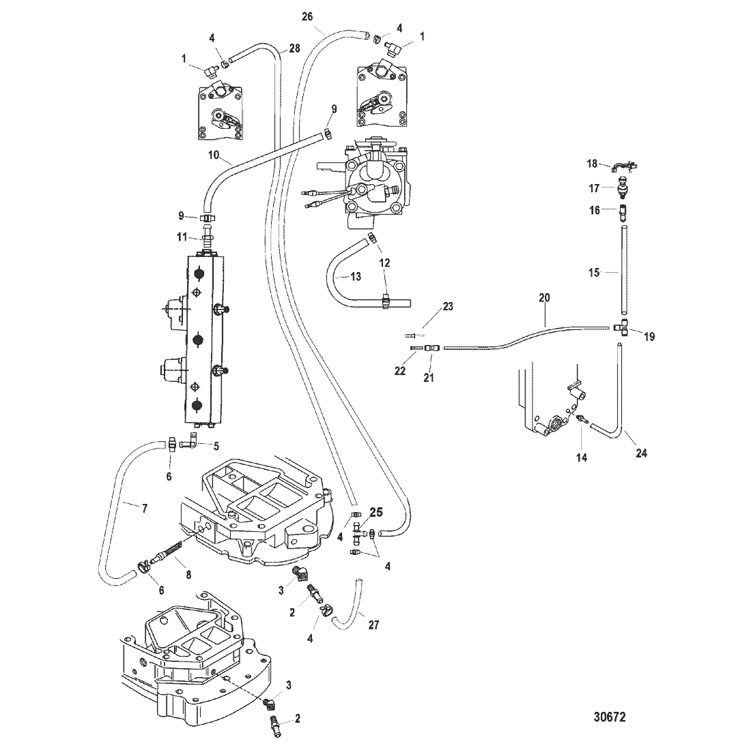

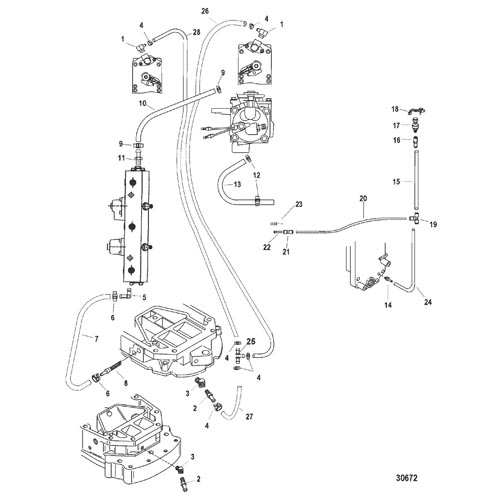

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler
- Air Handler Components
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gear Housing(Driveshaft)(Std/Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Standard Rotation)(Sportmaster)
- Gear Housing, Driveshaft - Torquemaster
- Gear Housing, Propeller Shaft - Torquemaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Oil Lines
- Power Trim Components
- Speedometer Pickup-Torquemaster
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever And Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-687271 | FITTING, (.250-18) 90 Degree - Brass | 2 | ||||||
| 2 | 22-89772 | CONNECTOR, (.125-27) | 1 | ||||||
| 3 | 22-29085 | FITTING, Elbow (45 Degree) | 1 | ||||||
| 4 | 54-816311T | TIE STRAP, (8.00 Inches) | 6 | ||||||
| 5 | 22-996642 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon | 1 | ||||||
| 6 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 7 | 32-85833939 | TUBING, (15.00 Inches Bulk) (Cut to 7 IN.) | 1 | 85833935 | |||||
| 8 | 35-8348084 | STRAINER | 1 | ||||||
| 9 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 10 | 32-85833939 | TUBING, (15.00 Inches Bulk) (Cut to 4-1/2 IN.) | 1 | 85833935 | |||||
| 11 | 22-291112 | FITTING | 1 | ||||||
| 12 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 13 | 32-83476463 | TUBING, (32.00 Inches Bulk) (Cut to 18-1/2 IN.) | 1 | ||||||
| 14 | 22-881866 | FITTING | 1 | 859432 | |||||
| 15 | 32-85978571 | TUBING, (44.00 Inches Bulk) (Cut to 15 IN.)(GRAY) | 1 | 85978568 | |||||
| 16 | 22-892403 | FITTING | 1 | 859431 | |||||
| 17 | 881879A7 | SENSOR KIT, (0-50 PSI) (TAN) | 1 | ||||||
| 18 | 54-858954 | CLIP, (.625) | 1 | ||||||
| 19 | 22-875207 | TEE, Fitting | 1 | ||||||
| 20 | 32-85978571 | TUBING, (44.00 Inches Bulk) (Cut to 44 IN.)(GRAY) | 1 | 85978568 | |||||
| 21 | 22-859747 | COUPLER | 1 | ||||||
| 22 | 22-859732 | PLUG | 1 | ||||||
| 23 | 22-859731 | FITTING, Adapter | 1 | ||||||
| 24 | 32-85978571 | TUBING, (44.00 Inches Bulk) (Cut to 5 IN.)(GRAY) | 1 | 85978568 | |||||
| 25 | 22-858459 | FITTING | 1 | ||||||
| 26 | 2-77653101 | HOSE, (48.00 Inches Bulk) (Cut to 23-1/2 IN.) | 1 | ||||||
| 27 | 32-8276021 | MOLDED HOSE | 1 | ||||||
| 27 | 32-77653101 | HOSE, (48.00 Inches Bulk) (Cut to 5 IN.) | 1 | ||||||
| 28 | 32-77653101 | HOSE, (48.00 Inches Bulk) (Cut to 17-1/2 IN.) | 1 | ||||||
| - | 61-883201A01 | POWERHEAD ASSEMBLY | 1 | No Longer Available |
