200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Gear Housing(Prop Shaft)(Counter Rotation)(Sportmaster)

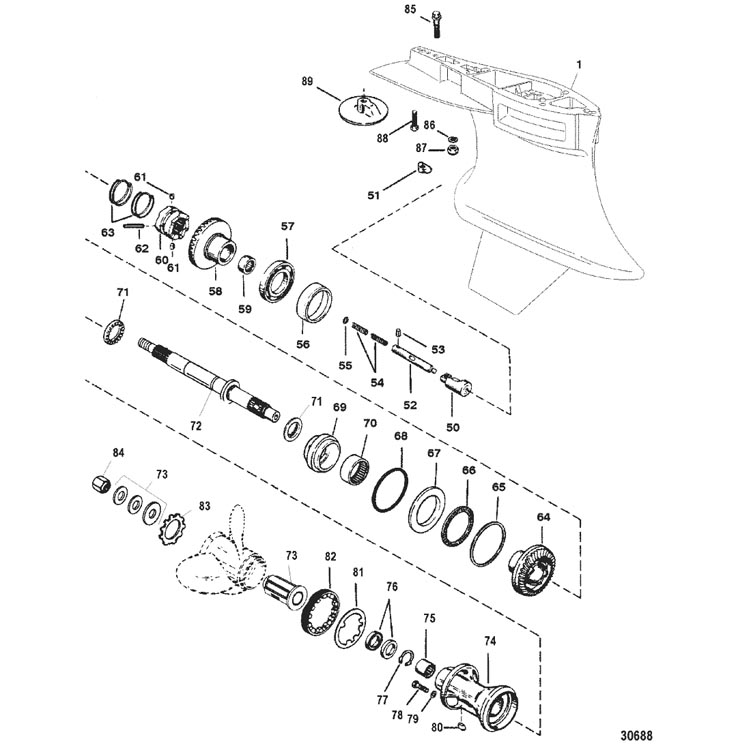

Section Drawing: (Hover or click to view larger)

Untitled Document
Note: THE BASIC GEAR HOUSING LISTED IS GENERIC. IT DOES NOT INCLUDE STUDS.
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1687-840561T69         GEAR HOUSING ASSEMBLY, Complete 1
- 1687-840561T70         GEAR HOUSING ASSEMBLY, Complete 1
1 1687-8M0084203         GEAR HOUSING ASSEMBLY, Basic 1 849781A2
50 89594A1         FOLLOWER ASSEMBLY 1
51 789562         SHIFT CAM 1
52 79911A1         ROD 1
53 17-8M0084245         PIN 1 78906
54 24-79910         SPRING 2
55 12-78910         WASHER AR
56 14469T         CUP, Bearing 1
57 30-88957T         BEARING, Ball 1
58 NSS         Reverse Gear 1   Not Sold Separate
59 31-15844         BEARING ASSEMBLY, Roller 1
60 52-42672T         RATCHET 1
61 17-78909         PIN, Detent 2
62 17-42671         PIN, Cross 1
63 24-78962         SPRING 2
64 43-15845A2         GEAR SET 1
65 23-176151         SPACER SHIM, (.125) AR
65 23-176152         SPACER SHIM, (.127) AR
65 23-176153         SPACER SHIM, (.129) AR
65 23-176154         SPACER SHIM, (.131) AR
65 23-176155         SPACER SHIM, (.133) AR
65 23-176156         SPACER SHIM, (.135) AR
65 23-176157         SPACER SHIM, (.137) AR
65 23-176158         SPACER SHIM, (.139) AR
65 23-176159         SPACER SHIM, (.141) AR
65 23-1761510         SPACER SHIM, (.143) AR
65 23-1761511         SPACER SHIM, (.145) AR
65 23-1761512         SPACER SHIM, (.147) AR
65 23-1761513         SPACER SHIM, (.149) AR
66 31-15841         BEARING, Roller 1
67 12-17616         THRUST RING 1
68 25-31534         O-RING 1
69 15838A2         ADAPTOR ASSEMBLY, Bearing 1
70 31-15843T         BEARING, Needle 1
71 31-15834         BEARING, Thrust 2
72 44-840450A03         PROPELLLER SHAFT 1 840450A2
73 840389K06         HUB KIT 1 840389K5
- 840382A02         SNUBBER STRIP KIT 1 840382A1
74 847616T1         CARRIER, Bearing 1
75 31-817072         BEARING, Roller 1
76 26-815565         SEAL, Oil 2
77 53-817071         RING, Snap 1
78 22-8M0058389         FITTING KIT, Magnetic, Plug Fill/Drain 1 67892A1
79 12-191833         WASHER 1 191832
80 28-30281         KEY 1
81 14-79447         TAB WASHER 1
82 158401         COVER 1
83 13-423511         LOCKWASHER, Toothed 1
84 11-52707Q1         PROP NUT KIT, (.750-16) 1
85 10-41350         SCREW, (.437-14 x 2.50) Stainless Steel 1
86 12-822836         WASHER, (.445 x .805 x .108) 2
87 11-859116         NUT, (.437-20) 2
88 10-30206         SCREW, (.375-16 x 1.00) Stainless Steel 1
89 76214T3         ANODE 1
- 26-89238A3         SEAL KIT, Gear Housing 1
- 56-59579         STUD KIT 1   No Longer Available
