200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Oil Lines

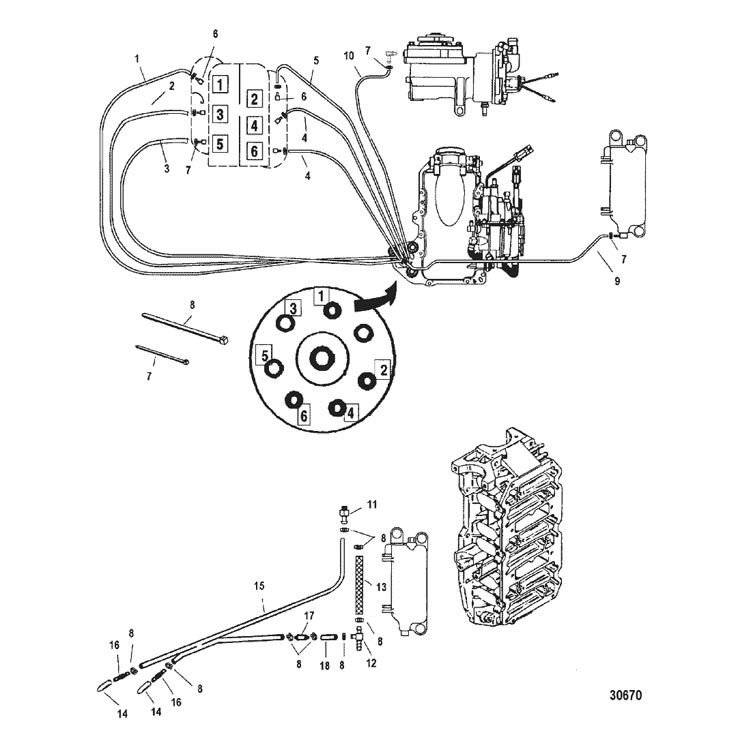

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-8M0054152         TUBING, (38.00 Inches Bulk) (Cut to 24 IN.) 1 85606065
2 32-8M0054152         TUBING, (38.00 Inches Bulk) (Cut to 18-1/2 IN.) 1 85606065
3 32-8M0054152         TUBING, (38.00 Inches Bulk) (Cut to 15-1/2 IN.) 1 85606065
4 32-8M0054152         TUBING, (38.00 Inches Bulk) (Cut to 24-1/2 IN.) 2 85606065
5 32-8M0054152         TUBING, (38.00 Inches Bulk) (Cut to 27 IN.) 1 85606065
6 21-858805         CHECK VALVE 6
7 69355         TIE STRAP, (5.50 Inches) AR
8 54-816311T         TIE STRAP, (8.00 Inches) AR
9 32-82381455         TUBING, (25.00 Inches Bulk) (Cut to 24 IN.) 1
10 32-8M0054213         TUBING, (40.00 Inches Bulk) (Cut to 32 IN.) 1 32-85583466
11 21-8781051         CHECK VALVE 1
12 22-424254         FITTING 1
13 32-8M0108355         HOSE, (57.00 Inches Bulk) (Cut to 6 IN.) 1 830756109
14 NSS         Cap 2   Not Sold Separate
15 32-875289         HOSE 1
16 22-858955         CONNECTOR 2
17 35-875284T01         FILTER, In Line 1 875284
18 32-875283         HOSE, (2.00 Inches) 1
- 61-883201A01         POWERHEAD ASSEMBLY 1   No Longer Available
