2.5XS 2.5L DFI - Serial 0T997974 Thru 1E000796 - Air Handler Components/Flywheel Cover

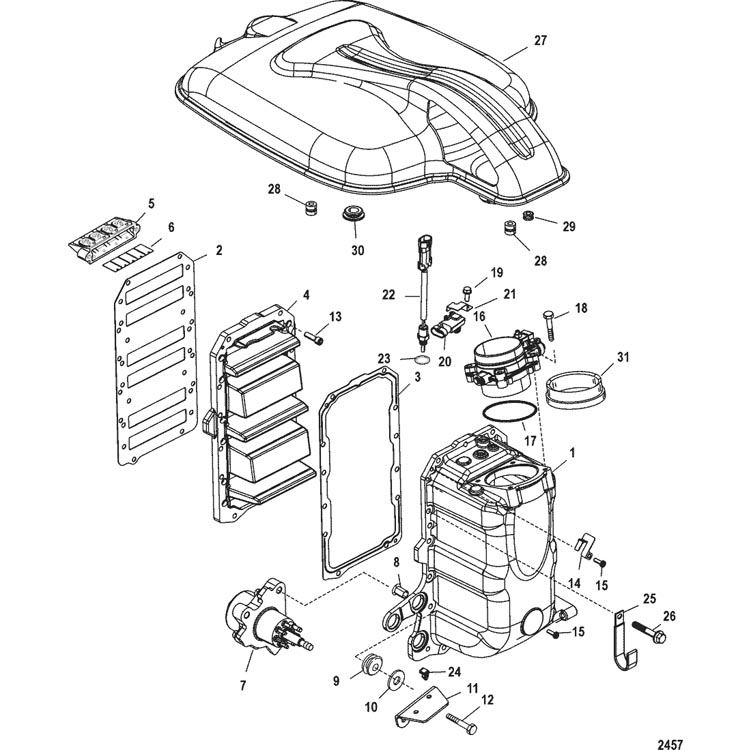

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
0 855633T31         AIR HANDLER ASSEMBLY 1 855633T24 No Longer Available
1 858708T02         PLENUM KIT, Air 1
2 27-840484         GASKET 1
3 27-840485         GASKET 1
4 843228A01         ADAPTOR PLATE KIT 1
5 840805T03         REED BLOCK ASSEMBLY 6
6 34-843223A01         REED PETAL KIT 1
7 8M0101629         PUMP ASSEMBLY, Oil 1 857149T2
8 23-855364         BUSHING 3
9 25-855362001         GROMMET 3
10 12-817274         WASHER, (.344 x 1.00 x .063) Stainless Steel 3
11 891529         BRACKET 1
12 10-81893430         SCREW, (M8 x 30) 3
13 10-55715         SCREW, (.250-20 x .880) 12
14 54-891527         CLIP 1
15 10-883942         SCREW, (M4 x 16) 2
16 883312T01         THROTTLE BODY KIT 1
17 25-855423         O-RING 1
18 10-82130040         SCREW, (M6 x 40) 4
19 10-1993716         SCREW, (M6 x 16) 1
20 854445         SENSOR, MAP 1
21 884522         BRACKET, MAP Sensor 1
22 885342002         SENSOR ASSEMBLY 1 885342001
23 25-896699         O-RING, (.351 x .072) 1 888814
24 54-879962         CLIP 3
25 54-883080         J CLIP 2
26 10-817504         SCREW, (.250-20 x 1.500) Stainless Steel 12
27 843182T01         COVER, Flywheel 1
28 25-840525         GROMMET 2
29 25-20116         GROMMET 1
30 25-842775         GROMMET 1   No Longer Available
31 25-855613         GROMMET 1
- 27-843151A05         GASKET SET 1   No Longer Available
