2.5XS 2.5L DFI - Serial 0T997974 Thru 1E000796 - Air Hoses

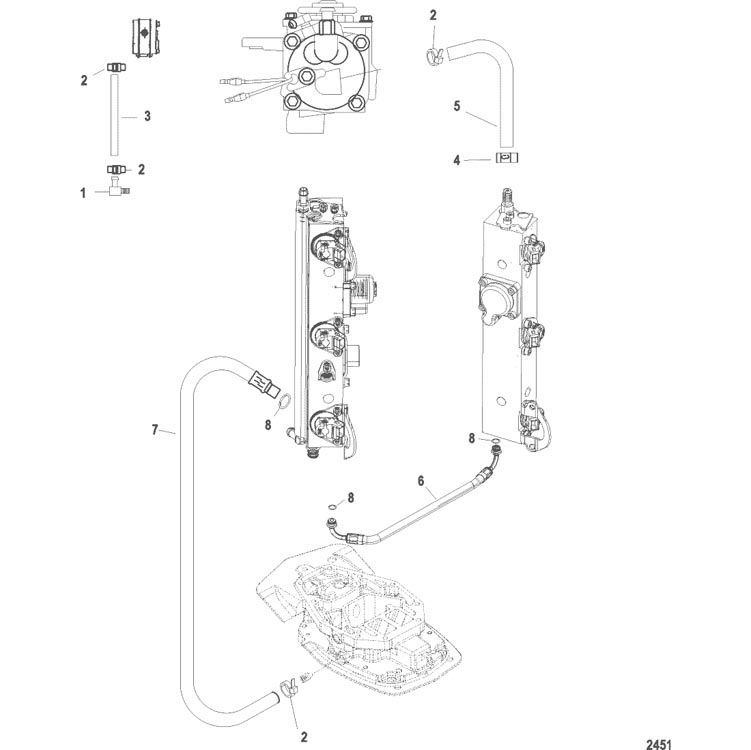

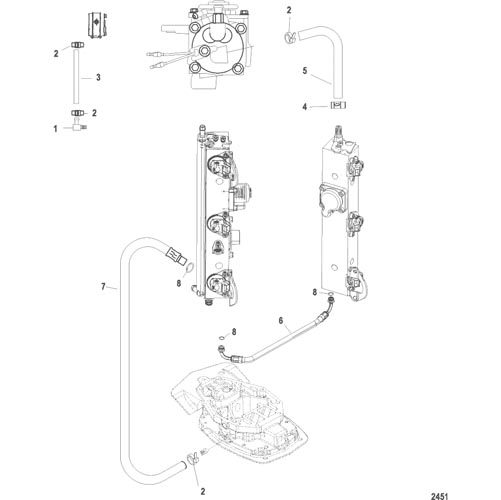

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 22-996642         FITTING, Elbow 90 Degree (.125-27 x .250) Nylon 1
2 54-816311T         TIE STRAP, (8.00 Inches) AR
3 32-8M0108349         TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches) 1 830757130
4 54-856880         CLAMP, Hose (15.3) 2
5 32-8502512         HOSE 1
6 32-804823001         HOSE, Air Balance (13.00 Inches), Air Balance 1
7 32-804824         HOSE/FITTING ASSEMBLY, Air By-Pass 1
8 804532         O-RING KIT 1
- 61-841125T02         POWERHEAD ASSEMBLY 1
