2.5XS 2.5L DFI - Serial 0T997974 Thru 1E000796 - Cylinder Block and End Caps

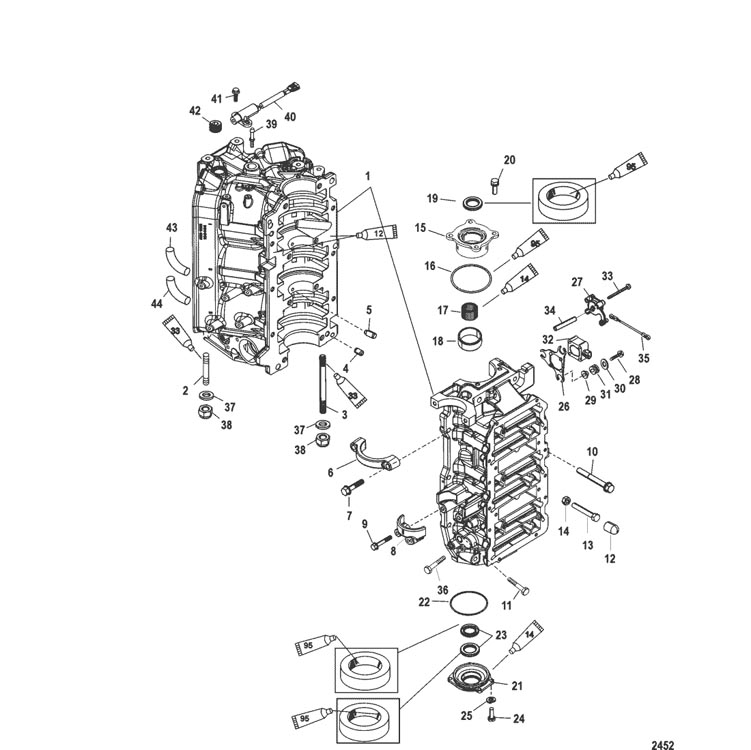

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler Components/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head/Exhaust Divider Plate
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gear Housing(Driveshaft) Standard Rotation-Sportmaster
- Gear Housing(Driveshaft-Torque Master)
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oil Injection Components
- Oil Lines
- Power Trim Components
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 884-858961T32 | CYLINDER BLOCK ASSEMBLY | 1 | No Longer Available | |||||
| 2 | 16-8M0034430 | STUD, (.375-16/.375-24 x2.490) (2-1/2 IN.) | 8 | 847529 | |||||
| 3 | 16-76175 | STUD (.375 x 1.88) | 2 | ||||||
| 4 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) | 2 | ||||||
| 5 | 17-8M0036405 | PIN (BEARING RACE) | 2 | 67296 | |||||
| 6 | 8M0041759 | BRACKET | 1 | 8569662 | |||||
| 7 | 10-828213 | SCREW, (.312-18 x 1.500) Hex Flange | 2 | ||||||
| 8 | 76867 | COVER (Bottom) | 1 | ||||||
| 9 | 10-828214 | SCREW, (.312-18 x 2.00) Hex Flange | 2 | ||||||
| 10 | 10-66717 | SCREW, (.375-16 x 3.250) | 8 | ||||||
| 11 | 10-74824 | SCREW, (.312-18 x 1.250) | 6 | ||||||
| 12 | 26852 | CAP, Nylon | 1 | ||||||
| 13 | 10-856832 | SCREW, (.250-20 x 1.750) | 1 | ||||||
| 14 | 11-64015 | NUT, (.250-20) | 1 | ||||||
| 15 | 1159-832760T1 | END CAP ASSEMBLY | 1 | ||||||
| 16 | 25-54029 | O-RING, (2.800 x .103) | 1 | ||||||
| 17 | 31-16756A4 | BEARING KIT | 1 | ||||||
| 18 | NSS | 1 | Not Sold Separate | ||||||
| 19 | 26-41953 | SEAL | 1 | ||||||
| 20 | 10-881190 | SCREW, (.312-18 x 1.00) | 4 | ||||||
| 21 | 1156-7809T1 | END CAP ASSEMBLY | 1 | ||||||
| 22 | 25-62700 | O-RING, (3.237 x .103) | 1 | ||||||
| 23 | 26-41953 | SEAL | 2 | ||||||
| 24 | 10-28636 | SCREW, (.250-20 x .750) | 4 | ||||||
| 25 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 4 | ||||||
| 26 | 8538821 | BRACKET, Throttle Position Indicator Mount | 1 | ||||||
| 27 | 851937A1 | LEVER ASSEMBLY, Throttle Position Indicator | 1 | No Longer Available | |||||
| 28 | 10-82130025 | SCREW, (M6 x 25) | 3 | ||||||
| 29 | 23-856954 | BUSHING | 3 | ||||||
| 30 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 31 | 25-834985 | GROMMET | 3 | ||||||
| 32 | 83295211 | INDICATOR, Throttle Position (INSIDE) | 1 | ||||||
| 33 | 10-8508281 | SCREW, (#10-32 x 2.00) | 3 | ||||||
| 34 | 23-843120 | SPACER | 3 | No Longer Available | |||||
| 35 | 8M0008117 | LINK ASSEMBLY | 1 | 878175 | |||||
| 36 | 10-81893414 | SCREW, (M8 x 14) | 1 | ||||||
| 37 | 12-822838 | WASHER, (.401 x .745 x .097) | 10 | ||||||
| 38 | 11-4013610 | NUT, (M10) Stainless Steel | 10 | ||||||
| 39 | 8215832 | PIN, Special (1.5 Inches) | 1 | ||||||
| 40 | 8M0082988 | SENSOR | 1 | 8283582 | |||||
| 41 | 10-40011107 | SCREW, (M5 x 16) Stainless Steel | 2 | ||||||
| 42 | 22-883048 | PLUG, (.500-14) | 1 | ||||||
| 43 | 32-8M0108355 | HOSE, (57.00 Inches Bulk) (Cut to 1-1/4 Inches) | 2 | 830756109 | |||||
| 44 | 32-8M0108355 | HOSE, (57.00 Inches Bulk) (Cut to 1-1/2 Inches) | 2 | 830756109 | |||||
| - | 61-841125T02 | POWERHEAD ASSEMBLY | 1 | ||||||
| - | 27-843151A05 | GASKET SET | 1 | No Longer Available |
