2.5XS 2.5L DFI - Serial 0T997974 Thru 1E000796 - Bottom Cowl

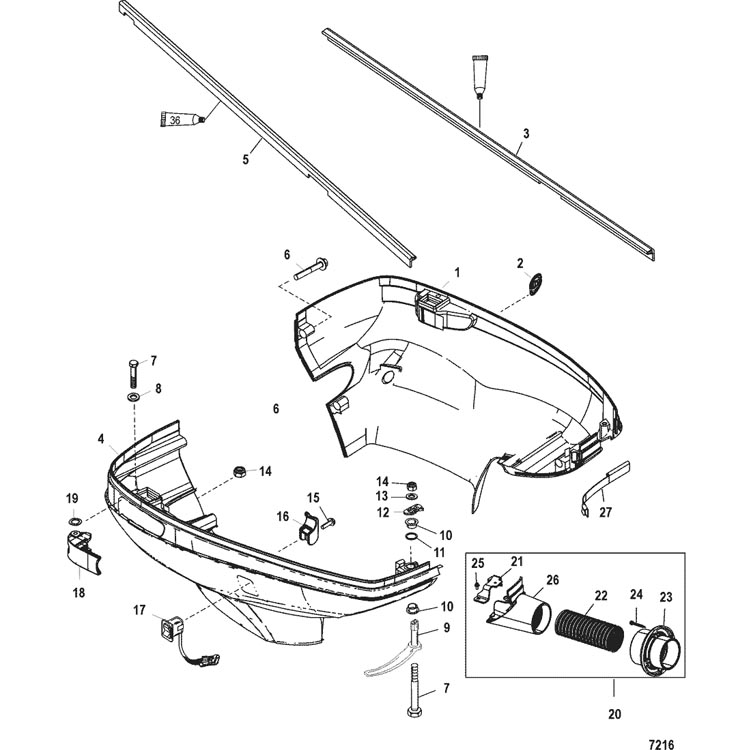

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler Components/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head/Exhaust Divider Plate
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gear Housing(Driveshaft) Standard Rotation-Sportmaster
- Gear Housing(Driveshaft-Torque Master)
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oil Injection Components
- Oil Lines
- Power Trim Components
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 113-850302A05 | BOTTOM COWL (Port) | 1 | No Longer Available | |||||
| 2 | 854367001 | PLUG | 1 | ||||||
| 3 | 844180001 | SEAL, Cowl (Port) | 1 | ||||||
| 4 | 113-850301A05 | BOTTOM COWL (Starboard) | 1 | ||||||
| 5 | 844180002 | SEAL, Cowl | 1 | ||||||
| 6 | 10-82130040 | SCREW, (M6 x 40) | 4 | ||||||
| 7 | 10-824868 | SCREW, (M6 x 75) | 3 | ||||||
| 8 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 9 | 8M0053903 | FRONT HANDLE | 1 | 850684F1 | |||||
| 10 | 23-335891 | BUSHING | 2 | ||||||
| 11 | 25-48462 | O-RING, (.614 x .070) | 1 | ||||||
| 12 | 8219423 | PAWL | 1 | ||||||
| 13 | 12-69057 | WASHER, (.281 x .734 x .063) | 1 | ||||||
| 14 | 11-401366 | NUT, (M6) Stainless Steel | 3 | ||||||
| 15 | 10-8214281 | SCREW, (#10-16 x .625) | 1 | ||||||
| 16 | 54-822873 | CLIP | 1 | ||||||
| 17 | 87-8M0042300 | SWITCH, Trim | 1 | 8569901 | |||||
| 18 | 850682A06 | HANDLE, Cowl | 2 | No Longer Available | |||||
| 19 | 13-29402 | WAVE WASHER | 2 | ||||||
| 20 | 32-842756T01 | RIGGING KIT | 1 | ||||||
| 21 | 842744002 | BRACKET | 1 | ||||||
| 22 | 32-842756005 | HOSE | 1 | 842756T05 | |||||
| 23 | 843174002 | COUPLER, Rigging | 1 | 843174T02 | |||||
| 24 | 10-47994 | SCREW, (#10 x 1.50) | 4 | ||||||
| 25 | 10-82130012 | SCREW, (M6 x 12) | 3 | ||||||
| 26 | 843185T02 | COUPLER | 1 | ||||||
| 27 | 891554 | CLIP, Seal | 1 |
