2.5XS 2.5L DFI - Serial 0T997974 Thru 1E000796 - Coil Plate Assembly

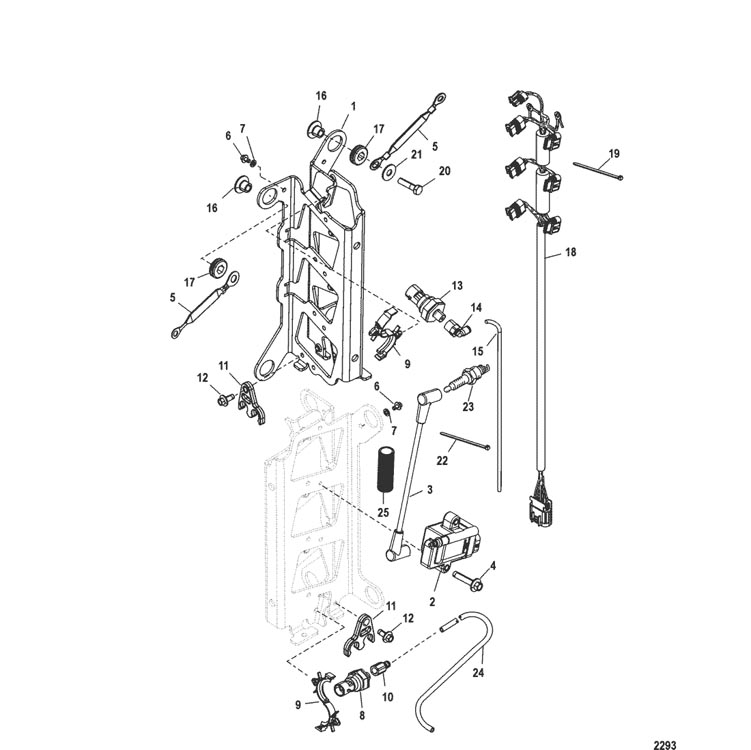

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler Components/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head/Exhaust Divider Plate
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gear Housing(Driveshaft) Standard Rotation-Sportmaster
- Gear Housing(Driveshaft-Torque Master)
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oil Injection Components
- Oil Lines
- Power Trim Components
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 0 | NSS | Coil Plate Assembly | 1 | Not Sold Separate | |||||
| 1 | 843238T | PLATE, Coil | 1 | ||||||
| 2 | 339-8M0077473 | COIL ASSEMBLY, Ignition | 6 | 883778A01 | |||||
| 3 | 84-884442A02 | HIGH TENSION LEADS | 1 | ||||||
| 4 | 10-82129130 | SCREW, (M6 x 30) | 12 | ||||||
| 5 | 84-858414A1 | CABLE ASSEMBLY, Braided | 2 | ||||||
| 6 | 10-82129110 | SCREW, (M6 x 10) | 2 | ||||||
| 7 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 8 | 881879A5 | SENSOR, Speedometer (0-200 PSI) | 1 | ||||||
| 0 | NSS | Decal-Sensor (0-200 PSIA) | 1 | Not Sold Separate | |||||
| 9 | 54-883066 | CLIP, (.865) (22MM) | 2 | ||||||
| 10 | 22-892403 | FITTING | 1 | ||||||
| 11 | 54-891525 | CLIP, Double | 2 | ||||||
| 12 | 10-82129114 | SCREW, (M6 x 14) | 2 | ||||||
| 13 | 881879A7 | SENSOR KIT, (0-50 PSI) | 1 | ||||||
| 0 | NSS | Decal-Sensor (0-50 PSIA) | 1 | Not Sold Separate | |||||
| 14 | 22-891533 | FITTING (90 Degree) | 1 | ||||||
| 15 | 32-85978571 | TUBING, (52.00 Inches Bulk) (Cut to 15-1/2 Inches) | 1 | ||||||
| 16 | 23-8502341 | BUSHING | 4 | ||||||
| 17 | 25-833155 | GROMMET | 4 | ||||||
| 18 | 84-888445A01 | HARNESS ASSEMBLY, Coil | 1 | ||||||
| 19 | 54-847509 | TIE STRAP, (7.50 Inches) | 2 | ||||||
| 20 | 10-60411 | SCREW, (.312-18 x 1.250) | 4 | ||||||
| 21 | 12-49436 | WASHER | 4 | ||||||
| 22 | 54-816311T | TIE STRAP, (8.00 Inches) | 1 | ||||||
| 23 | 33-843220Q | SPARK PLUG | 6 | 843220001 | |||||
| 24 | 32-85944975 | TUBING, (72.00 Inches Bulk) (Cut to 52 Inches) | 1 | ||||||
| 25 | 32-828547353 | CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk) | 1 |
