4.3L MPI ALPHA-BRAVO EC - 1A637496 and Up - Closed Cooling System (Alpha - Bravo) Sea Pump Hoses

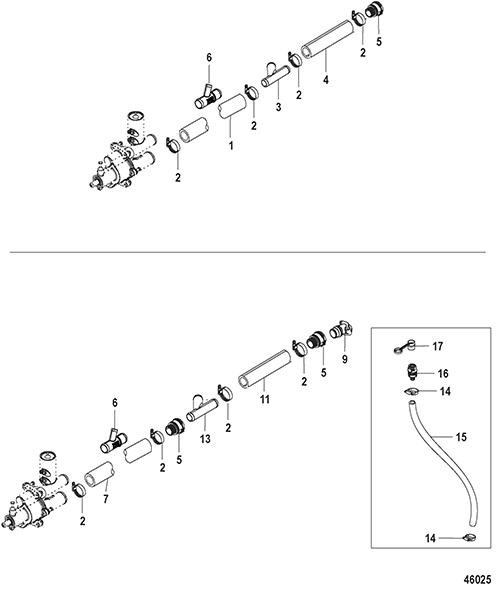

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0032 865672079 HOSE (96.00 Inches Bulk) Alpha (Cut to 31 Inches) 1
1 0032 OEM: 525-32-865672013 HOSE (4.00 Inches) Bravo 1
2 0054 OEM: 525-54-815504222 CLAMP Worm Gear (1.98 DIameter)   AR
3 0022 OEM: 525-22-864727 FITTING Y, (3) 1-1/4 In. OD Hose Barbs Bravo 1
4 0032 865672079 HOSE (96.00 Inches Bulk) Bravo (Cut to 20 Inches) 1
5 0022 OEM: 525-22-865324 QUICK CONNECT Bravo 1
6 0022 OEM: 525-22-864727 FITTING Y, (3) 1-1/4 In. OD Hose Barbs (If Required) 1
7 0032 865672079 HOSE (96.00 Inches Bulk) Seacore (Cut to 9 Inches) 1
8 0054 OEM: 525-54-815504222 CLAMP Worm Gear (1.98 DIameter)   AR
9 0022 OEM: 525-22-865324 QUICK CONNECT Seacore 1
10 0022 OEM: 525-22-8M4501756 FITTING Seacore 1
11 0054 OEM: 525-54-8M2001502 CLAMP Seacore 2
12 0032 OEM: 525-32-1743534 HOSE (14.5 Inches) Seacore 1
13 0022 OEM: 525-22-865324 QUICK CONNECT Seacore 1
14 0054 OEM: 525-54-815504212 CLAMP Worm Gear Seacore 2
15 0032 8M2019902 HOSE (42 Inches) Seacore 1
16 0022 OEM: 525-22-861406 SOCKET Seacore 1
17 0000 861427 CAP Seacore 1
