4.3L MPI ALPHA-BRAVO EC - 1A637496 and Up - Fuel Filter

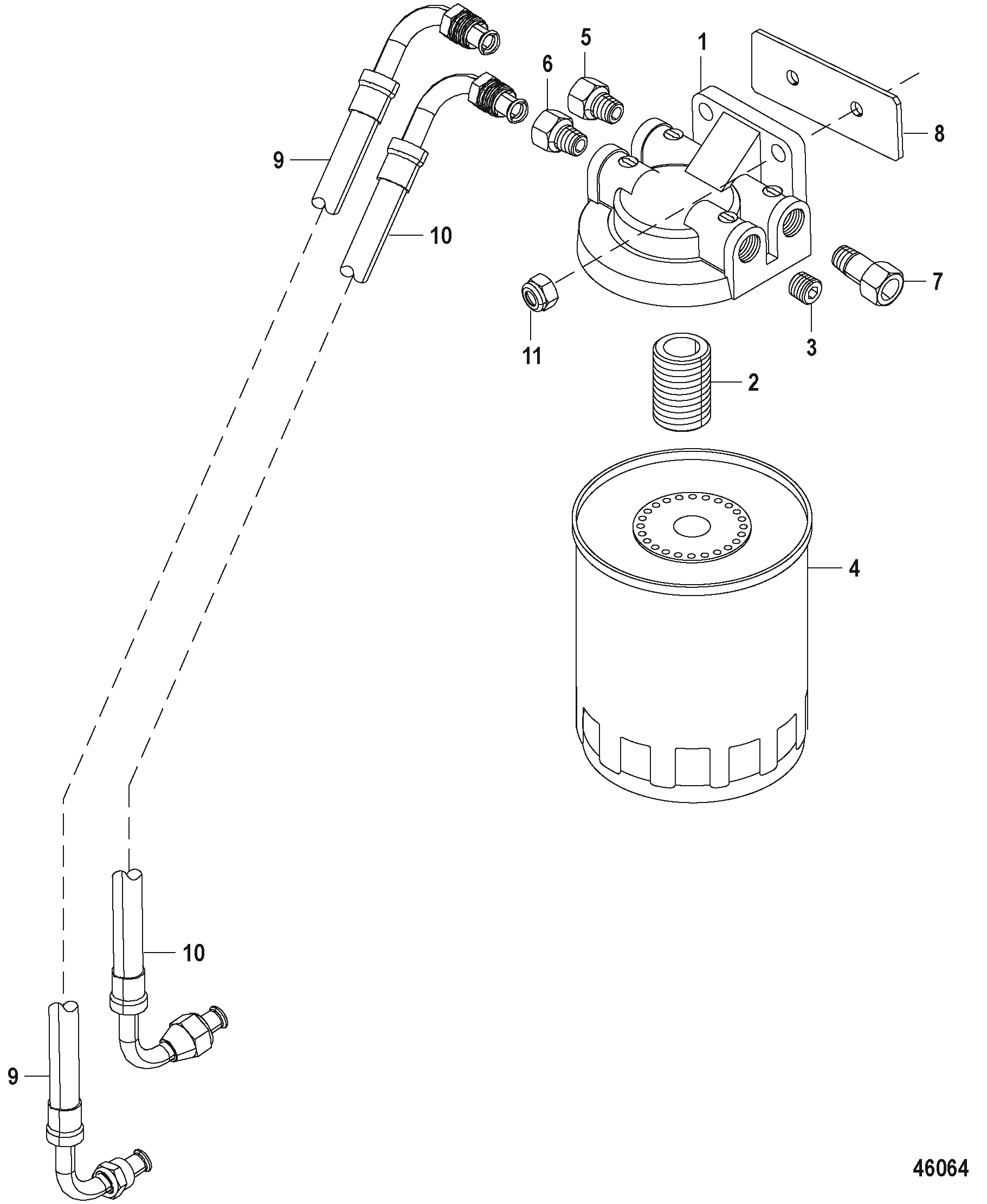

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-89876A3, Sierra: 676-18-7853-1, GLM: 700-25000 BASE ASSEMBLY Fuel Filter With Water Seperator   1
2 0022 OEM: 525-22-816133 FITTING   1
3 0022 OEM: 525-22-32561 PLUG Pipe - Allen Head (.250-18)   1
4 0035 OEM: 530-802893Q01, GLM: 700-24940 FILTER Fuel/Water Separating - Quicksilver Brand   1
4 0035 802893T FILTER Fuel/Water Separating - Mercury Brand   1 [1]
5 0022 OEM: 525-22-33821 CONNECTOR   1
6 0022 OEM: 525-22-808003 CONNECTOR   1
7 0022 OEM: 525-22-865907 FITTING (3/8-18) Inlet   1
8 0000 OEM: 525-88641 INSULATOR Back   1
9 0032 OEM: 525-32-8M0045997 LINE Fuel Fuel Regulator to Filter   1
10 0032 OEM: 525-32-8M0046000 LINE Fuel Fuel Pump to Filter   1
11 0011 OEM: 525-11-82670811 NUT (.312-24)   2

PART NOTES:

[1] - Alternate part numbers:

802893QQS

802893TMPP

807172Service Part
