4.3L MPI ALPHA-BRAVO EC - 1A637496 and Up - Closed Cooling System Hoses

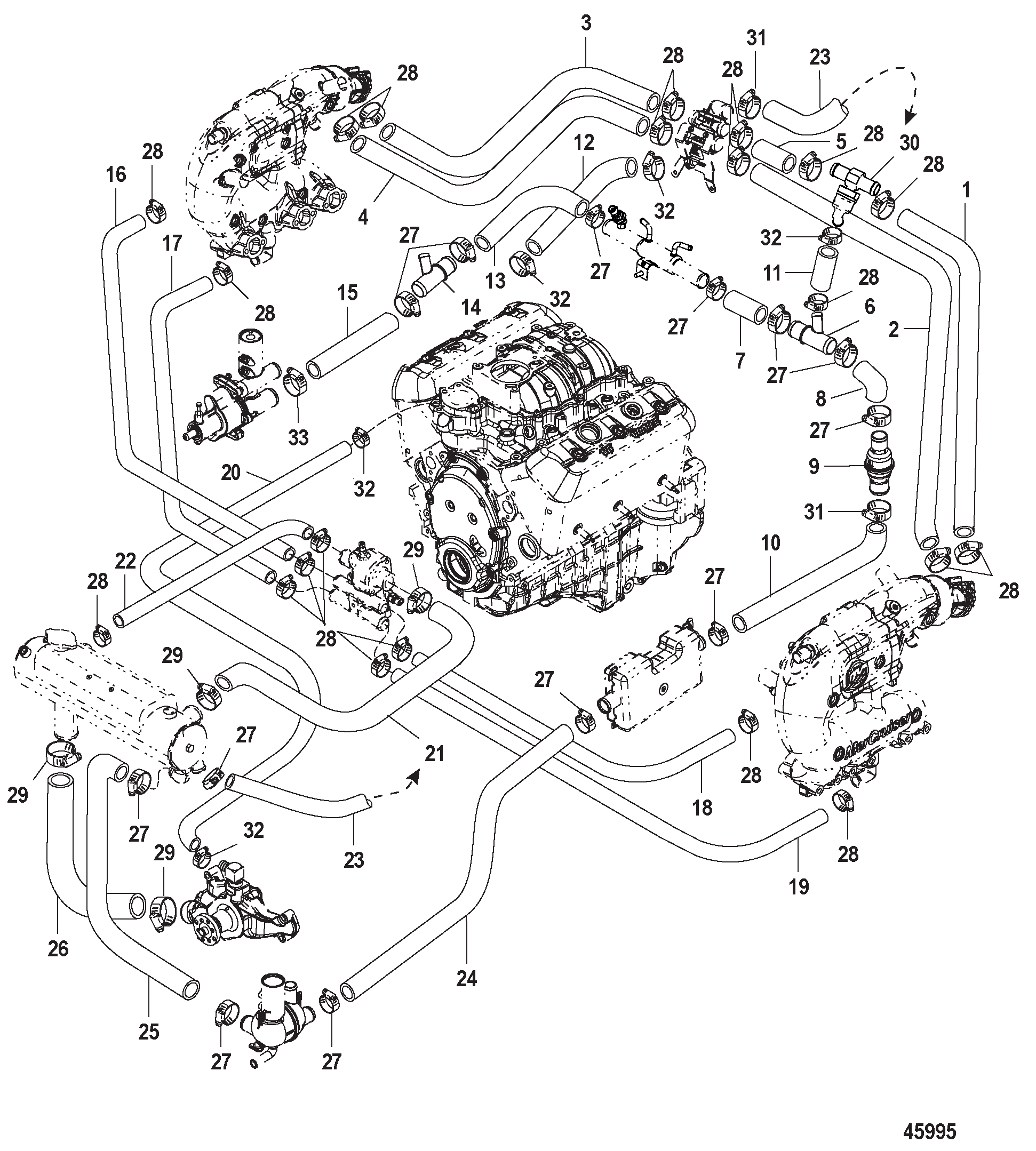

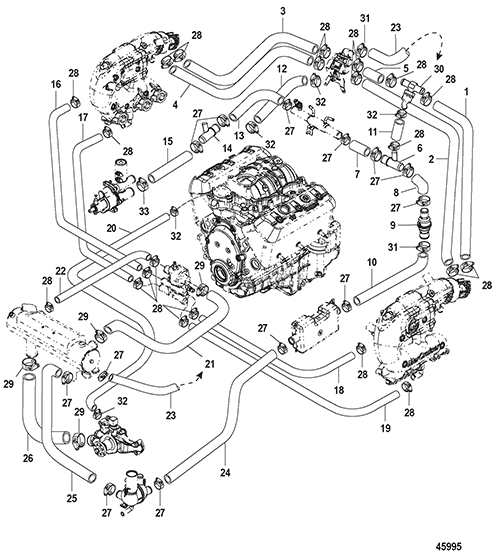

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System (Alpha - Bravo) Sea Pump Hoses
- Closed Cooling System Heat Exchanger
- Closed Cooling System Hoses
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A02) Engine Overhaul
- Gear Lube Monitor
- Harness Lifting Brackets and Mercathode
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit (98634A20)
- Oil Pan Oil Pump and Rear Oil Seal
- PCM and Electrical Components
- Pistons and Connecting Rods
- Poppet Valve Assembly Closed Cooling
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Shift Bracket Alpha
- Shift Bracket Bravo
- Standard Cooling Alpha Single Point (With Drain Plug)
- Standard Cooling Alpha Single Pt (With Handle) - Bravo 3 Pt
- Standard Cooling System (Bravo) Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing Closed Cooling
- Thermostat and Housing Standard Cooling
- Throttle Body
- Trim Pump and Motor Components
- Trim Pump Assembly
- Water Distribution Housing
- Water Drain Air Manifold and Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0032 | OEM: 525-32-8M2019984 | HOSE Fitting to Elbow | Port (No Rise) | 1 | |
| 1 | 0032 | OEM: 525-32-8M2020615 | HOSE Fitting to Elbow | Port (2 Inch Rise) | 1 | |
| 1 | 0032 | OEM: 525-32-8M2020619 | HOSE Fitting to Elbow | Port (4 Inch Rise) | 1 | |
| 1 | 0032 | OEM: 525-32-8M2020622 | HOSE Fitting to Elbow | Port (6 Inch Rise) | 1 | |
| 2 | 0032 | OEM: 525-32-8M2021624 | HOSE Poppet to Elbow | Port (0,2,4 Inch Rise) | 1 | |
| 2 | 0032 | OEM: 525-32-8M2020625 | HOSE Poppet to Elbow | Port (6 Inch Riser) | 1 | |
| 3 | 0032 | OEM: 525-32-8M2019985 | HOSE Poppet to Elbow, Top | Starboard (No Rise) | 1 | |
| 3 | 0032 | OEM: 525-32-8M2020616 | HOSE Poppet to Elbow, Top | Starboard (2 Inch Rise) | 1 | |
| 3 | 0032 | OEM: 525-32-8M2020620 | HOSE Poppet to Elbow, Top | Starboard (4 Inch Rise) | 1 | |
| 3 | 0032 | OEM: 525-32-8M2020623 | HOSE Poppet to Elbow, Top | Starboard (6 Inch Rise) | 1 | |
| 4 | 0032 | OEM: 525-32-8M2019986 | HOSE Poppet to Elbow, Bottom | Starboard (0,2,4 Inch Rise) | 1 | |
| 4 | 0032 | OEM: 525-32-8M2020626 | HOSE Poppet to Elbow, Bottom | Starboard (6 Inch Rise) | 1 | |
| 5 | 0032 | OEM: 525-32-8M2021810 | HOSE (3 Inches) Poppet to Fitting | 1 | ||
| 6 | 0022 | OEM: 525-22-8M2003728 | Y-FITTING | 1 | ||
| 7 | 0032 | OEM: 525-32-8M2004196 | HOSE Cooler to Fitting | 1 | ||
| 8 | 0032 | OEM: 525-32-8M2020274 | HOSE Fitting to Check Valve | 1 | ||
| 9 | 0021 | OEM: 525-21-864206A1 | CHECK VALVE ASSEMBLY | 1 | ||
| 10 | 0032 | OEM: 525-32-8M2020273 | HOSE Check Valve to Fuel Cooler | 1 | ||
| 11 | 0032 | OEM: 525-32-8M2020276 | HOSE Drain to Y-Fitting | 1 | ||
| 12 | 0032 | OEM: 525-32-8M2021039 | HOSE Drain | 1 | ||
| 13 | 0032 | OEM: 525-32-8M2020373 | HOSE Cooler to Fitting | 1 | ||
| 14 | 0022 | OEM: 525-22-862993 | FITTING Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb | 1 | ||
| 15 | 0032 | OEM: 525-32-8M2020943 | HOSE Sea Pump to Fitting | 1 | ||
| 16 | 0032 | OEM: 525-32-8M2018849 | HOSE Thermostat to Manifold | Starboard, Top (All Rise) | 1 | |
| 17 | 0032 | OEM: 525-32-8M2017413 | HOSE Thermostat to Manifold | Starboard, Bottom (All Rise) | 1 | |
| 18 | 0032 | OEM: 525-32-8M2018848 | HOSE Thermostat to Manifold | Port, Top (All Rise) | 1 | |
| 19 | 0032 | OEM: 525-32-8M2018020 | HOSE Thermostat to Manifold | Port, Bottom (All Rise) | 1 | |
| 20 | 0032 | OEM: 525-32-864551 | HOSE Intake to Circulation Pump | 1 | ||
| 21 | 0032 | OEM: 525-32-864506 | HOSE Thermostat to Heat Exchanger | 1 | ||
| 22 | 0032 | OEM: 525-32-864507 | HOSE Thermostat to Heat Exchanger | 1 | ||
| 23 | 0032 | OEM: 525-32-8M2019988 | HOSE Heat Exchanger to Poppet | 1 | ||
| 24 | 0032 | OEM: 525-32-863781 | HOSE Distribution Housing to Fuel Cooler | 1 | ||
| 25 | 0032 | OEM: 525-32-864431 | HOSE Heat Exchanger to Distribution Housing | 1 | ||
| 26 | 0032 | OEM: 525-32-8M2018850 | HOSE Heat Exchanger to Circulation Pump | 1 | ||
| 27 | 0054 | OEM: 525-54-815504222 | CLAMP Worm Gear (1.98 DIameter) | AR | ||
| 28 | 0054 | OEM: 525-54-815504216 | CLAMP Worm Gear (1.56 Diameter) | AR | ||
| 29 | 0054 | OEM: 525-54-815504232 | CLAMP Worm Gear (2.50 Diameter) | AR | ||
| 30 | 0022 | OEM: 525-22-8M2012295 | FITTING ASSEMBLY | 1 | ||
| 31 | 0054 | OEM: 525-54-815504228 | CLAMP Worm Gear | AR | ||
| 32 | 0054 | OEM: 525-54-815504212 | CLAMP Worm Gear | AR | ||
| 33 | 0054 | OEM: 525-54-815504224 | CLAMP Worm Gear | AR | ||
| NS | 0019 | 8079923 | COVER Clamp | AR |
