4.3L MPI ALPHA-BRAVO EC - 1A637496 and Up - PCM and Electrical Components

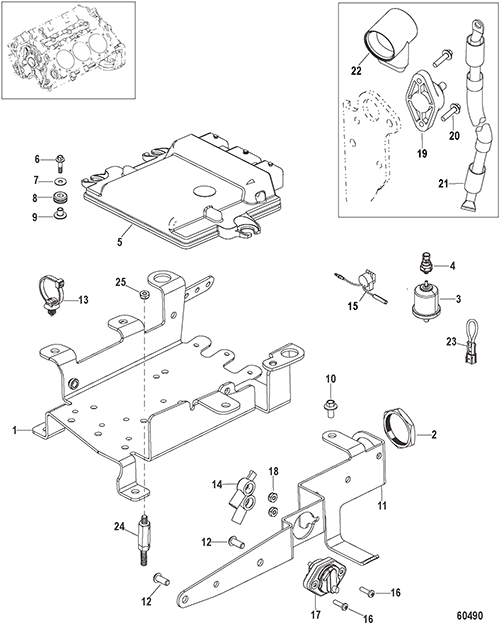

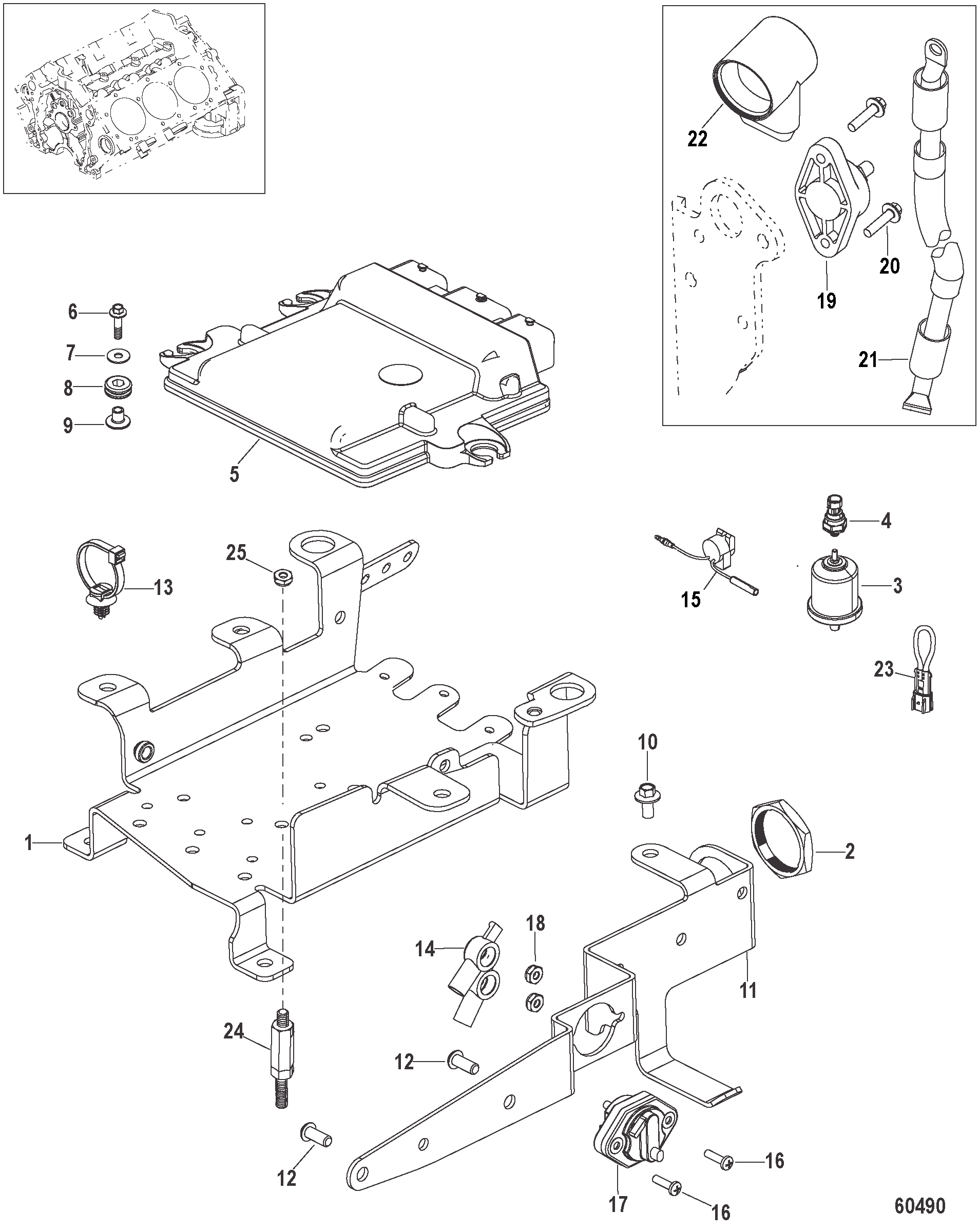

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System (Alpha - Bravo) Sea Pump Hoses
- Closed Cooling System Heat Exchanger
- Closed Cooling System Hoses
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A02) Engine Overhaul
- Gear Lube Monitor
- Harness Lifting Brackets and Mercathode
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit (98634A20)
- Oil Pan Oil Pump and Rear Oil Seal
- PCM and Electrical Components
- Pistons and Connecting Rods
- Poppet Valve Assembly Closed Cooling
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Shift Bracket Alpha
- Shift Bracket Bravo
- Standard Cooling Alpha Single Point (With Drain Plug)
- Standard Cooling Alpha Single Pt (With Handle) - Bravo 3 Pt
- Standard Cooling System (Bravo) Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing Closed Cooling
- Thermostat and Housing Standard Cooling
- Throttle Body
- Trim Pump and Motor Components
- Trim Pump Assembly
- Water Distribution Housing
- Water Drain Air Manifold and Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-8M0054010 | BRACKET Electrical | 1 | ||
| 2 | 0011 | OEM: 525-11-889664 | NUT (1.500-18) Black Nylon | 1 | ||
| 3 | 0000 | 815425T | SENDER ASSEMBLY Oil | 1 | ||
| 3 | 0000 | OEM: 525-37293T | SENDER ASSEMBLY Oil | (Dual Station) | 1 | |
| 4 | 0000 | 881879010 | SENSOR Pressure | (Power Steering Cooler) | 1 | |
| 4 | 0000 | OEM: 530-881879T11 | SENSOR Pressure (0 - 100 PSI) | (Oil) | 1 | |
| 5 | 0000 | OEM: 525-8M0054003 | PCM Propulsion Control Module | Standard Cooling, Alpha [1A648622] & Below | 1 | |
| 5 | 0078 | OEM: 525-78-8M0059347 | PCM Propulsion Control Module | Standard Cooling, Alpha [1A648623] THRU [2A446466] | 1 | |
| 5 | 0078 | 8M0099853 | PCM Propulsion Control Module | Standard Cooling, Alpha [2A446467] & Up | 1 | |
| 5 | 0000 | OEM: 525-8M0054004 | PCM Propulsion Control Module | Closed Cooling, Alpha [1A648622] & Below | 1 | |
| 5 | 0078 | OEM: 525-78-8M0059348 | PCM Propulsion Control Module | Closed Cooling, Alpha [1A648623] THRU [2A446466] | 1 | |
| 5 | 0078 | 8M0099854 | PCM Propulsion Control Module | Closed Cooling, Alpha [2A446467] & Up | 1 | |
| 5 | 0000 | OEM: 525-8M0054005 | PCM Propulsion Control Module | Standard Cooling, Bravo [1A648622] & Below | 1 | |
| 5 | 0078 | OEM: 525-78-8M0059349 | PCM Propulsion Control Module | Standard Cooling, Bravo [1A648623] THRU [2A446466] | 1 | |
| 5 | 0078 | 8M0099855 | PCM Propulsion Control Module | Standard Cooling, Bravo [2A446467] & Up | 1 | |
| 5 | 0000 | OEM: 525-8M0054006 | PCM Propulsion Control Module | Closed Cooling, Bravo [1A648622] & Below | 1 | |
| 5 | 0078 | OEM: 525-78-8M0059350 | PCM Propulsion Control Module | Closed Cooling, Bravo [1A648623] THRU [2A446466] | 1 | |
| 5 | 0078 | 8M0099856 | PCM Propulsion Control Module | Closed Cooling, Bravo [2A446467] & Up | 1 | |
| 5 | 0078 | 8M0109125 | PCM Propulsion Control Module | 180 HP [2A457710] & Up | 1 | |
| 6 | 0010 | OEM: 525-10-82130025 | SCREW (M6 x 25) | 3 | ||
| 7 | 0012 | OEM: 525-12-65567 | WASHER (.265 x .750 x .048) Stainless Steel | 3 | ||
| 8 | 0025 | OEM: 525-25-834985 | GROMMET | 3 | ||
| 9 | 0023 | OEM: 525-23-856954 | BUSHING | 3 | ||
| 10 | 0010 | OEM: 525-10-4010612 | SCREW (M6 x 12) Stainless Steel Circuit Breaker Bracket to PCM Bracket | 1 | ||
| 11 | 0000 | OEM: 525-8M0054011 | BRACKET Circuit Breaker | 1 | ||
| 12 | 0010 | OEM: 525-10-860008, GLM: 700-22375 | SCREW (.250-20 x .625) Torx | 2 | ||
| 13 | 0054 | OEM: 525-54-899145 | CLIP Tie Strap | AR | ||
| 14 | 0085 | OEM: 525-85-89919 | BOOT Insulator - Black | 2 | ||
| 15 | 0000 | OEM: 525-816492A15 | ALARM KIT | 1 | ||
| 16 | 0010 | OEM: 525-10-830861 | SCREW (#8-32 x .625) | [2A054617] & Below | 2 | |
| 16 | 0010 | 45862 | SCREW (#10-32 x .875) | [2A054618 ] & Up | 2 | |
| 17 | 0088 | 865827T | BREAKER Circuit - 50 Ampere Flag Reset | [2A054617] & Below | 1 | |
| 17 | 0088 | OEM: 530-11178A01 | BREAKER Circuit - 50 Ampere Button Reset | [2A054618 ] & Up | 1 | |
| 18 | 0011 | OEM: 525-11-826709106, GLM: 700-21163 | NUT (#10-32) Stainless Steel | [2A054617] & Below | 2 | |
| 18 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | [2A054618] & Up | 2 | |
| 19 | 0000 | OEM: 525-8M2017792 | STUD Hot (3/8-16) | 1 | ||
| 20 | 0010 | OEM: 525-10-82130025 | SCREW (M6 x 25) | 2 | ||
| 21 | 0084 | OEM: 525-84-8M0054620 | HARNESS Hot Stud | 1 | ||
| 22 | 0085 | 8M2019142 | INSULATOR | 1 | ||
| NS | 0054 | OEM: 525-54-8M2020527 | CLIP Hose | 1 | ||
| NS | 0010 | OEM: 525-10-4010612 | SCREW (M6 x 12) Stainless Steel | 1 | ||
| 23 | 0000 | OEM: 525-864337A1 | CONNECTOR Black | 1 | ||
| 24 | 0016 | 864287 | STUD (M6) | 1 | ||
| 25 | 0011 | OEM: 525-11-401366 | NUT (M6) Stainless Steel | 1 |
