4.3L MPI ALPHA-BRAVO EC - 1A637496 and Up - Harness Lifting Brackets and Mercathode

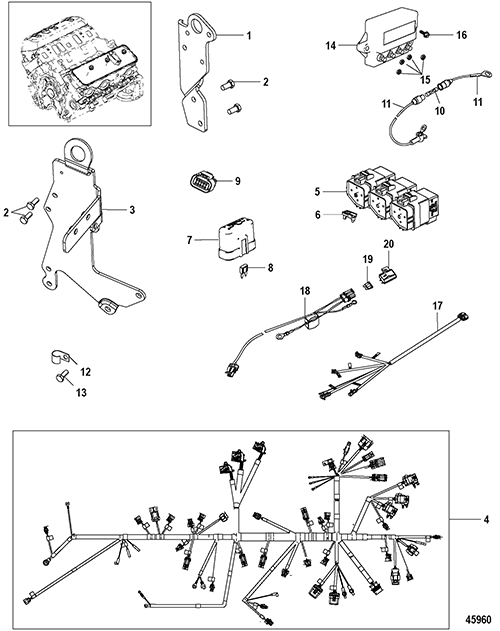

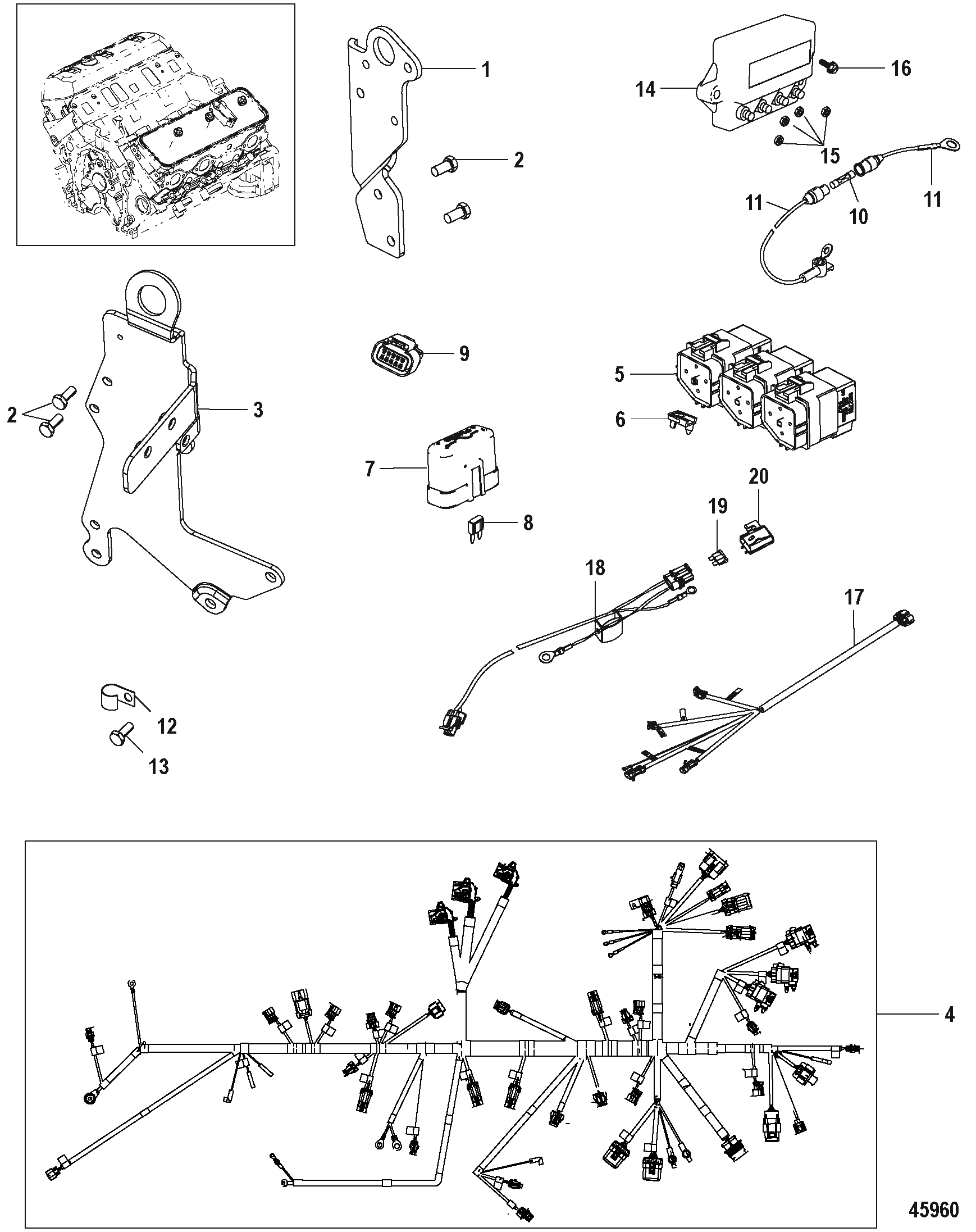

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-879172T32 BRACKET Lifting Eye, Rear   1
2 0010 OEM: 525-10-98261 SCREW (.375-16 x .750) Front Lifting Eye 7
2 0010 OEM: 525-10-98261 SCREW (.375-16 x .750) Rear Lifting Eye 2
2 0010 OEM: 525-10-34353 SCREW (.375-16 x 1.00) Rear Lifting Eye 2
3 0000 OEM: 525-8M0053837 BRACKET Lifting Eye Front   1
4 0084 8M0050945 HARNESS ASSEMBLY Engine   1
5 0000 OEM: 530-882751 RELAY   3
6 0086 OEM: 525-86-865205 CLIP   3
7 0000 OEM: 525-858754 COVER Fuse   2
8 0088 OEM: 525-88-83296910 FUSE Mini - Red - 10 Ampere   5
8 0088 OEM: 525-88-832969T15 FUSE Mini - Blue - 15 Ampere   2
8 0088 OEM: 525-88-8329692 FUSE Mini - Gray - 2 Ampere   1
8 0088 OEM: 525-88-832969T20 FUSE Mini - Yellow - 20 Ampere   3
9 0000 OEM: 525-859318T1 TERMINATOR 10 Pin (CAN 1 and 2)   1
10 0088 OEM: 525-88-79091 FUSE 20 Ampere   1
11 0084 OEM: 525-84-95084A9 CABLE ASSEMBLY (91.00 Inches) Red/Purple Strip   1
11 0084 OEM: 525-84-95084A10 CABLE ASSEMBLY (5.00 Inches) Red   1
12 0054 OEM: 525-54-92850 CLAMP Harness to Block   1
13 0010 OEM: 525-10-98261 SCREW (.375-16 x .750)   1
14 0000 OEM: 530-42600A09 MERCATHODE ASSEMBLY   1
15 0011 OEM: 525-11-68219 NUT (#10-32) Stainless Steel   4
16 0010 OEM: 525-10-4010516 SCREW (M5 x 16) Stainless Steel   2
17 0084 OEM: 525-84-865677T02 HARNESS ASSEMBLY Transom Transom   1
18 0084 888416T04 HARNESS ASSEMBLY DTS, Clean Power, 15 Feet   1
19 0000 OEM: 525-862646 FUSE Tan - 5 Ampere   1
20 0000 OEM: 525-828054 COVER Fuse   1
