4.3L MPI ALPHA-BRAVO EC - 1A637496 and Up - Remote Oil Filter

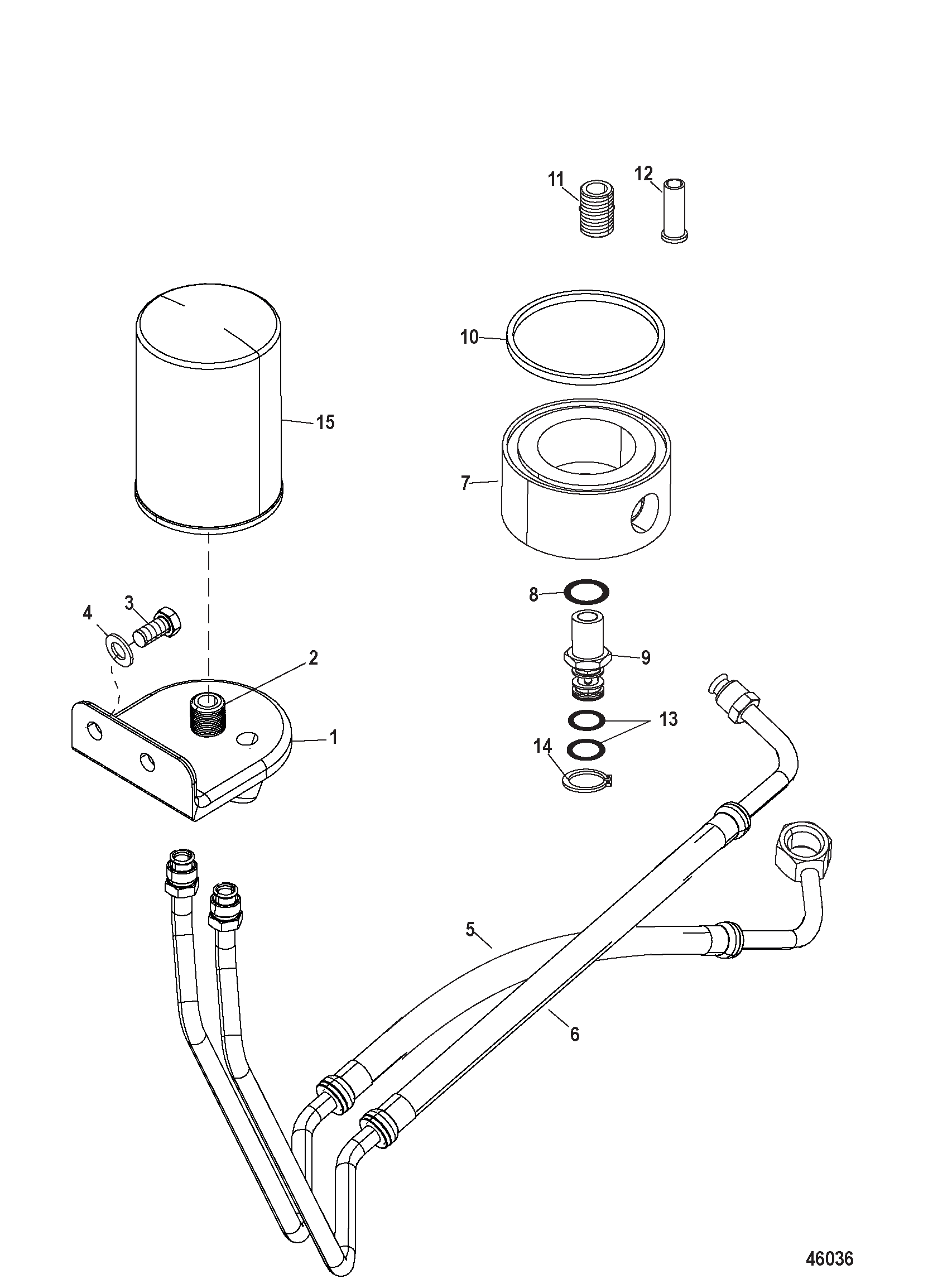

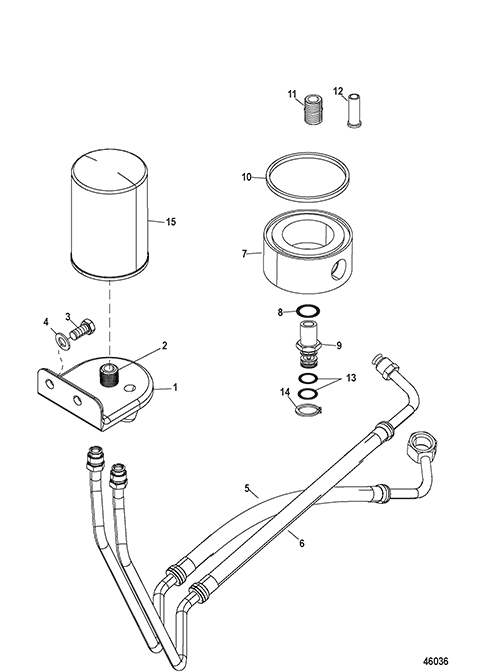

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System (Alpha - Bravo) Sea Pump Hoses
- Closed Cooling System Heat Exchanger
- Closed Cooling System Hoses
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A02) Engine Overhaul
- Gear Lube Monitor
- Harness Lifting Brackets and Mercathode
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit (98634A20)
- Oil Pan Oil Pump and Rear Oil Seal
- PCM and Electrical Components
- Pistons and Connecting Rods
- Poppet Valve Assembly Closed Cooling
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Shift Bracket Alpha
- Shift Bracket Bravo
- Standard Cooling Alpha Single Point (With Drain Plug)
- Standard Cooling Alpha Single Pt (With Handle) - Bravo 3 Pt
- Standard Cooling System (Bravo) Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing Closed Cooling
- Thermostat and Housing Standard Cooling
- Throttle Body
- Trim Pump and Motor Components
- Trim Pump Assembly
- Water Distribution Housing
- Water Drain Air Manifold and Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-863732T1 | BRACKET Oil Filter | 1 | ||
| 2 | 0022 | OEM: 525-22-863485 | FITTING | 1 | ||
| 3 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 2 | ||
| 4 | 0012 | OEM: 525-12-20553, GLM: 700-21675 | WASHER (.406 x .734 x .063) | 2 | ||
| 5 | 0032 | OEM: 525-32-8M2020160 | HOSE Oil | (To Adaptor) | 1 | |
| 6 | 0032 | OEM: 525-32-8M2020111 | HOSE Oil | (From Adaptor) | 1 | |
| 7 | 0000 | OEM: 525-860091T | ADAPTER | 1 | ||
| 8 | 0026 | OEM: 525-26-42077 | SEAL | 1 | [1] | |
| 9 | 0022 | OEM: 525-22-8637131 | FITTING | 1 | ||
| 10 | 0027 | OEM: 525-27-16779 | GASKET | 1 | [1] | |
| 11 | 0000 | 11972 | ADAPTER | 1 | ||
| 12 | 0022 | OEM: 525-22-878050 | VALVE Bypass | 1 | ||
| 13 | 0025 | OEM: 525-25-843353 | O-RING | 2 | ||
| 14 | 0053 | OEM: 525-53-62750 | CLIP | 1 | ||
| 15 | 0035 | OEM: 530-866340Q03, Sierra: 676-18-7824-2 | FILTER Oil - Quicksilver Brand | (Quicksilver Brand) | 1 | [2] |
| 15 | 0035 | OEM: 525-35-866340K01, Sierra: 676-18-7824-2 | FILTER Oil - Mercury Brand | (Mercury Brand) | 1 | [2] |
PART NOTES:
[1] - Component of Engine Overhaul Gasket Set 807756A02
[2] - Alternate part numbers:
866340K01MPP
866340Q02Service Part
866340Q03QS
