M8 Drive - Serial 0M964870 and Up - Bell Housing Assembly

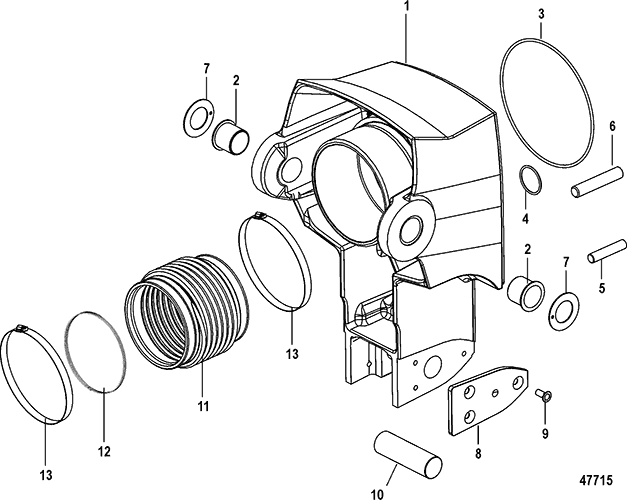

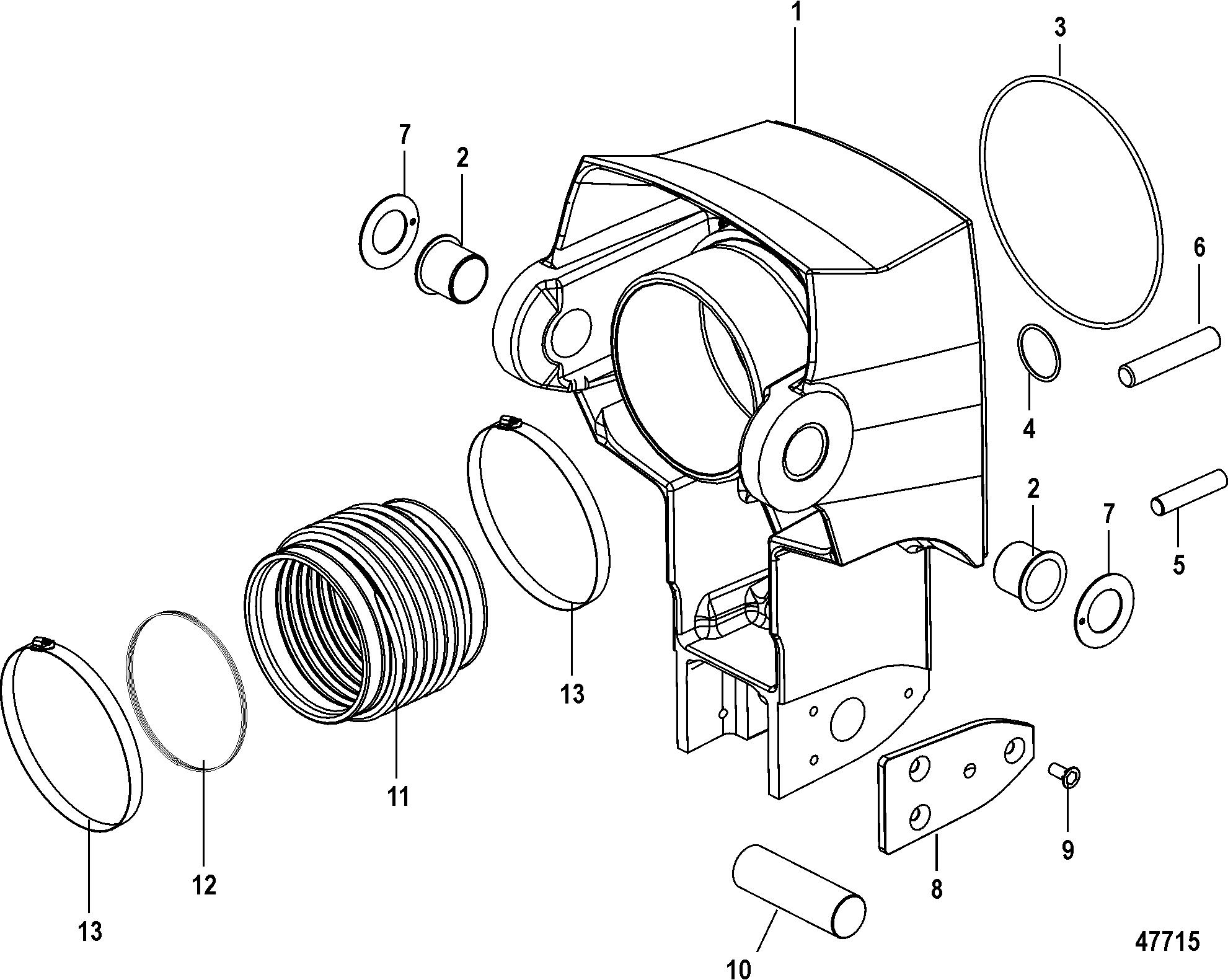

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0058488



BELL HOUSING ASSEMBLY 1

2 23-846915



BEARING 2

3 25-846363



O-RING, (7.262 x .120) 1

4 25-457101


525-25-457101 O-RING, (1.424 x .103) 2

5 16-8M0007427



STUD, (.500-13/.500-20 x 2.440) 2

6 16-846389



STUD, (.625-11/.625-18 x 3.310) 6

7 12-8M0063236



THRUST WASHER, (1.25 x 2.125 x .0585) Plastic 2 8M0007180
8 8M0039046



WEAR PAD, Tilt Housing Thrust 2

9 10-11601



SCREW, (.312-18 x .750) Stainless Steel 6

10 844324



PIN, Cylinder Pivot 1
11 846302A1



BELLOWS ASSEMBLY 1
12 24-846421



SPRING 1
13 54-846428



CLAMP, Worm Drive 2
