M8 Drive - Serial 0M964870 and Up - Gear Housing Assembly

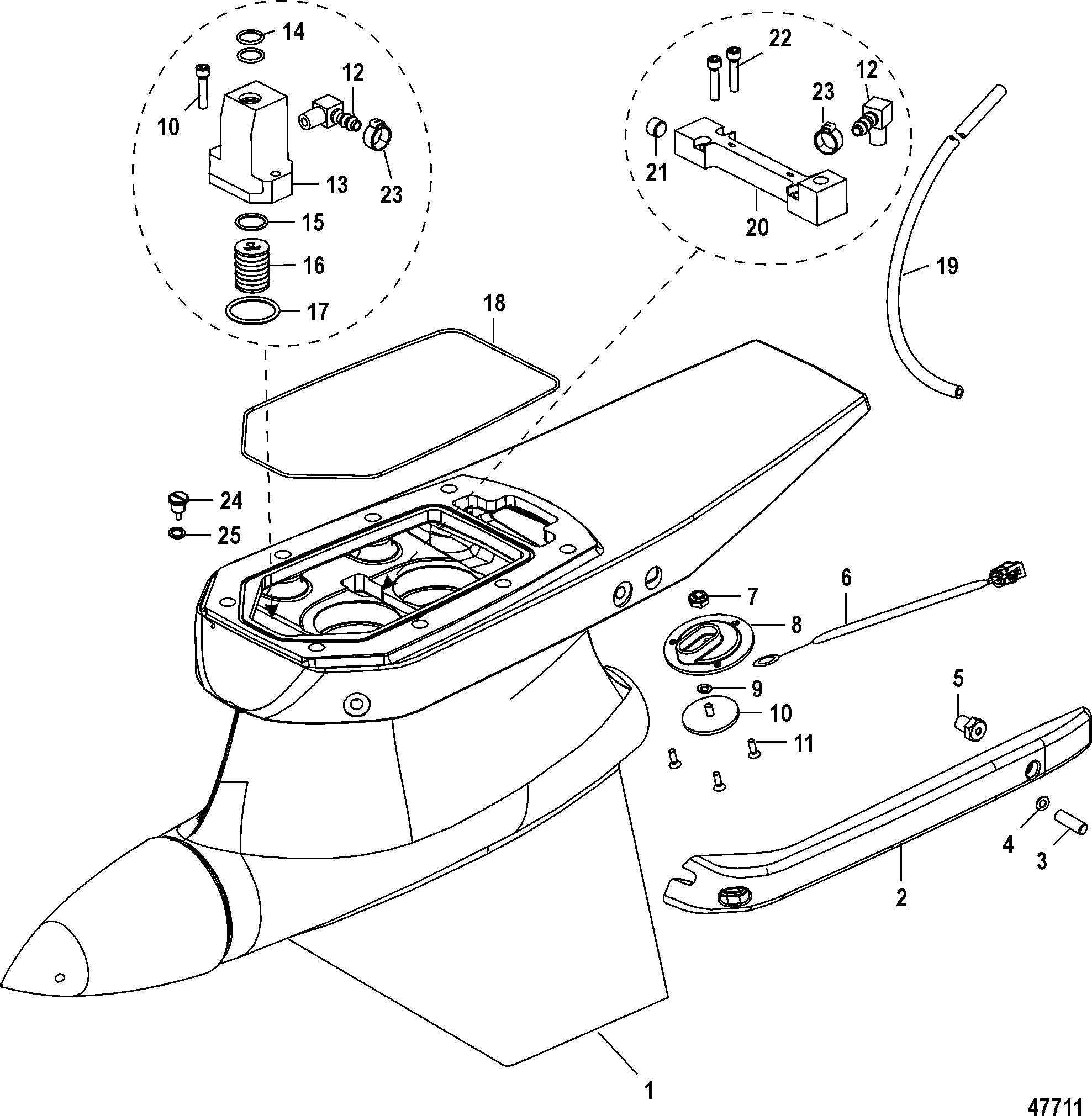

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1600-8M0060058



GEAR HOUSING ASSEMBLY, Basic 1

1 1600-8M8026002



GEAR HOUSING ASSEMBLY, Left Hand, Complete 1

1 1600-8M8026003



GEAR HOUSING ASSEMBLY, Right Hand, Complete 1

- 8M8027307



ANODE KIT, Side 1

2 NSS



NOT SOLD SEPARATE, ANODE 1
This Part is not sold separately
3 16-8M0034449



STUD, (.312-18/.312-24 x 1.690) 1 16-69058
3 NSS



NOT SOLD SEPARATE, SCREW (.312 x 1.38) 1
This Part is not sold separately
4 12-814806

700-21662
WASHER, (.344 x .688 x .065) Stainless Steel 2

5 NSS



NOT SOLD SEPARATE, INSERT 2
This Part is not sold separately
- 8M0044788



ANODE ASSEMBLY, Active 1

6 NSS



NOT SOLD SEPARATE, HARNESS 1
This Part is not sold separately
7 11-401386



NUT, (M6) Stainless Steel 1

8 NSS



NOT SOLD SEPARATE, HOLDER, Anode 1
This Part is not sold separately
9 12-98572



WASHER 1

10 8M0021534



ANODE, Ceramic 1

11 10-88190316



SCREW 3

12 22-849681



ELBOW 2

13 NSS



NOT SOLD SEPARATE, BLOCK, Oil Transfer 1
This Part is not sold separately
14 25-32509



O-RING, (.489 x .070) 2

15 25-48462



O-RING, (.614 x .070) 1

16 NSS



NOT SOLD SEPARATE, FILTER 1
This Part is not sold separately
17 25-86614



O-RING, (1.049 x .103) 1

18 25-8M0001554



O-RING, (Special x .103) 1

19 32-8M0062600



HOSE, (54.00 Inches Bulk) 1 32-1940971 Cut to 6 Inches
20 NSS



NOT SOLD SEPARATE, BLOCK, Oil Feed 1
This Part is not sold separately
21 22-390721



PLUG, Pipe (.125-27) Brass 1

22 10-75840



SCREW, (#10-24 x .880) 6

23 54-12999



CLAMP, (14.0) 2

24 22-8M0058389

700-21731 525-22-8M0058389 PLUG KIT, Drain - Magnetic 2 22-67892A06
25 26-830749
676-9-60105

SEAL 1
