M8 Drive - Serial 0M964870 and Up - Tool List

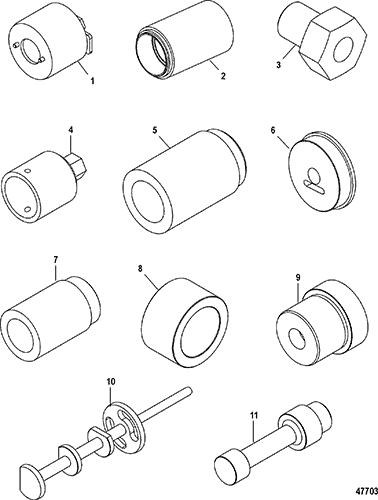

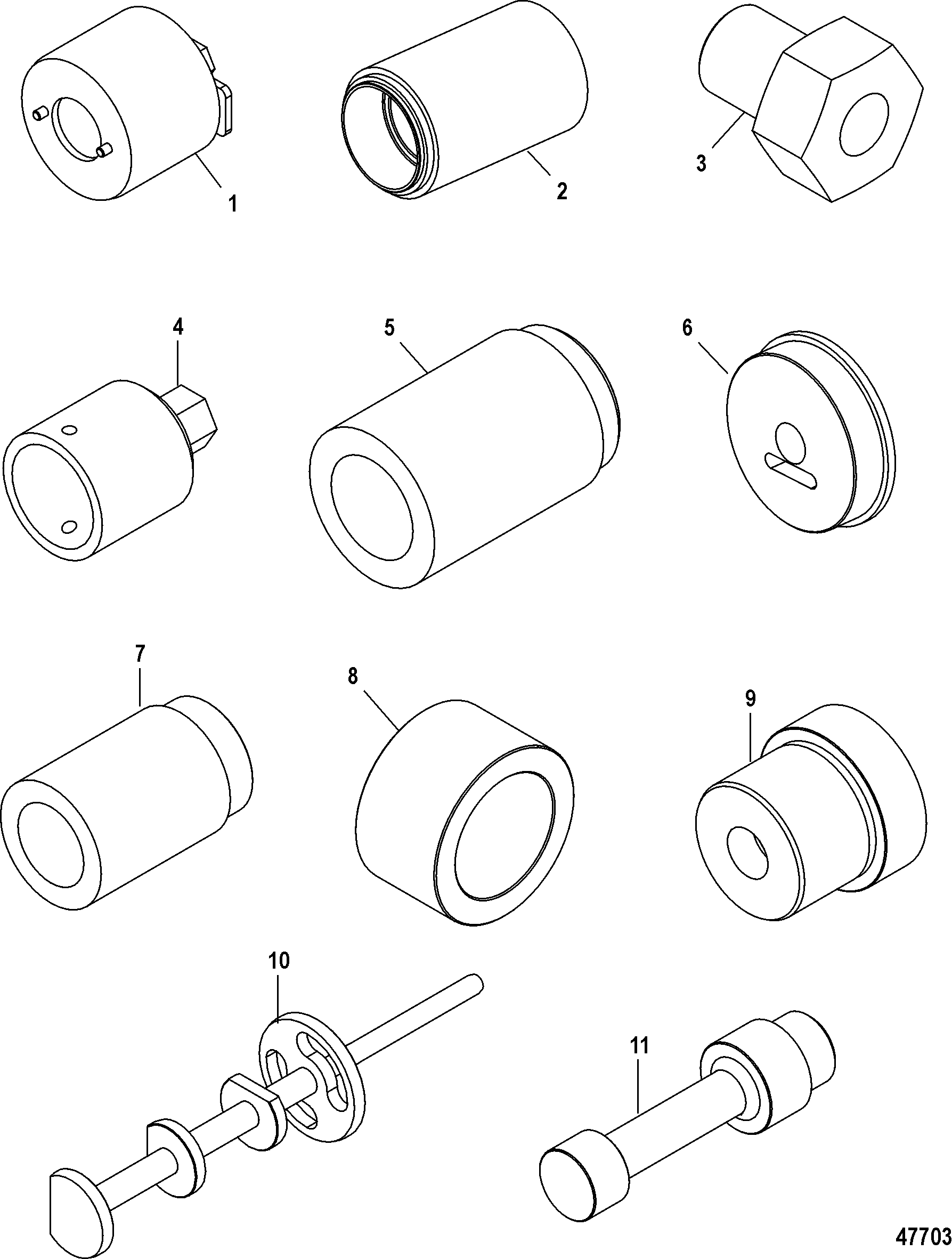

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 91-8M0047629



WRENCH TOOL, Bearing Retainer 1
2 91-8M0044772



INSTALLER TOOL, Seal 1

3 11-8M0047617



NUT, Special, Cup Puller 1
4 91-8M0045014



TOOL, Nose Cap 1

5 91-8M0044771



INSTALLER TOOL, Seal 1
6 91-8M0044824



HOLDER TOOL, Pin Nut Wrench 1
7 91-8M0044768



INSTALLER TOOL, Seal 1
8 91-8M0047941



SPACER TOOL, Spur Gear 1
9 91-8M0044823



DRIVER TOOL, Needle Bearing 1
10 91-8M0044437



GAUGE TOOL, Pinion Height 1
11 91-8M0044757



DRIVER TOOL, Needle Bearing 1
