M8 Drive - Serial 0M964870 and Up - Gear Housing Assembly, Driveshaft

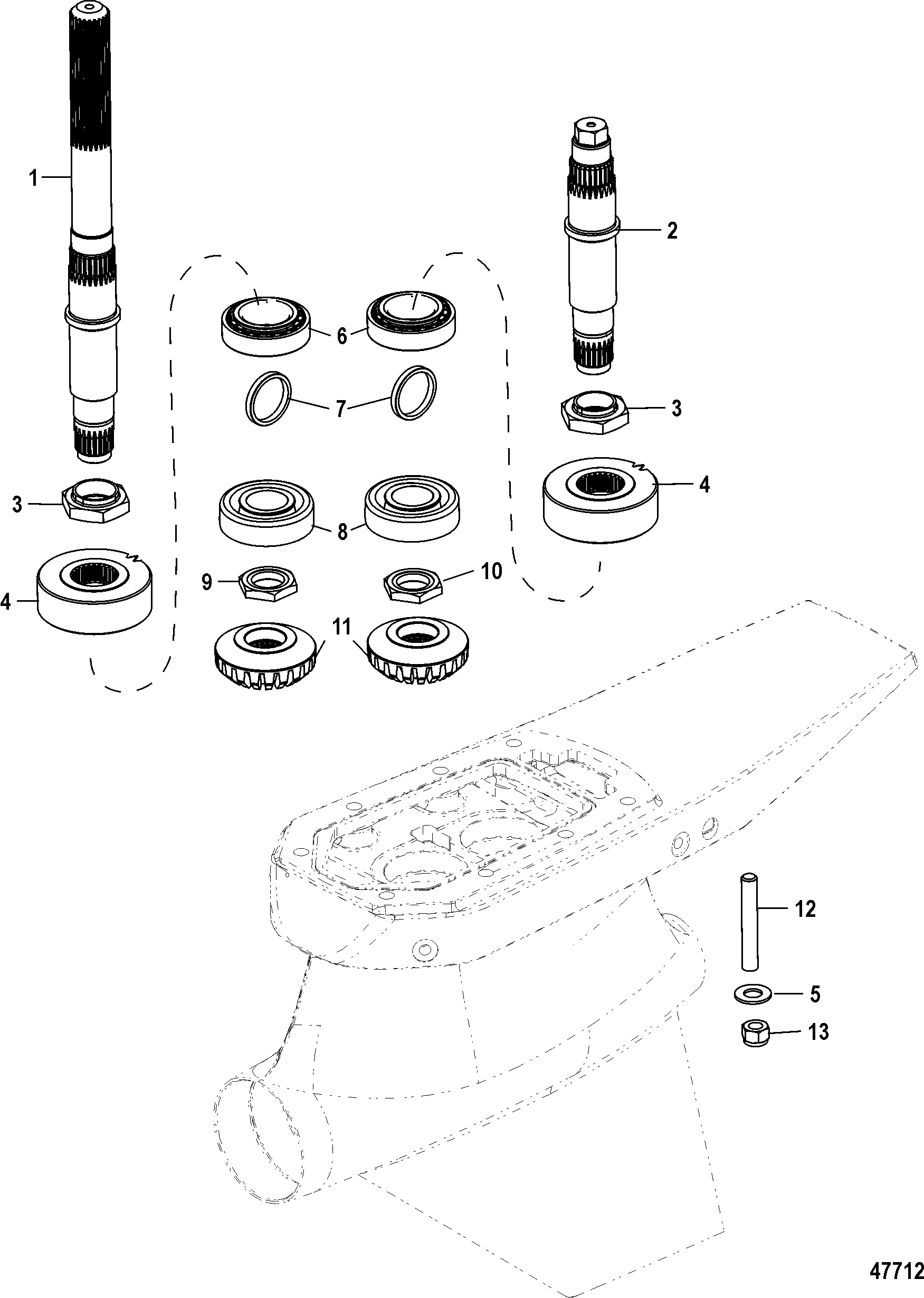

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1600-8M8026002



GEAR HOUSING ASSEMBLY, Left Hand, Complete 1
- 1600-8M8026003



GEAR HOUSING ASSEMBLY, Right Hand, Complete 1

1 45-8M0060039



DRIVESHAFT, Front 1
2 45-8M0060040



DRIVESHAFT, Rear 1

3 11-846394



NUT, (1.440-16) 2
4 43-8M0060056



GEAR SET 1
5 12-844850



WASHER, (.660 x 1.310 x .09) Stainless Steel 8
6 31-30894A1



BEARING SET, Cup And Cone 2
7 23-846505595



SPACER, (.2595) 2
8 31-847377T1



BEARING SET, Cup And Cone 2
9 11-846396



NUT, (1.25-16) 1
10 11-846395



NUT, Left Hand (1.250-16) 1
11 43-8M0025968



PINION, 21 Teeth 2
12 16-846385



STUD, (.562-12/.562-18 x 3.810) 8
13 11-47302



NUT, (.562-18) Stainless Steel 8
