M8 Drive - Serial 0M964870 and Up - Outer Transom Assembly

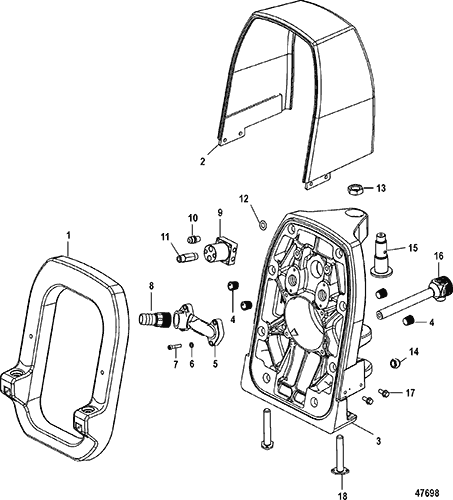

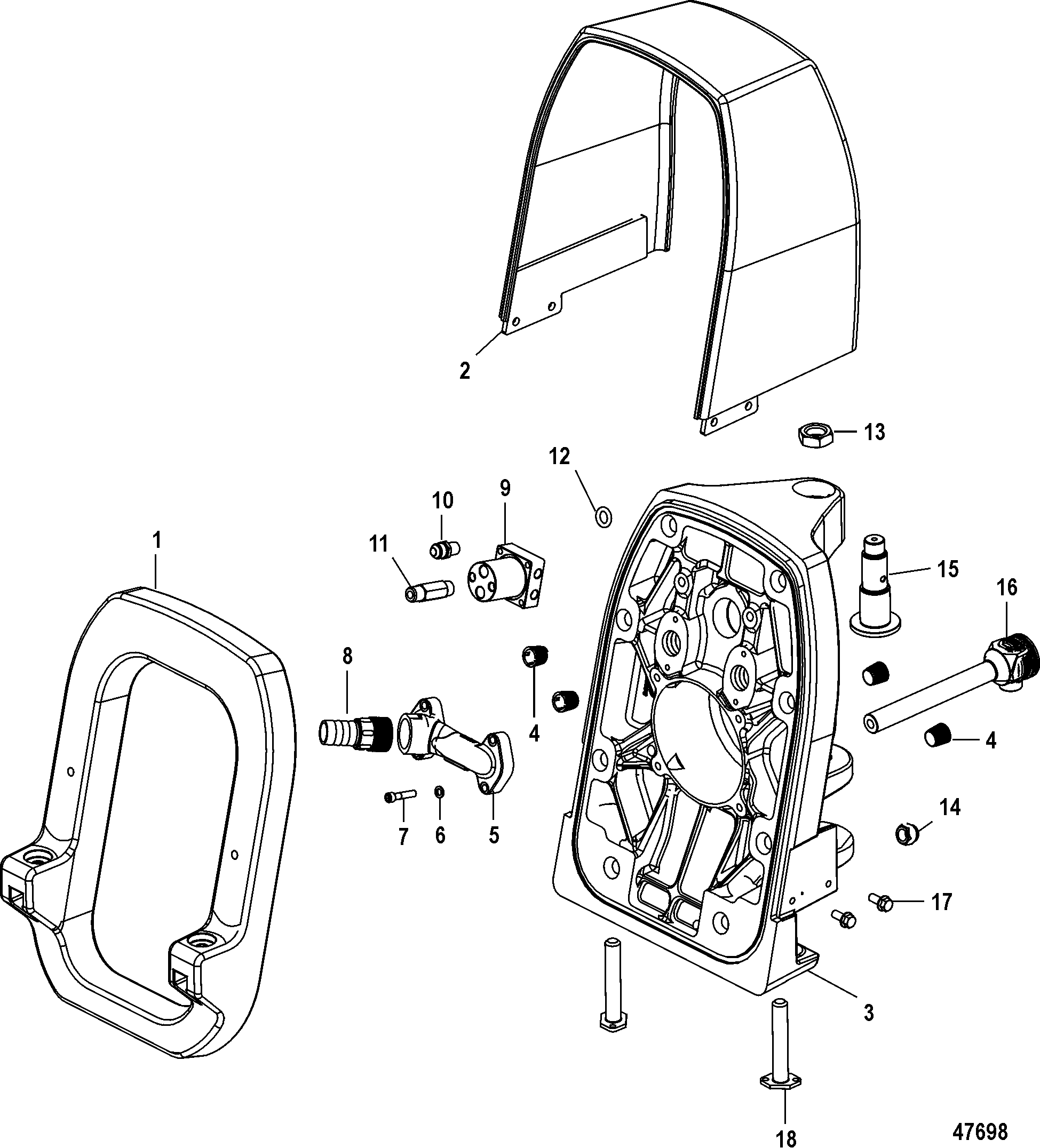

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 841955001



TRANSOM PLATE, Inner 1

2 8M0050504



COWL ASSEMBLY, Transom 1

3 8M8025995



TRANSOM ASSEMBLY, Outer 1

4 41674T



INSERT 4

5 841995001



MANIFOLD, Water 1

6 12-843108



WASHER, (.330 x .560 x .060) Stainless Steel 4

7 10-823029



SCREW, (.312-18 x 1.500) Stainless Steel 4

8 22-8M0051041



FITTING 1

9 8M0053621



BLOCK, Connector Drive 1 844333
10 22-846865



FITTING, (.375-18/.750-16 x 1.53) 1

11 22-8M0053634



FITTING, (.375-16/.375-18 x 2.750) 1

12 25-8M0000668



O-RING, (.600 x .210) 6

13 11-846391



NUT, (1.00-16) Stainless Steel 1

14 11-47379



NUT, (.625-18) Stainless Steel 6

15 8M0051211



PIN, Hinge 1

16 8M0073272



CYLINDER ASSEMBLY, Steering - Starboard 1 841983A01
16 8M0073354



CYLINDER ASSEMBLY, Steering - Port 1 841983A02
17 10-805559



SCREW, (.375-16 x .875) Stainless Steel 4

18 844322



PIN, Cylinder Pivot 2
