M8 Drive - Serial 0M964870 and Up - Gimbal Ring Components

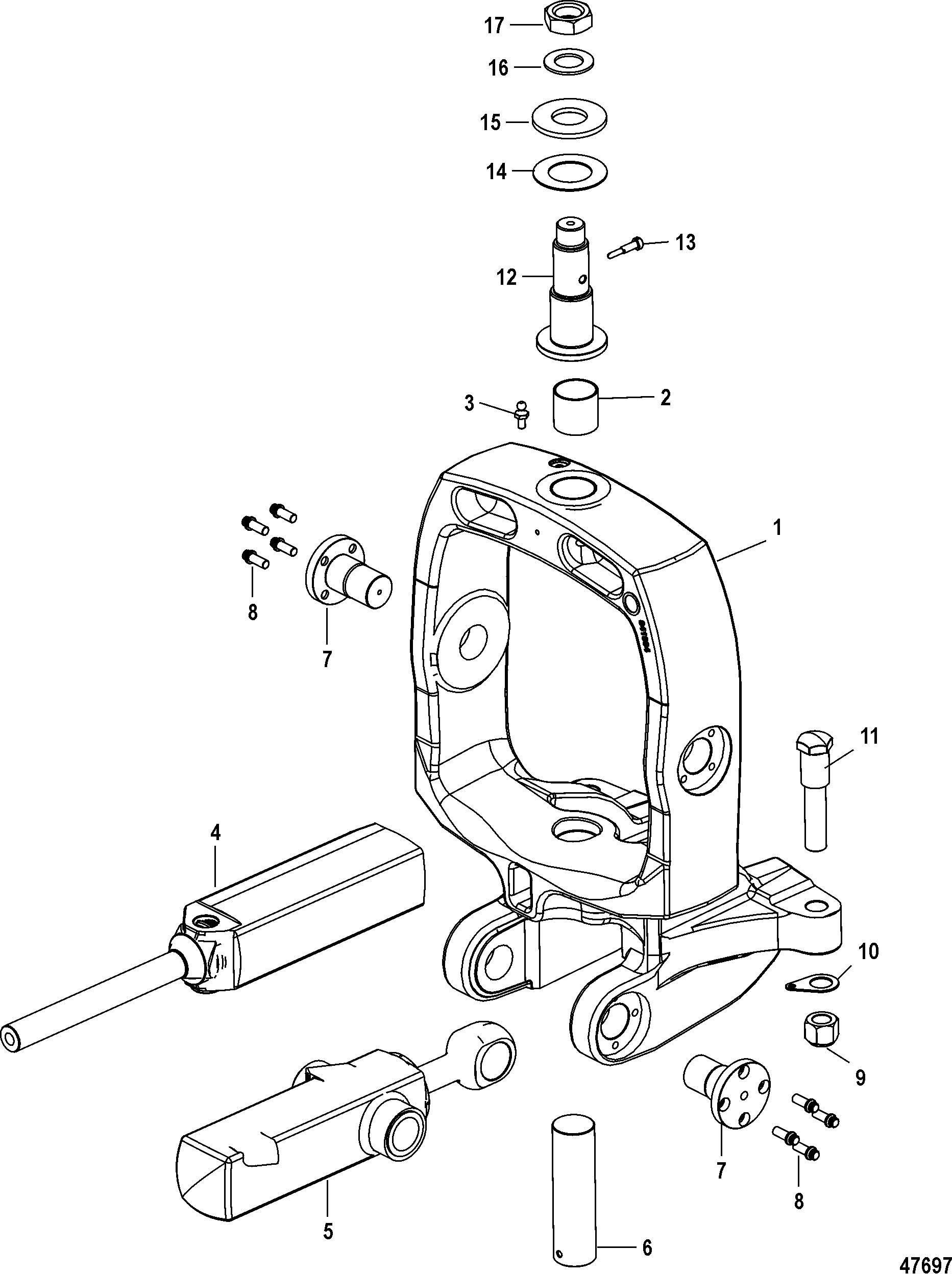

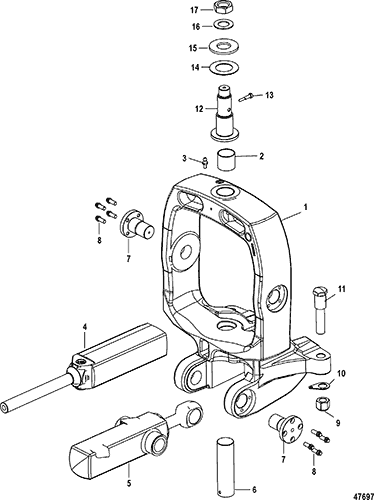

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M8025996



GIMBAL RING 1

2 8M0009026



BALL, (.250-28 x 1.00) Stainless Steel 1

3 23-846916



BEARING 3

4 8M0073272



CYLINDER ASSEMBLY, Steering - Starboard 1 841983A01
4 8M0073354



CYLINDER ASSEMBLY, Steering - Port 1 841983A02
5 841962A01



CYLINDER ASSEMBLY, Trim 1

6 8M8027382



PIN, Pivot 1 844323T
7 846433



PIN, Hinge 4

8 10-846498



SCREW, (.312-18 x .750) Stainless Steel 16
9 11-846853



NUT, (.750-16) Stainless Steel 2
10 847048



PLATE, Ground 2
11 10-846854



SHOULDER SCREW, (.750-16) Stainless Steel 2
12 8M0051211



PIN, Hinge 1
13 10-846348



SCREW, (.250-28 x 1.50) Special - Stainless Steel 1
14 12-846375



THRUST WASHER, (1.53 x 2.62 x .06) 1
15 12-846397



WASHER, (1.250 x 2.620 x .190) Stainless Steel 1
16 12-846382



WASHER, (1.015 x 1.750 x .096) Stainless Steel 1
17 11-846391



NUT, (1.00-16) Stainless Steel 1
