500 EFI - Serial 0L307028 Thru 0L602036 - Circulating Water Pump And Front Cover

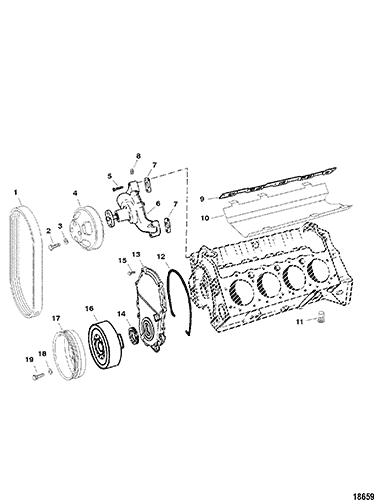

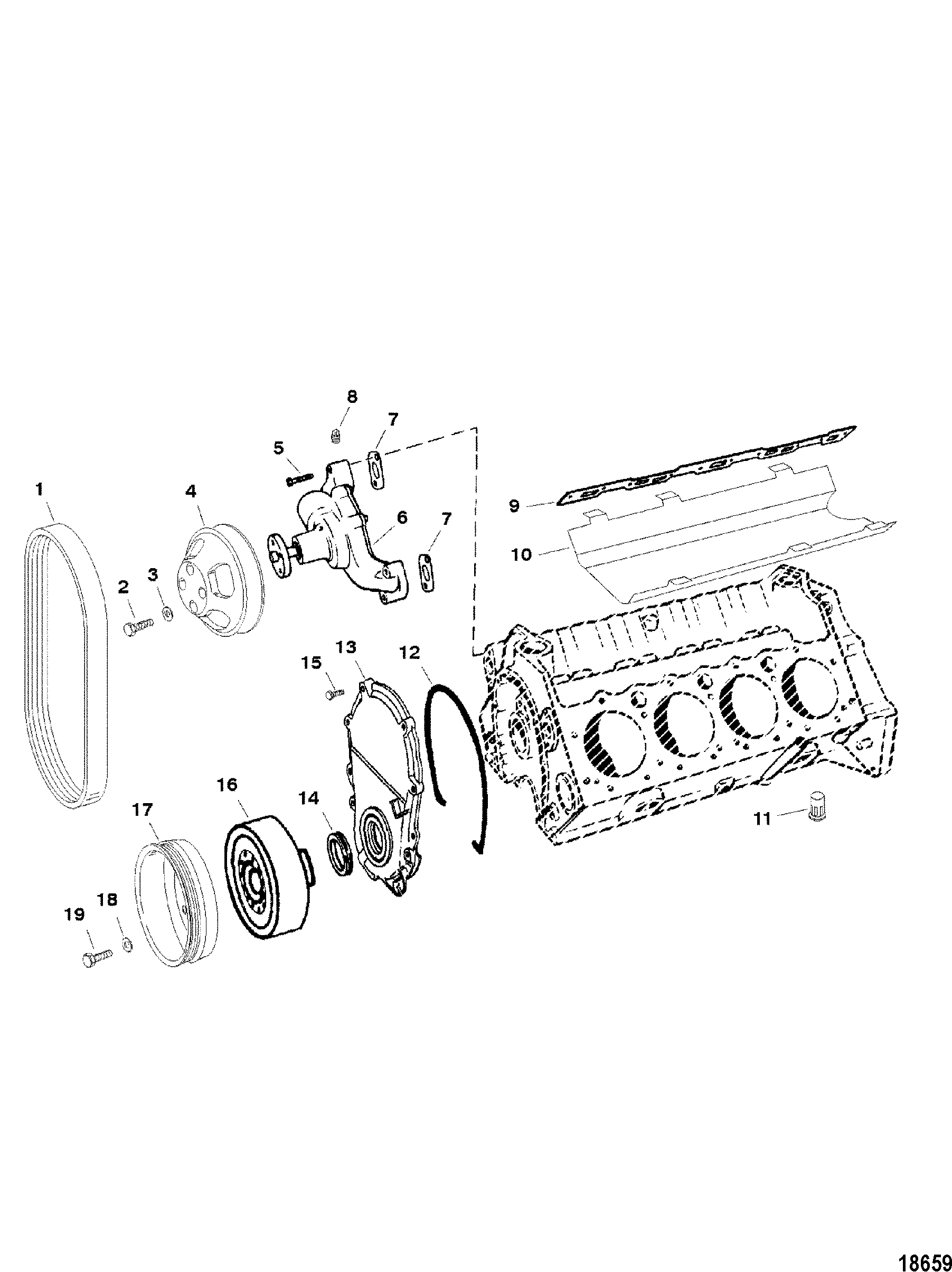

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header And Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Harness Assembly-EFI Wiring
- Intake Manifold And Intake Plenum
- Mount Plate-Engine
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket(Bravo)
- Starter And Alternator Mount
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 57-865615Q05 | BELT, Serpentine | 1 | 57-865615005 | |||||
| 2 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 4 | ||||||
| 3 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 4 | ||||||
| 4 | 849047T | PULLEY, Blue | 1 | ||||||
| 5 | 10-805611 | SCREW, (.375-16 x 1.750) | 4 | 10-811574 | 5 | ||||
| 6 | 811573A04 | PUMP ASSEMBLY, Circulating Water | 1 | 811573A03 | 5 | ||||
| 7 | 27-49110 | GASKET, Circulating Water Pump Mount | 2 | 2 | |||||
| 8 | 22-845174 | PLUG (.500) Circulating Pump | 1 | 22-61162 | 5 | ||||
| 9 | 27-8181881 | GASKET | 2 | 2,5 | |||||
| 10 | 845756T | SHIELD, Oil Intake, Heat | 1 | 816073 | 5 | ||||
| 11 | VALVE, Relief, Oil By Pass (30 PSI) | 1 | |||||||
| 12 | 27-850456 | GASKET, Front Cover Mount | 1 | 2,5 | |||||
| 13 | 845610T | COVER ASSEMBLY, Front | 1 | 850459 | 5 | ||||
| 14 | 26-8219471 | SEAL, Oil | 1 | 2 | |||||
| 15 | 10-F2030 | SCREW, (.250-20 x 1.250) Stainless Steel | 6 | 5 | |||||
| 16 | 850461001 | BALANCER | 1 | 850461 | 5 | ||||
| 17 | 849044T | PULLEY, Blue | 1 | 5 | |||||
| 18 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 3 | 5 | |||||
| 19 | 10-86517 | SCREW, (.375-16 x 1.250) | 3 | 5 | |||||
| - | 27-842129A1 | GASKET/SEAL SET, Engine Overhaul | 1 |
