500 EFI - Serial 0L307028 Thru 0L602036 - Cylinder Block And Camshaft

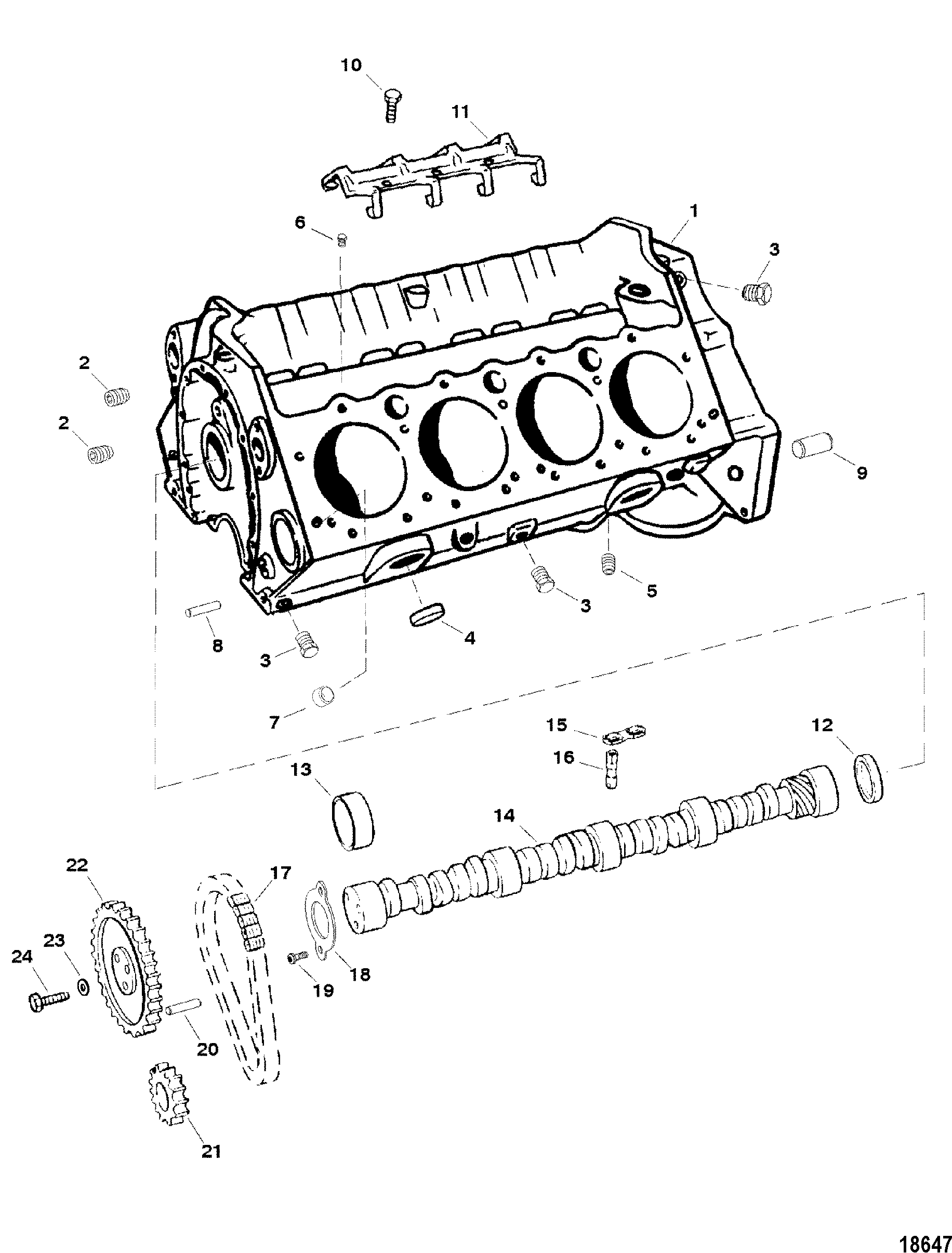

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header And Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Harness Assembly-EFI Wiring
- Intake Manifold And Intake Plenum
- Mount Plate-Engine
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket(Bravo)
- Starter And Alternator Mount
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 844500A8 | PARTIAL ENGINE ASSEMBLY | 1 | 844500A7 | NOTE: Bravo Models With Driveline Also Require Flywheel Part Number 230-811563 And Pilot Bushing Part Number 23-823108 | ||||
| 2 | 845606 | PLUG, Oil Gallery - Allen Head | 2 | 42534 | NOTE: With Hole 5 | ||||
| 2 | 22-32561 | PLUG, Pipe - Allen Head (.250-18), Oil Gallery | 1 | NOTE: Without Hole 5 | |||||
| 3 | 22-36382 | 700-21887 | FITTING, (.250-18 x .62) Brass | 4 | 5 | ||||
| 4 | 22-69300 | EXPANSION PLUG, (1.750 Diameter) | 8 | 5 | |||||
| 5 | 22-36373 | PLUG, (.375-18) Hex - Steel, Bottom Of Block | 1 | 5 | |||||
| 6 | 22-328022 | PLUG, Pipe (.125-27) Brass, Oil Gallery | 3 | 5 | |||||
| 7 | 17-52190 | PIN, Dowel (.660 Relaxed Outside Diameter x .500) | 4 | 5 | |||||
| 8 | 17-843378 | PIN, Dowel (1/4 In. Diameter) (.250 Diameter) Timing Cover | 2 | 17-35312 | 5 | ||||
| 9 | 17-843379 | PIN, Dowel (.6206/.6211 x 1.500) Flywheel Housing | 2 | 17-72382 | 5 | ||||
| 10 | 10-808707 | SCREW, (.312-18 x .625) | 4 | 5 | |||||
| 11 | 8M0050807 | RETAINER, Lifter Guide | 1 | 850479 | 5 | ||||
| 12 | 19-94140 | EXPANSION PLUG | 1 | 5 | |||||
| 13 | 23-85684 | BEARING SET | 1 | 5 | |||||
| 14 | 849945T01 | CAMSHAFT | 1 | 2409-849945T | 5 | ||||
| 15 | 845754 | GUIDE, Lifter | 8 | 850474 | 5 | ||||
| 16 | 849947T01 | LIFTER, Roller | 16 | 849947T | 5 | ||||
| 17 | 845796T | CHAIN, Timing | 1 | 811580 | 5 | ||||
| 18 | 845941 | RETAINER, Gear Thrust | 1 | 811663 | 5 | ||||
| 19 | 10-17343 | SCREW, (.250-20 x .500) | 2 | No longer made, limited availability 5 | |||||
| 20 | 17-843378 | PIN, Dowel (1/4 In. Diameter) (.250 Diameter) | 1 | 17-35312 | 5 | ||||
| 21 | 43-845794T | SPROCKET, Crankshaft | 1 | 43-811579 | 5 | ||||
| 22 | 43-845795T | SPROCKET, Camshaft | 1 | 43-850452 | 5 | ||||
| 23 | 12-848136 | WASHER, (.328 x .680 x .190) | 3 | 5 | |||||
| 24 | 10-845942 | SCREW, (.312-18 x .750) | 3 | 10-35339 | 5 | ||||
| - | 92-809825 | RTV SILICONE, (3 Ounce Tube) Metallic Blue, Where Applicable | AR | ||||||
| - | 34227Q02 | SEALING COMPOUND, (16 Ounce), Where Applicable | AR | 92-342271 | |||||
| - | 27-842129A1 | GASKET/SEAL SET, Engine Overhaul | 1 |
