500 EFI - Serial 0L307028 Thru 0L602036 - Senders And Sensors

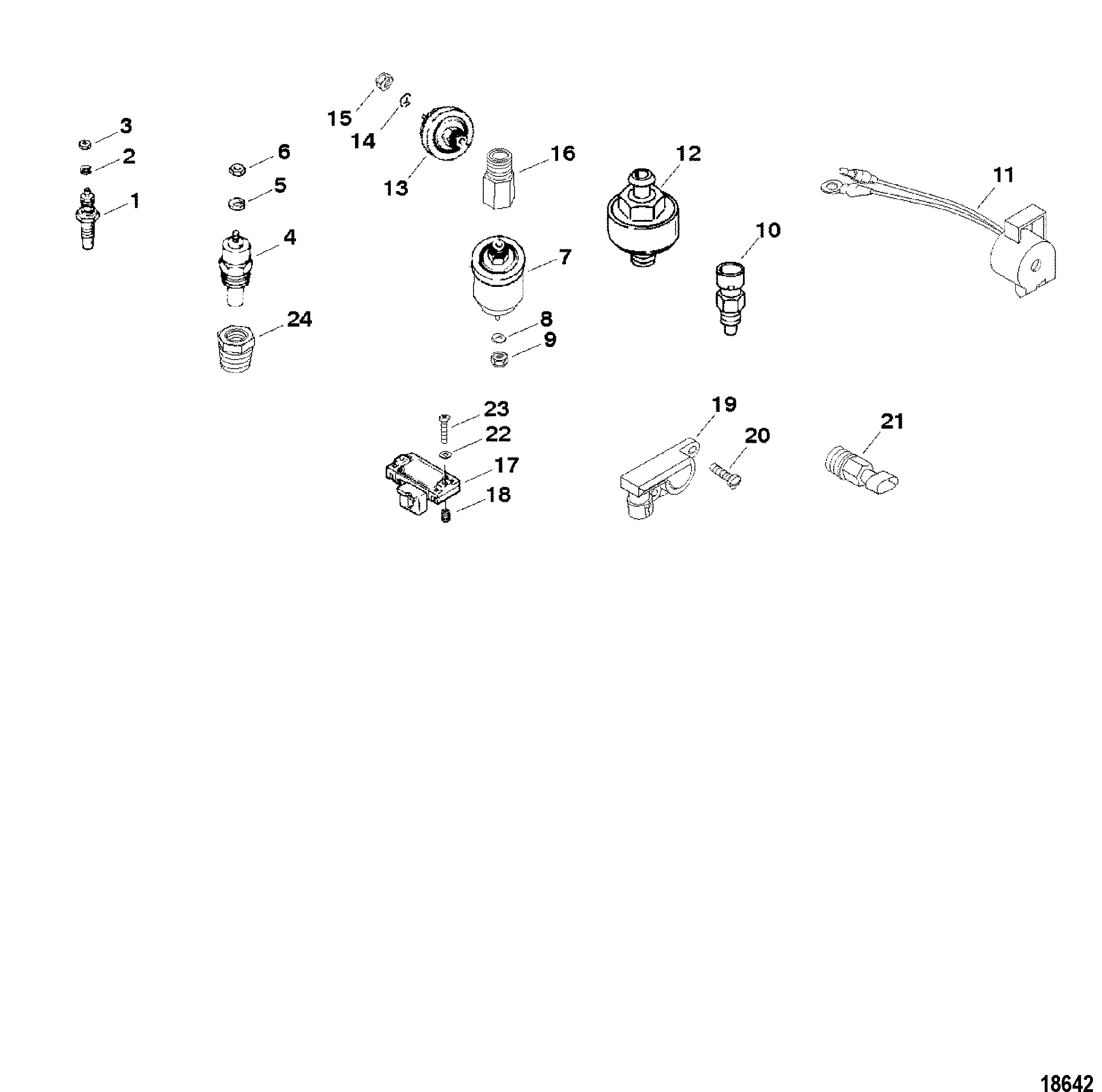

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header And Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Harness Assembly-EFI Wiring
- Intake Manifold And Intake Plenum
- Mount Plate-Engine
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket(Bravo)
- Starter And Alternator Mount
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8493631 | SENDER ASSEMBLY, Oil Temperature | 1 | ||||||
| 2 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 3 | 11-45076 | NUT, (#10-32) Brass | 1 | ||||||
| 4 | 806490T | SENDER ASSEMBLY, Water Temperature | 1 | 97257A1 | |||||
| 5 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 6 | 11-45076 | NUT, (#10-32) Brass | 1 | ||||||
| 7 | 8M0068784 | SENDER ASSEMBLY, Oil Pressure | 1 | 87-815425T | |||||
| 8 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 9 | 11-45076 | NUT, (#10-32) Brass | 1 | ||||||
| 10 | 805218T | 676-9-42402 | SENSOR, Coolant Temperature | 1 | |||||
| 11 | 816492A6 | ALARM KIT, Audio Warning | 1 | ||||||
| 12 | 805544T | SENSOR ASSEMBLY, Knock | 1 | ||||||
| 13 | 87-805605A1 | SWITCH ASSEMBLY, Pressure - Engine Block | 1 | ||||||
| 14 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 15 | 11-68219 | NUT, (#10-32) Stainless Steel | 1 | ||||||
| 16 | 22-843300 | FITTING, Street Tee | 1 | ||||||
| 17 | 864856A1 | SENSOR ASSEMBLY, MAP | 1 | 805217A1 | |||||
| 18 | 26-805412 | SEAL | 1 | ||||||
| 19 | 849903 | SENSOR, Throttle Position | 1 | ||||||
| 20 | 10-805400 | SCREW, (#8-32 x .500) Stainless Steel | 2 | ||||||
| 21 | 805223T | SENSOR, MAT | 1 | ||||||
| 22 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 2 | ||||||
| 23 | 10-66686 | SCREW, (#10-32 x 1.00) | 2 | ||||||
| 24 | 23-848552 | BUSHING, Coolant Sensor To Plenum | 1 |
