500 EFI - Serial 0L307028 Thru 0L602036 - Thermostat Housing

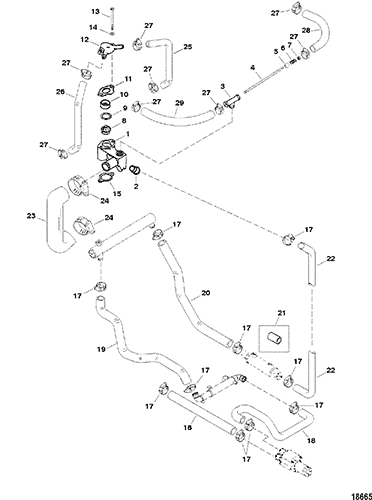

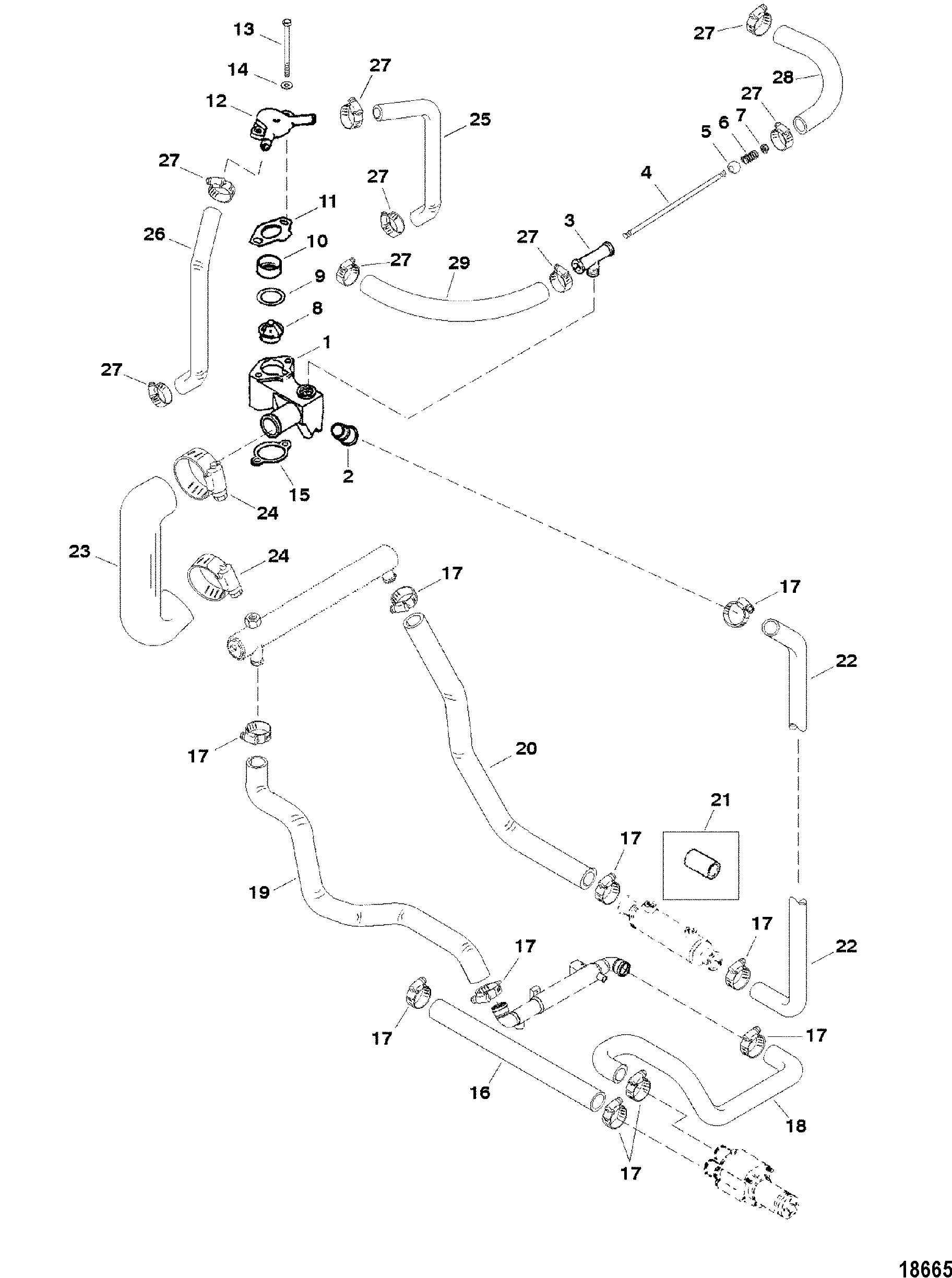

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 849927T1



HOUSING ASSEMBLY, Thermostat 1

2 23-47511



SLEEVE 1

3 22-98477A2



VALVE ASSEMBLY 1

4 10-98476



SCREW, (#10-32 x 6.00) 1

5 30-98475



BALL, Nylon 2

6 24-75533



SPRING 2

7 11-29488

700-21163
NUT, (#10-32) 1
 No longer made, limited availability
8 807252T1



THERMOSTAT, 60°C (140°F) 1

9 27-47510
676-9-60005 700-31460
GASKET, Thermostat 1
2
10 23-47508T



SLEEVE, Thermostat 1

11 27-418122



GASKET, Thermostat Cover 1
2
12 47441A1



COVER, Thermostat 1

13 10-843373



SCREW, (.375-16 x 3.500) 2

14 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 2

15 27-530451



GASKET, Thermostat Housing 1
2
16 32-1743565



HOSE, (38.00 Inches Bulk), Cut As Required - Sea Pump To Drive Unit 1
Bravo Models
16 32-13556A1



HOSE KIT, (10.00 Feet), Cut as Required 1
Driveline Models
17 54-180766



CLAMP, Worm Gear 2
Driveline Models
17 54-180766



CLAMP, Worm Gear 8
Bravo Models
18 32-849935



HOSE, Molded, Circulating Pump To Fuel Cooler 1

19 32-844881



HOSE, Molded, Cooler To Cooler 1

20 32-848956



HOSE, Molded, Cooler To Tube 1

21 22-13177



TUBE, Hose Connecting 1
Non Power Steering
22 32-8448821



HOSE, Molded, Oil Cooler To Thermostat Housing 1 32-844882
23 32-842416A1



HOSE, Thermostat Housing To Circulating Pump 1 32-897184
24 54-180768



CLAMP, Worm Gear 2

25 32-849938



HOSE, Port Thermostat Cover To Exhaust Bottom 1

26 32-849939



HOSE, Starboard Thermostat Cover To Exhaust Bottom 1
27 54-180764



CLAMP, Worm Gear 8
28 32-849936



HOSE, Port Thermostat Tee To Exhaust Top 1
29 32-849937



HOSE, Starboard Thermostat Tee To Exhaust Top 1
- 27-842129A1



GASKET/SEAL SET, Engine Overhaul 1
