500 EFI - Serial 0L307028 Thru 0L602036 - Cylinder Head And Rocker Cover

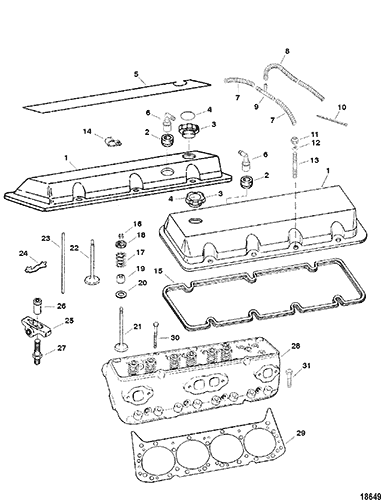

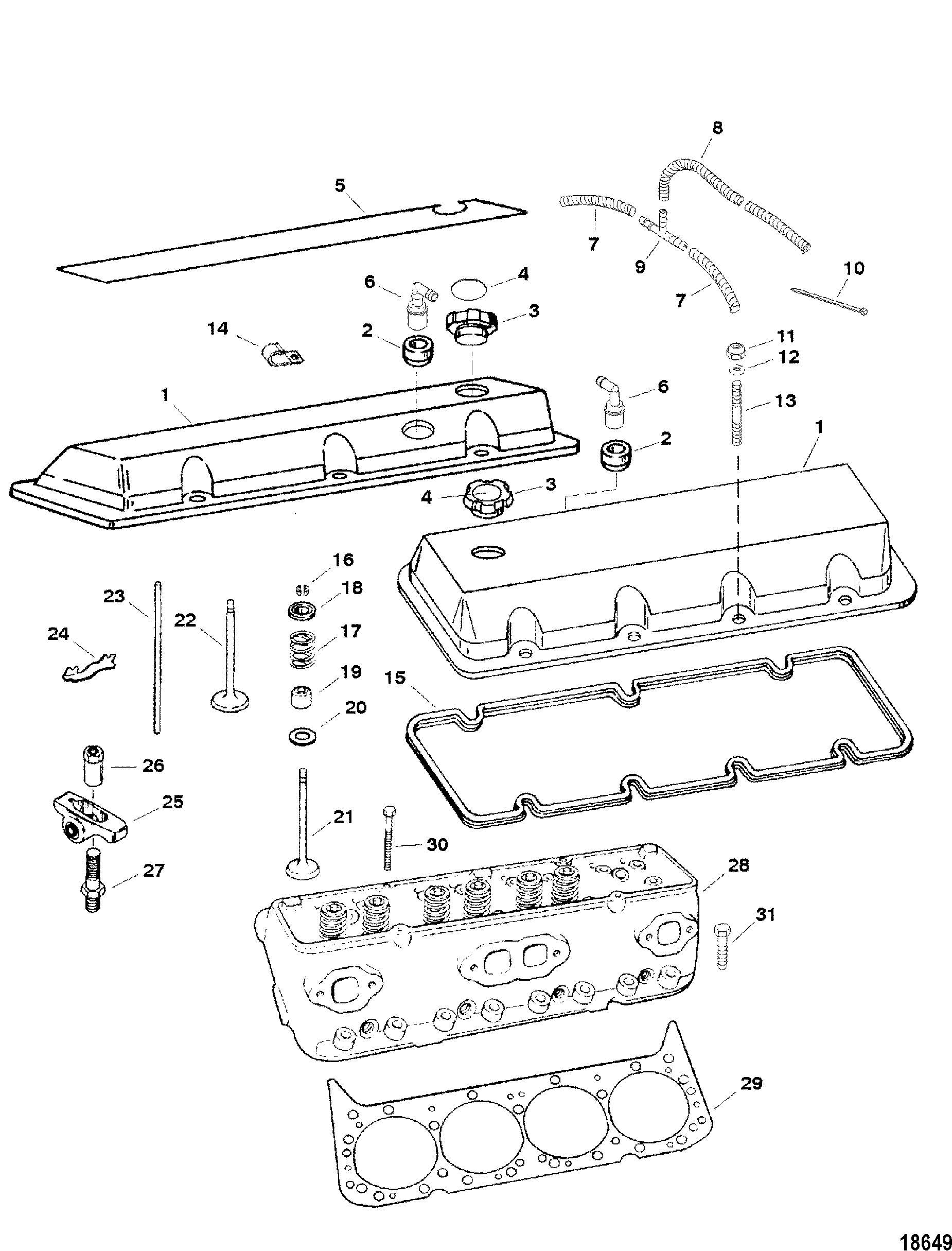

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header And Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Harness Assembly-EFI Wiring
- Intake Manifold And Intake Plenum
- Mount Plate-Engine
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket(Bravo)
- Starter And Alternator Mount
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849702A11 | COVER ASSEMBLY, Rocker Valve - Blue | 2 | 849702T4 | 5 | ||||
| 2 | 25-811553 | GROMMET, Rocker Cover | 2 | 2 | |||||
| 3 | 845753T1 | CAP, Oil Filler | 2 | 36-802566T | |||||
| 4 | 37-849950 | DECAL, Oil Fill Cap | 2 | ||||||
| 5 | 37-849575T2 | DECAL, Rocker Cover | 2 | This Part is No Longer Available | |||||
| 6 | 97850T | ELBOW, 90 Degree, Breather | 2 | 97850 | 5 | ||||
| 7 | 32-1589431 | TUBING, (20.00 Inches Bulk), Breather - Cut 8.500 Inches | 2 | ||||||
| 8 | 32-1589431 | TUBING, (20.00 Inches Bulk), Breather - Cut As Required | 1 | ||||||
| 9 | 22-849999 | FITTING, Tee | 1 | ||||||
| 10 | 56762 | TIE STRAP, (4.00 Inches) | AR | ||||||
| 11 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 14 | 5 | |||
| 12 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 14 | 5 | |||||
| 13 | 16-56766 | STUD, (.250-20/.250-28 x 1.380), Rocker Cover | 14 | 5 | |||||
| 14 | 54-42553 | J CLIP, Starboard - Top Rear | 1 | 5 | |||||
| 15 | 27-811588 | GASKET, Rocker Cover | 2 | 2,5 | |||||
| 16 | 8M0042989 | KEY, Valve Stem | 32 | 960281 | 5 | ||||
| 17 | 24-845617A2 | SPRING/RETAINER KIT | 16 | 24-845617A1 | 5 | ||||
| 18 | 843465 | RETAINER | 16 | 845592 | |||||
| 19 | 26-842755 | SEAL, Valve | 16 | 2,5 | |||||
| 20 | 15-845669 | SHIM, Valve Spring (.015) | AR | 15-54531 | 5 | ||||
| 20 | 15-77624 | SHIM, Valve Spring (.030) | AR | 5 | |||||
| 21 | 843080 | VALVE, Exhaust | 8 | 5 | |||||
| 22 | 821024T | VALVE, Intake, Standard - 2.250 Diameter | 8 | 5 | |||||
| 23 | 848262 | PUSH ROD, (7.550), Valve Push | 8 | Inlet 5 | |||||
| 23 | 848264 | PUSH ROD, (8.550), Valve Push | 8 | Exhaust 5 | |||||
| 24 | 845707 | GUIDE, Push Rod | 8 | 811586 | 5 | ||||
| 25 | 845618T | ROCKER ARM ASSEMBLY | 16 | 5 | |||||
| 26 | 11-848610 | NUT, Rocker Arm Valve | 16 | 5 | |||||
| 27 | 16-821836 | STUD, Rocker Arm Valve | 16 | 5 | |||||
| 28 | 938-845704T5 | CYLINDER HEAD ASSEMBLY | 2 | 938-827495T11 | 5 | ||||
| 29 | 27-811546A04 | GASKET, Cylinder Head | 2 | 27-8115462 | 2,5 | ||||
| 30 | 10-8M0000482 | BOLT, (4.125 Inch) | 24 | 10-49105 | 5 | ||||
| 31 | 10-8M0000463 | BOLT (2.00) | 8 | 10-491061 | 5 | ||||
| - | 27-842129A1 | GASKET/SEAL SET, Engine Overhaul | 1 |
