500 EFI - Serial 0L307028 Thru 0L602036 - Oil Reservoir Bottle

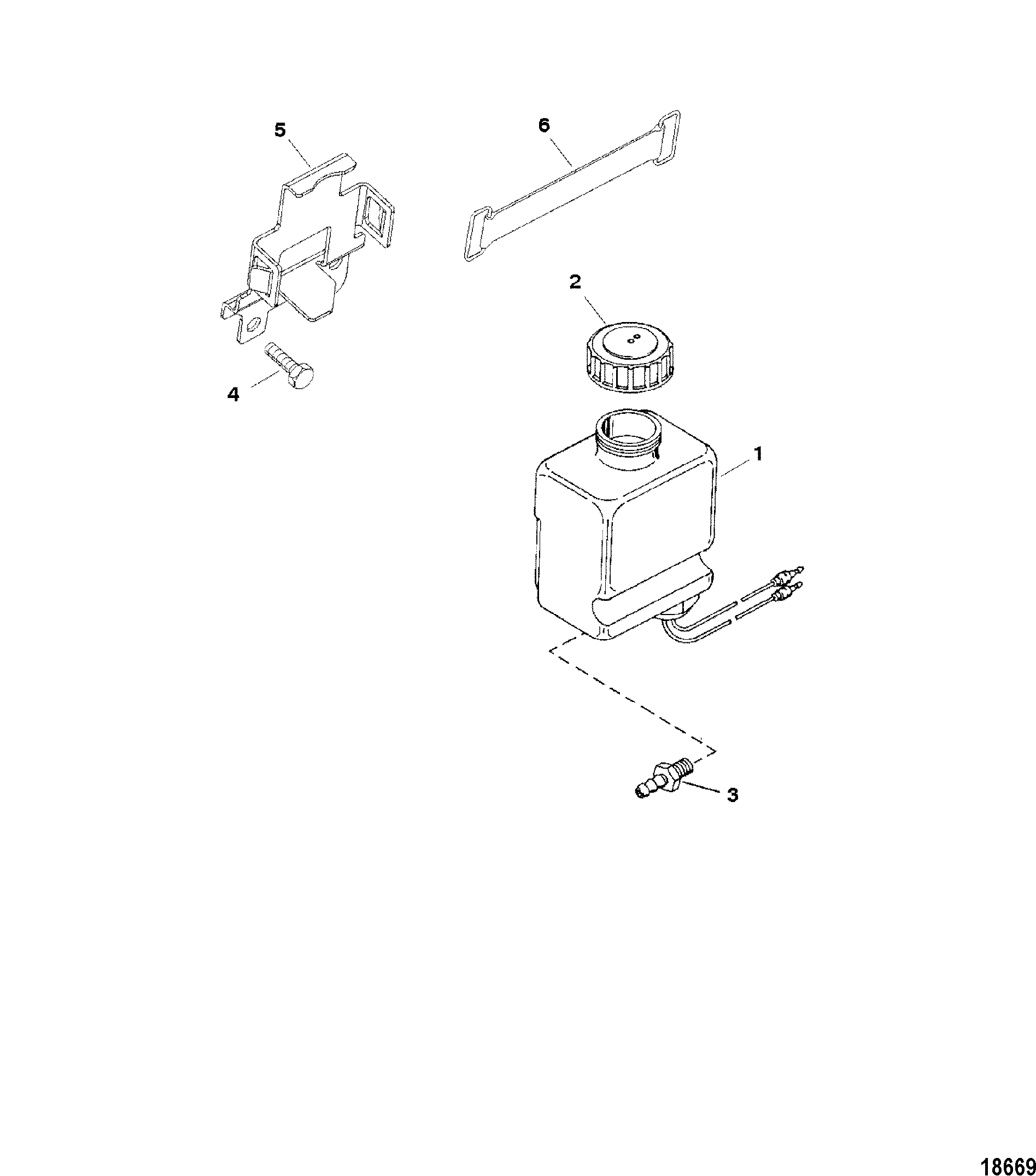

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header And Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Harness Assembly-EFI Wiring
- Intake Manifold And Intake Plenum
- Mount Plate-Engine
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket(Bravo)
- Starter And Alternator Mount
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806193A51 | RESERVOIR ASSEMBLY, Oil | 1 | 806193A3 | |||||
| 2 | 36-8067271 | CAP, Drive Lube Monitor, Oil Bottle | 1 | 36-808625 | |||||
| 3 | 22-808624 | CONNECTOR | 1 | ||||||
| 4 | 10-98261 | SCREW, (.375-16 x .750) | 2 | ||||||
| 5 | 860065A1 | BRACKET KIT, Oil Bottle | 1 | ||||||
| 6 | 808023T | STRAP, Bracket | 1 |
