525 SC (Gen 6) - Serial 0F745260 Thru 0F877734 - Carburetor And Linkage

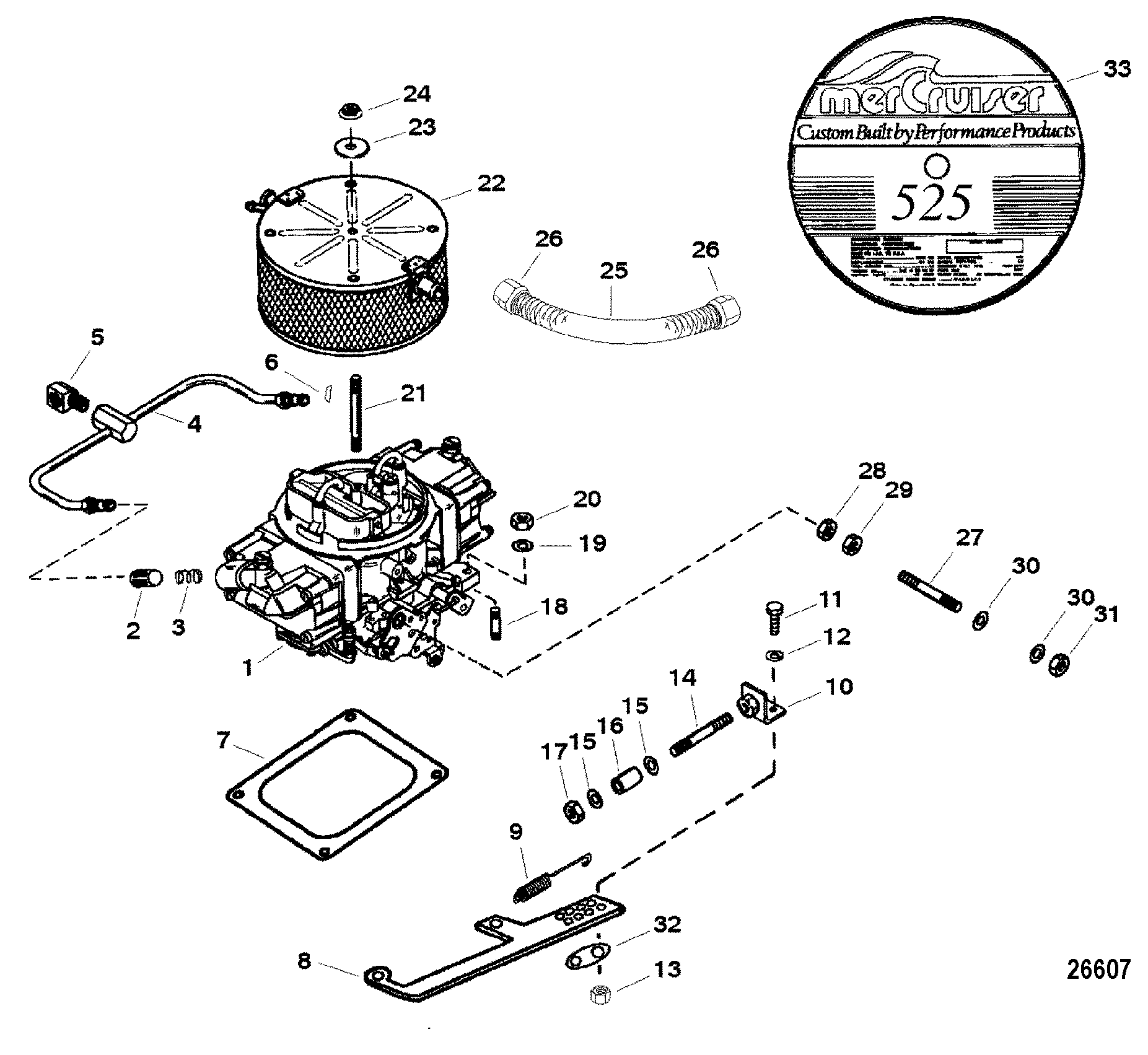

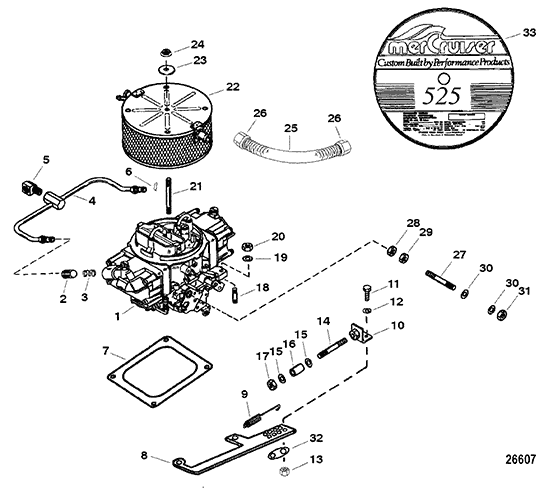

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo Models)
- Electrical Components (0F745260 Thru 0F877734)
- Electrical Components (0K000012 Thru 0L415623)
- Exhaust Block Off Plate
- Exhaust Header-Tailpipe (0K000012 Thru 0L415623)
- Exhaust Manifold-Elbow (0F745260 Thru 0F877734)
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-808011A1) (Driveline)
- Starter Assembly (50-8M8021116) (Bravo Plug In)
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 846000T3 | CARBURETOR, Blue | 1 | 12377A6 | This Part is No Longer Available | ||||
| 2 | 24-48143 | SPRING, Filter | 2 | ||||||
| 3 | 35-93568 | FILTER | 2 | ||||||
| 4 | 32-12837A1 | LINE ASSEMBLY, Fuel Inlet | 1 | This Part is No Longer Available | |||||
| 5 | 22-93385 | FITTING, (90 Degree), Fuel Inlet Tube | 1 | ||||||
| 6 | 27-848438 | GASKET, Flair - Copper | 2 | ||||||
| - | 8M0050786 | REBUILD KIT, Carburetor Overhaul | 1 | 822386 | |||||
| - | 27-42270A1 | GASKET SET, Carburetor | 1 | ||||||
| - | 1396-9860 | POWER VALVE | 1 | ||||||
| - | 32-42265 | TUBE, Bowl Vent | 1 | ||||||
| - | 1399-650898 | JET, Main (.125) Primary - Port | 1 | ||||||
| - | 1399-650898 | JET, Main (.125) Primary - Starboard | 1 | ||||||
| - | 1399-650898 | JET, Main (.125) Secondary - Port | 1 | ||||||
| - | 1399-650898 | JET, Main (.125) Secondary - Starboard | 1 | ||||||
| 7 | 27-42270A1 | GASKET | 1 | 27-12732 | 2 | ||||
| 8 | 128493 | BRACKET, Throttle | 1 | This Part is No Longer Available | |||||
| 9 | 24-897454 | SPRING, Throttle Return | 1 | 24-32817 | |||||
| 10 | 15017 | BRACKET, Throttle | 1 | ||||||
| 11 | 10-78291 | SCREW, (.190-24 x .500) | 2 | ||||||
| 12 | 13-26996 | LOCKWASHER, (#10) | 2 | ||||||
| 13 | 11-79989 | NUT, (#10-24) | 2 | ||||||
| 14 | 16-98851 | STUD, Cable | 1 | No longer made, limited availability | |||||
| 15 | 12-69056 | WASHER, (.255 x .625 x .0312), Cable Stud | 2 | 12-21631 | |||||
| 16 | 23-31866 | SPACER, (.26 x .31 x .64), Cable Stud | 1 | ||||||
| 17 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
| 18 | 16-96108 | STUD (.312 x 2.160) | 4 | This Part is No Longer Available | |||||
| 19 | 12-848136 | WASHER, (.328 x .680 x .190) | 2 | ||||||
| 19 | 12-20084 | WASHER, (.328 x .562 x .062) | 2 | ||||||
| 20 | 11-82670911 | NUT, (.312-24) | 4 | 11-35814 | |||||
| 21 | 16-30668 | STUD, (.312-18/.312-24 x 2.812) | 1 | ||||||
| 22 | 8486201 | ARRESTOR, Flame | 1 | 848620 | This Part is No Longer Available | ||||
| 23 | 12-22753 | WASHER | 1 | ||||||
| 24 | 11-82670911 | NUT, (.312-24) | 1 | 11-35814 | |||||
| 25 | 32-821284A8 | HOSE ASSEMBLY (16.00 Inches) Vent | 2 | ||||||
| 26 | 54-84763012 | COVER, Clamp End, Vent Hose | 4 | This Part is No Longer Available | |||||
| 27 | 16-728091 | STUD, (.250-20/.250-28 x 1.620), Throttle Cable To Carburetor | 1 | 16-72809 | |||||
| 28 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
| 29 | 11-21825 | NUT, (.250-28) | 1 | ||||||
| 30 | 12-29245 | WASHER, (.281 x .500 x .060) | 2 | ||||||
| 31 | 11-8267098 | NUT, (.250-20) | 1 | 11-56374 | |||||
| 32 | 53-782012 | CLIP | 1 | This Part is No Longer Available | |||||
| 33 | 37-848599 | DECAL, Flame Arrestor | 1 | ||||||
| - | 27-827014A98 | GASKET SET, Engine Overhaul | 1 | 27-827014A97 |
