525 SC (Gen 6) - Serial 0F745260 Thru 0F877734 - Exhaust Manifold-Elbow (0F745260 Thru 0F877734)

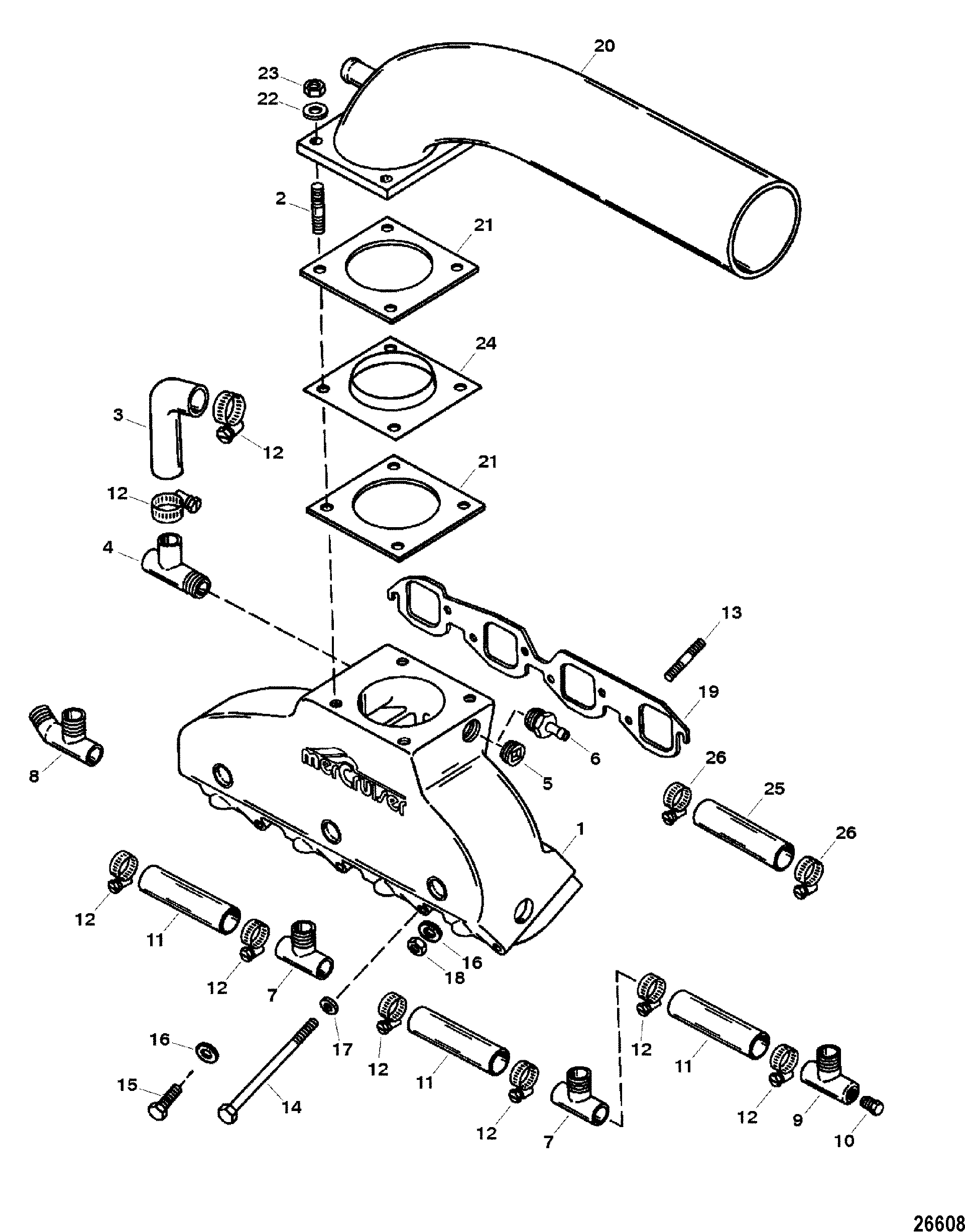

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo Models)
- Electrical Components (0F745260 Thru 0F877734)
- Electrical Components (0K000012 Thru 0L415623)
- Exhaust Block Off Plate
- Exhaust Header-Tailpipe (0K000012 Thru 0L415623)
- Exhaust Manifold-Elbow (0F745260 Thru 0F877734)
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-808011A1) (Driveline)
- Starter Assembly (50-8M8021116) (Bravo Plug In)
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 814901A5 | MANIFOLD ASSEMBLY, Exhaust - Port | 1 | ||||||
| 1 | 814901T6 | MANIFOLD ASSEMBLY, Exhaust - Starboard | 1 | 814901A6 | |||||
| 2 | 16-815214 | STUD | 8 | ||||||
| 3 | 32-8152121 | HOSE, Manifold To Exhaust Pipe | 2 | ||||||
| 4 | 22-816035 | FITTING | 2 | ||||||
| 5 | 19-815203 | PLUG, Pipe | 2 | ||||||
| 6 | 22-818768 | FITTING, Straight | 2 | ||||||
| 7 | 22-815208 | FITTING, Tee | 4 | This Part is No Longer Available | |||||
| 8 | 22-815210 | FITTING, Tee | 2 | This Part is No Longer Available | |||||
| 9 | 22-815209 | FITTING, Tee | 2 | This Part is No Longer Available | |||||
| 10 | 19-815211 | PLUG, Pipe - Drain | 2 | This Part is No Longer Available | |||||
| 11 | 32-815215 | HOSE | 6 | ||||||
| 12 | 54-815207 | CLAMP | 16 | ||||||
| 13 | 16-821279 | STUD (2.187 Inches) | 4 | ||||||
| 14 | 10-821107 | SCREW, (.375-16 x 3.00) | 8 | ||||||
| 15 | 10-812567 | SCREW, (.375-16 x 1.625) | 4 | ||||||
| 16 | 12-20572 | WASHER, (.390 x .750 x .093) | 8 | ||||||
| 17 | 12-37828 | WASHER, (.390 x .625 x .062) | 8 | ||||||
| 18 | 11-25269 | NUT, (.375-24) | 4 | ||||||
| 19 | 27-46820 | 676-9-61400 | 700-33760 | GASKET, Exhaust Manifold To Head | 2 | 2 | |||
| 20 | 818498A1 | TAILPIPE ASSEMBLY, Exhaust | 2 | This Part is No Longer Available - Standard | |||||
| 20 | 818499A1 | TAILPIPE ASSEMBLY, Exhaust | OPT | This Part is No Longer Available - 3.00 Inch | |||||
| 20 | 818500A1 | TAILPIPE ASSEMBLY, Exhaust | OPT | 6.00 Inch | |||||
| 21 | 27-848147 | GASKET, Exhaust Elbow | 2 | ||||||
| 22 | 12-49112 | WASHER | 8 | This Part is No Longer Available | |||||
| 23 | 11-68411 | NUT, (.375-16) | 8 | No longer made, limited availability | |||||
| 24 | 816037 | PLATE, Diffuser | 2 | ||||||
| 25 | 32-688941 | HOSE, (48.00 Inches Bulk), Cut 6.00 Inches | 1 | ||||||
| 26 | 54-815504105 | CLAMP, Worm Gear | 2 | ||||||
| 6 | 22-818768 | FITTING, Straight | 2 | ||||||
| - | 27-827014A98 | GASKET SET, Engine Overhaul | 1 | 27-827014A97 |
