525 SC (Gen 6) - Serial 0F745260 Thru 0F877734 - Power Steering Components

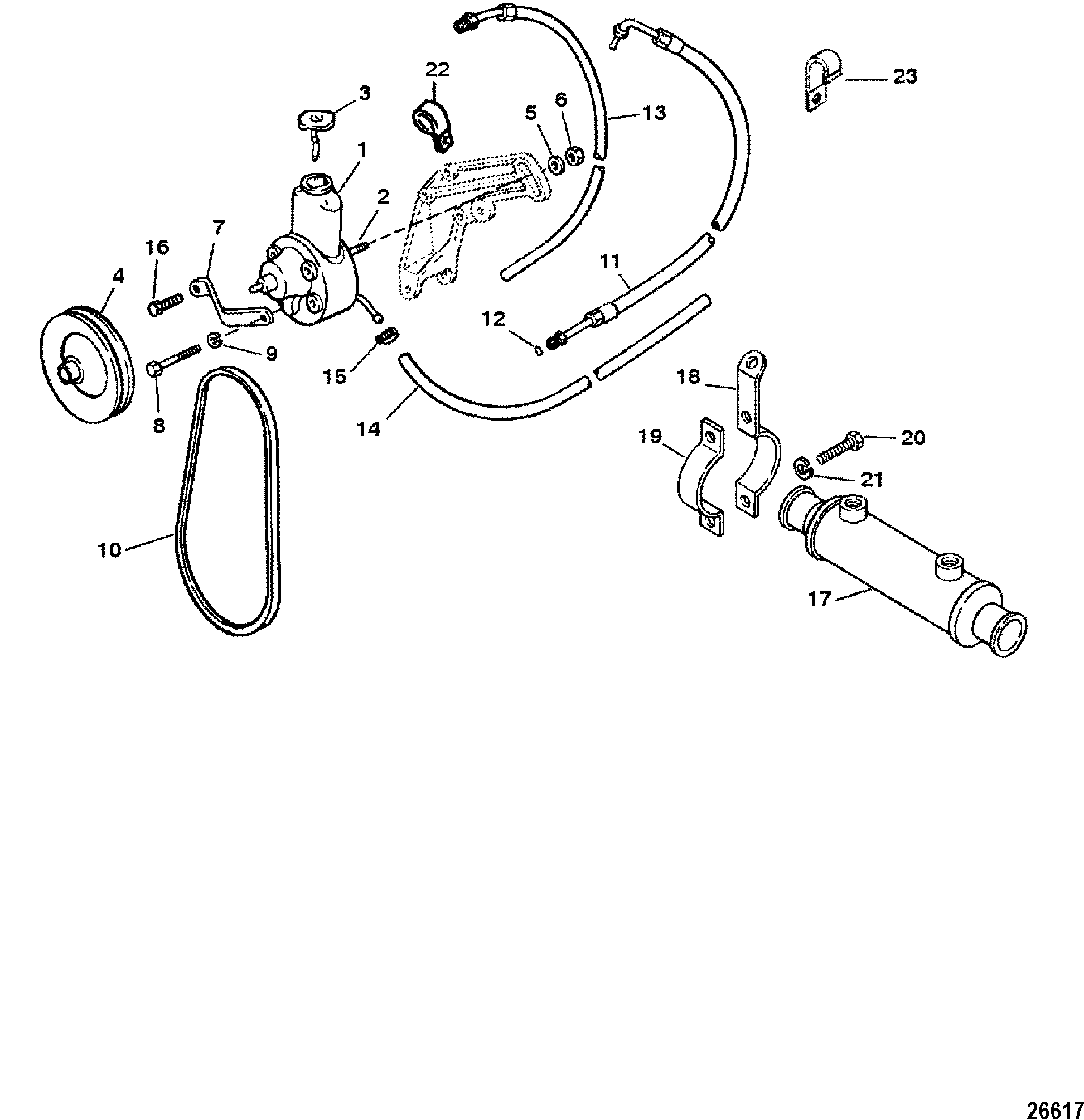

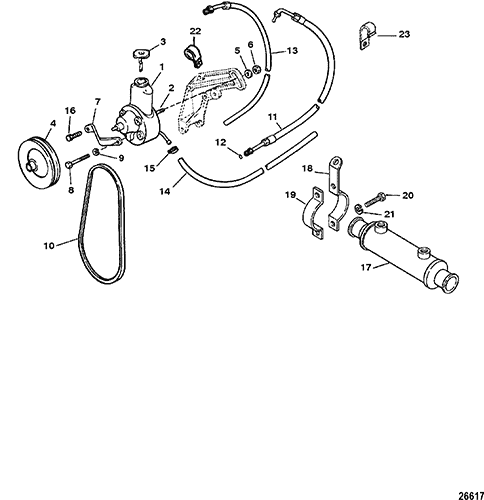

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo Models)
- Electrical Components (0F745260 Thru 0F877734)
- Electrical Components (0K000012 Thru 0L415623)
- Exhaust Block Off Plate
- Exhaust Header-Tailpipe (0K000012 Thru 0L415623)
- Exhaust Manifold-Elbow (0F745260 Thru 0F877734)
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-808011A1) (Driveline)
- Starter Assembly (50-8M8021116) (Bravo Plug In)
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A25 | PUMP ASSEMBLY, Power Steering - Blue | 1 | ||||||
| 2 | 16-41877 | STUD, (M10) | 1 | ||||||
| 3 | 36-95805 | CAP | 1 | ||||||
| 4 | 738733 | PULLEY, Blue | 1 | This Part is No Longer Available | |||||
| 5 | 12-34567 | WASHER, Brace Slot | 3 | ||||||
| 6 | 11-90517 | NUT, (M10) | 2 | ||||||
| 7 | 847765 | BRACE | 1 | ||||||
| 8 | 10-40001188 | SCREW, (M10 x 20) | 1 | ||||||
| 9 | 13-400248 | LOCKWASHER, (M10) | 1 | ||||||
| 10 | 57-96834Q | V BELT | 1 | 57-96834 | |||||
| 11 | 32-98494 | HOSE ASSEMBLY, Fittings On Both Ends | 1 | ||||||
| 12 | 25-89879 | O-RING, (.301 x .064) | 1 | ||||||
| 13 | 32-9884339 | HOSE ASSEMBLY, (72.00 Inches Bulk), Cut As Required - Fittings On One End | 1 | ||||||
| 14 | 32-8M0062341 | HOSE, (53.00 Inches Bulk), Cut As Required - Pump To Oil Cooler | 1 | 32-5251914 | |||||
| 15 | 54-180761 | CLAMP, Worm Gear | 3 | ||||||
| 16 | 10-825427 | SCREW, (.437-14 x 1.250) | 1 | ||||||
| 17 | 99356A2 | COOLER, Power Steering Oil | 1 | ||||||
| 18 | 63820F3 | BRACKET, Long Style | 1 | 638203 | |||||
| 19 | 563281 | BRACKET, Short Style | 1 | ||||||
| 20 | 10-49668 | SCREW, (.250-20 x .750) | 2 | ||||||
| 21 | 13-26992 | LOCKWASHER, (.250) | 2 | ||||||
| 22 | 54-848183 | J CLIP, Power Steering Hose To Bracket | 1 | ||||||
| 23 | 54-42553 | J CLIP, Power Steering Hose To Valve Cover | 2 |
