525 SC (Gen 6) - Serial 0F745260 Thru 0F877734 - Shift Bracket

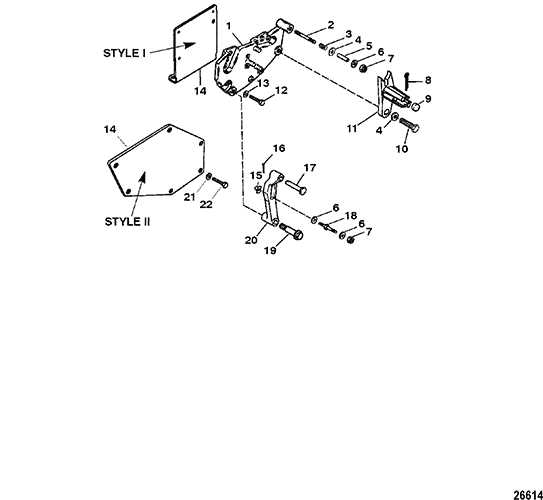

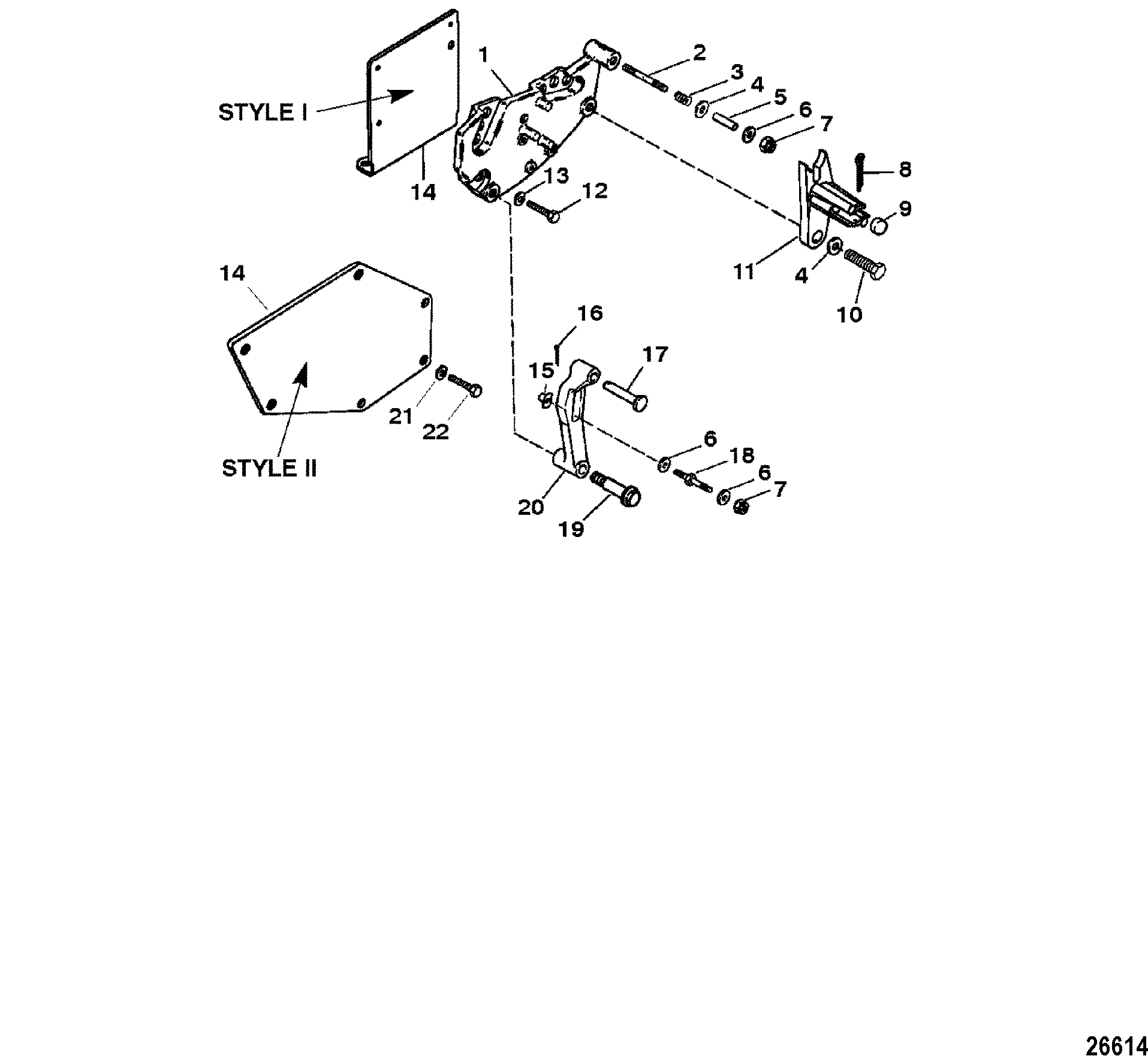

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo Models)
- Electrical Components (0F745260 Thru 0F877734)
- Electrical Components (0K000012 Thru 0L415623)
- Exhaust Block Off Plate
- Exhaust Header-Tailpipe (0K000012 Thru 0L415623)
- Exhaust Manifold-Elbow (0F745260 Thru 0F877734)
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-808011A1) (Driveline)
- Starter Assembly (50-8M8021116) (Bravo Plug In)
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | BRACKET ASSEMBLY, Shift | 1 | 99237A10 | SN# 0F745260 THRU 0F877734 | ||||
| 1 | 807962A15 | BRACKET ASSEMBLY, Shift | 1 | 807962A3 | SN# 0K000012 THRU 0L415623 | ||||
| 2 | 16-865154A02 | STUD, (.250-20/.250-28 x 2.120), Shift Cable | 1 | 16-987981 | |||||
| 3 | 24-98880 | SPRING, Shift Cable Stud | 1 | ||||||
| 4 | 12-56720 | WASHER, (.330 x .750 x .060) | 2 | ||||||
| 5 | 23-90523 | SPACER, (.420 x .440 x .750) Cad Plate | 1 | ||||||
| 6 | 12-35462 | WASHER, (.2656 x .625 x .0625) | 4 | ||||||
| 7 | 11-8267119 | NUT, (.250-28) | 2 | 11-13438 | |||||
| 8 | 18-328571 | COTTER PIN | 1 | 18-32857 | |||||
| 9 | 23-98828 | SPACER | 1 | ||||||
| 10 | 10-53167 | SCREW, (.312-18 x .880) | 1 | ||||||
| 11 | 865434A02 | RETAINER, Shift Cable | 1 | 123811 | |||||
| 12 | 10-98256 | SCREW, (.250-28 x .500) | 3 | SN# 0F745260 THRU 0F877734 | |||||
| 12 | 10-28635 | SCREW, (.250-20 x .620) | 3 | SN# 0K000012 THRU 0L415623 | |||||
| 13 | 13-26992 | LOCKWASHER, (.250) | 3 | ||||||
| 14 | 8M0052632 | PLATE, Adapter | 1 | 816283 | Style I SN# 0F745260 THRU 0F877734 | ||||
| 14 | 848887 | PLATE, Adapter | 1 | Style II SN# 0K000012 THRU 0L415623 | |||||
| 15 | 11-63341 | TEE NUT, Shift Cable Stud | 1 | ||||||
| 16 | 18-210711 | COTTER PIN | 1 | 18-21071 | |||||
| 17 | 17-68402 | PIN, (.250 x 1.13), Shoulder - Shaft Lever | 1 | ||||||
| 18 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor - Shift Cable | 1 | ||||||
| 19 | 10-13743 | SCREW, (.312-18 x 1.843), Shoulder | 1 | ||||||
| 20 | 863911A12 | LEVER, Shift | 1 | 138981 | |||||
| 21 | 13-26992 | LOCKWASHER, (.250) | 3 | SN# 0K000012 THRU 0L415623 | |||||
| 22 | 10-73286 | SCREW, (.250-20 x .500) | 3 | SN# 0K000012 THRU 0L415623 |
