525 SC (Gen 6) - Serial 0F745260 Thru 0F877734 - Starter And Alternator Mounting

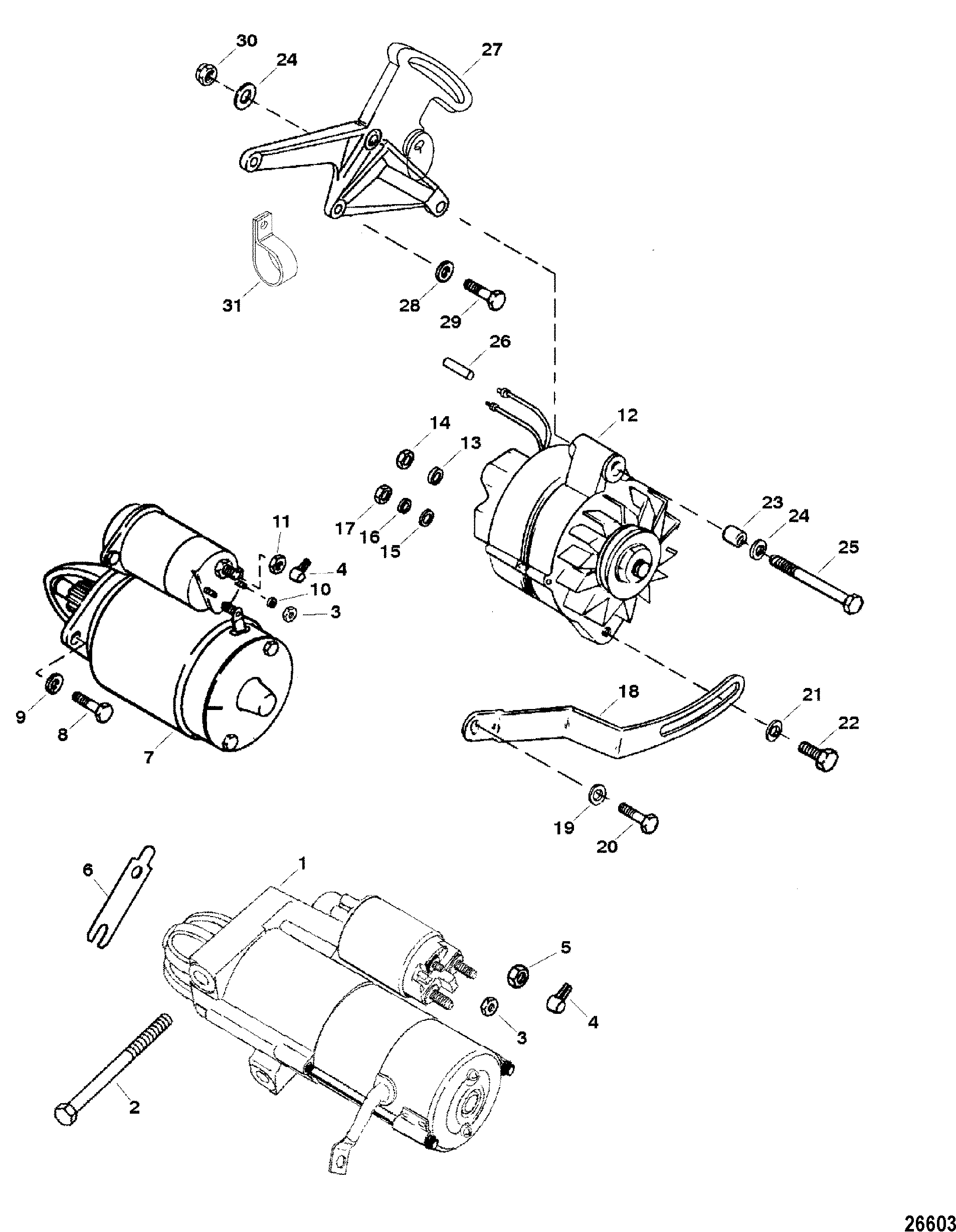

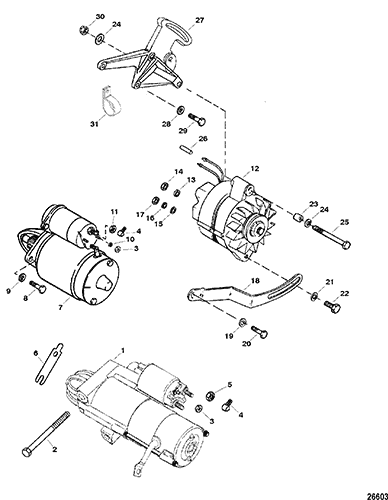

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo Models)
- Electrical Components (0F745260 Thru 0F877734)
- Electrical Components (0K000012 Thru 0L415623)
- Exhaust Block Off Plate
- Exhaust Header-Tailpipe (0K000012 Thru 0L415623)
- Exhaust Manifold-Elbow (0F745260 Thru 0F877734)
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-808011A1) (Driveline)
- Starter Assembly (50-8M8021116) (Bravo Plug In)
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-8M8021116 | STARTER ASSEMBLY | 1 | Bravo Plug In Models - NOTE: See Starter Assembly Section For Parts Breakdown | |||||
| 2 | 10-8053432 | SCREW, (.375-16 x 4.33), Special | 2 | Component Of Engine Gasket Set [27-827014A97] | |||||
| 3 | 11-400211 | NUT, (M5) | 1 | ||||||
| 4 | 85-79695T | BOOT, Insulator - Black | 1 | 85-79695 | |||||
| 5 | 11-401388 | NUT, (M8) | 1 | 11-400635 | |||||
| 6 | 15-8172721 | SHIM, Special | 1 | ||||||
| 7 | 50-808011A05 | STARTER ASSEMBLY | 1 | 50-808011A1 | Driveline Models - NOTE: See Starter Assembly Section For Parts Breakdown | ||||
| 8 | 10-47461 | SCREW, (.437-14 x 1.00) | 2 | ||||||
| 9 | 13-32993 | LOCKWASHER, (.437) | 2 | ||||||
| 10 | 13-26996 | LOCKWASHER, (#10) | 1 | ||||||
| 11 | 11-4013610 | NUT, (M10) | 1 | 11-400266 | |||||
| 12 | 8171191 | ALTERNATOR ASSEMBLY, Blue | 1 | NOTE: See Alternator Section For Parts Breakdown | |||||
| 13 | 13-26992 | LOCKWASHER, (.250) | 1 | ||||||
| 14 | 11-8267098 | NUT, (.250-20) | 1 | 11-56374 | |||||
| 15 | 12-96457 | WASHER | 1 | ||||||
| 16 | 13-26996 | LOCKWASHER, (#10) | 1 | ||||||
| 17 | 11-79989 | NUT, (#10-24) | 1 | ||||||
| 18 | 85013T | BRACE, Alternator Adjustment | 1 | ||||||
| 19 | 12-45176 | WASHER, (.453 x .812 x .105) | 1 | ||||||
| 20 | 10-825427 | SCREW, (.437-14 x 1.250) | 1 | ||||||
| 21 | 12-26168 | WASHER | 1 | ||||||
| 22 | 10-29198 | SCREW AND LOCKWASHER, (.312-18 x .875) | 1 | ||||||
| 23 | 23-33186 | BUSHING | 1 | ||||||
| 24 | 12-20553 | WASHER, (.406 x .734 x .063) | 3 | ||||||
| 25 | 10-48308 | SCREW, (.375-24 x 3.750) | 1 | ||||||
| 26 | 5790811 | SLEEVE, (10.00 Inches Bulk), Cut As Required - Alternator Lead | 1 | ||||||
| 27 | 848146T | BRACKET, Alternator Mount | 1 | 848146 | |||||
| 28 | 12-45176 | WASHER, (.453 x .812 x .105) | 3 | ||||||
| 29 | 10-99204 | SCREW, (.437-14 x 1.00) | 3 | ||||||
| 30 | 11-23161 | NUT, (.375-24) | 1 | ||||||
| 31 | 54-848130 | CLIP, Circulating Pump Hose | 1 | No longer made, limited availability |
