525 SC (Gen 6) - Serial 0F745260 Thru 0F877734 - Crankshaft - Pistons - Connecting Rods

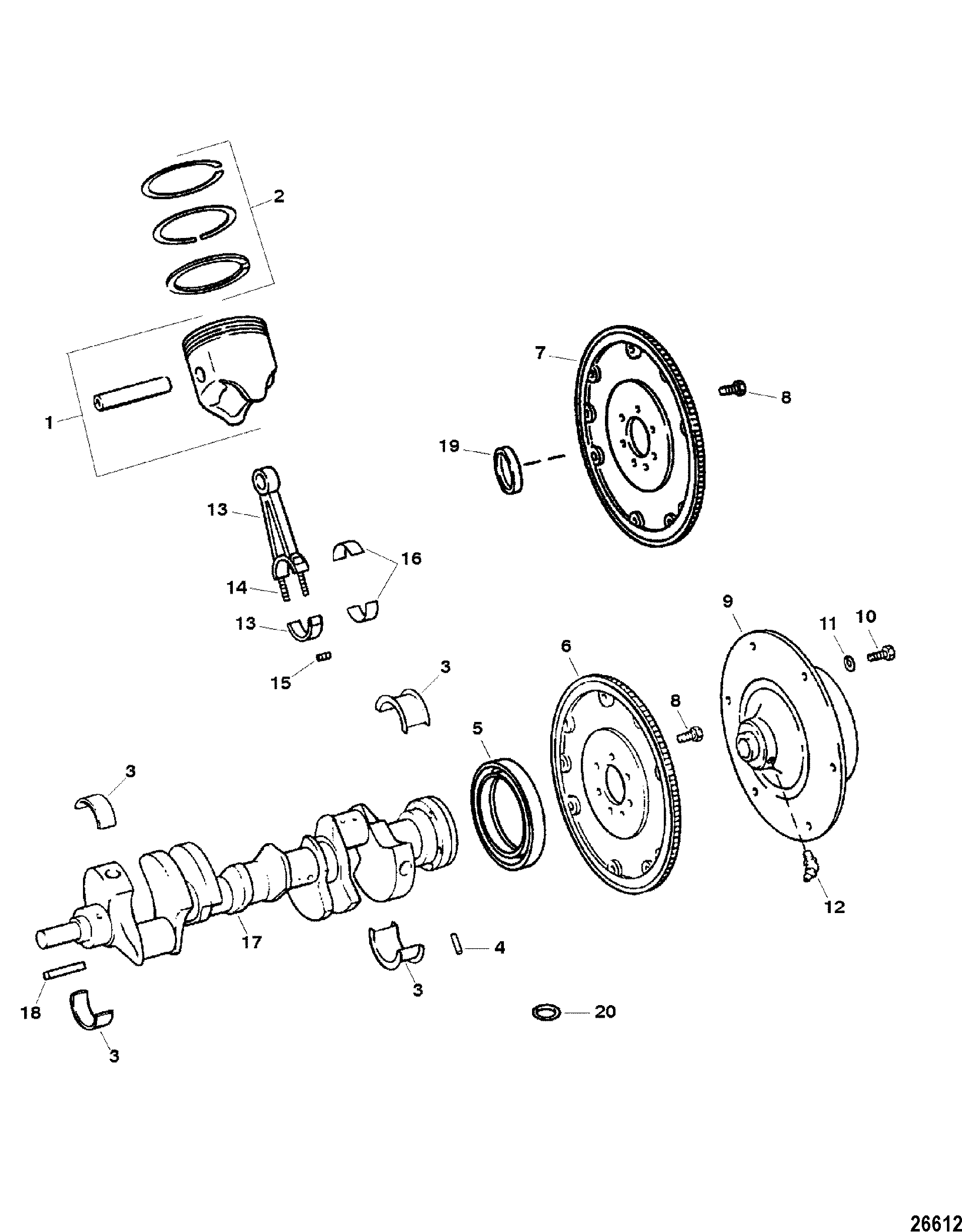

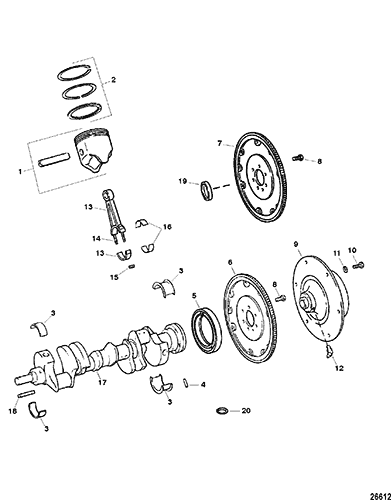

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo Models)
- Electrical Components (0F745260 Thru 0F877734)
- Electrical Components (0K000012 Thru 0L415623)
- Exhaust Block Off Plate
- Exhaust Header-Tailpipe (0K000012 Thru 0L415623)
- Exhaust Manifold-Elbow (0F745260 Thru 0F877734)
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-808011A1) (Driveline)
- Starter Assembly (50-8M8021116) (Bravo Plug In)
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 798-817114 | PISTON ASSEMBLY, Standard | 8 | This Part is No Longer Available | |||||
| 2 | 39-67127 | RING SET, Piston - Standard | 8 | ||||||
| 1 | 798-817114T1 | PISTON ASSEMBLY, .030 Oversize | 8 | 798-817114A1 | This Part is No Longer Available | ||||
| 2 | 39-848350030 | RING SET, Piston - .030 Oversize | 8 | ||||||
| 3 | 23-818473001 | BEARING SET, Main (Standard) | 1 | 23-818473 | |||||
| 3 | 23-818474 | BEARING SET, Main (.001 Undersize) | AR | ||||||
| 3 | 23-818475 | BEARING SET, Main (.002 Undersize) | AR | ||||||
| 3 | 818476001 | BEARING SET, Main (.010 Undersize) | AR | 23-818476 | |||||
| 3 | 23-818477 | BEARING SET, Main (.020 Undersize) | AR | ||||||
| 4 | 17-843378 | PIN, Dowel (.250 Diameter) | 1 | 17-35312 | |||||
| 5 | 26-811554 | SEAL, Oil | 1 | 2 | |||||
| 6 | 230-843374T1 | FLYWHEEL | 1 | 230-811561 | |||||
| 7 | 230-8115631 | FLYWHEEL | 1 | 230-811563 | Driveline Models - Gen VI | ||||
| 8 | 10-845757 | SCREW, (.437-20 x 1.00) | 6 | 10-49845 | |||||
| 9 | 861523A9 | COUPLER ASSEMBLY, Engine | 1 | 18311A17 | Design I | ||||
| 9 | 861523A9 | COUPLER ASSEMBLY, Engine - Aluminium Hub | 1 | Design II | |||||
| 9 | 861523A18 | COUPLER ASSEMBLY, Engine - Steel Hub | 1 | Design III | |||||
| 10 | 10-35091 | SCREW, (.375-16 x 1.00) | 6 | ||||||
| 11 | 12-20572 | WASHER, (.390 x .750 x .093) | 6 | ||||||
| 12 | 22-49099 | FITTING, Grease | 2 | ||||||
| 13 | 614-9641T | CONNECTING ROD ASSEMBLY | 8 | 614-9641 | |||||
| 14 | 10-19234 | SCREW, (.437-20), Connecting Rod Cap | 16 | ||||||
| 15 | 11-37493 | NUT, (.375-24), Connecting Rod Cap Bolt | 16 | ||||||
| 16 | 23-85726001 | BEARING SET, Conn Rod (Standard) | 8 | 23-85726 | |||||
| 16 | 23-85727 | BEARING SET, Conn Rod (.001 Undersize) | AR | ||||||
| 16 | 23-85728 | BEARING SET, Conn Rod (.002 Undersize) | AR | This Part is No Longer Available | |||||
| 16 | 23-85691 | BEARING SET, Conn Rod (.010 Undersize) | AR | ||||||
| 16 | 23-85729 | BEARING SET, Conn Rod (.020 Undersize) | AR | ||||||
| 17 | 429-811552 | CRANKSHAFT | 1 | ||||||
| 18 | 28-845607 | KEY, Crankshaft | 1 | 28-811558 | |||||
| 19 | 23-49126 | BUSHING, Pilot - Crankshaft | 1 | Driveline Models Only | |||||
| 20 | 25-69756 | O-RING, (.500 Inch), #5 Bearing Cap Hole | 1 | 25-811528 | 2 | ||||
| - | 27-827014A98 | GASKET SET, Engine Overhaul | 1 | 27-827014A97 |
