525 SC (Gen 5) GM 454 V-8 1992-1995 - Serial 0D456000 Thru 0F348963 - Crankshaft and Pistons and Conn. Rods

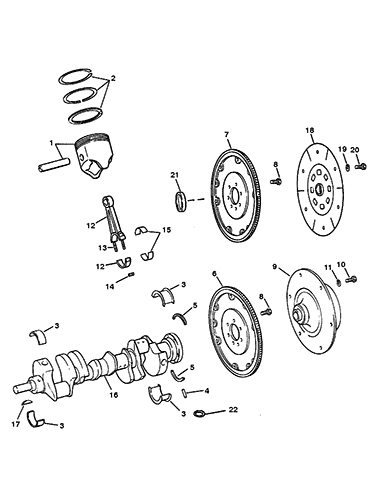

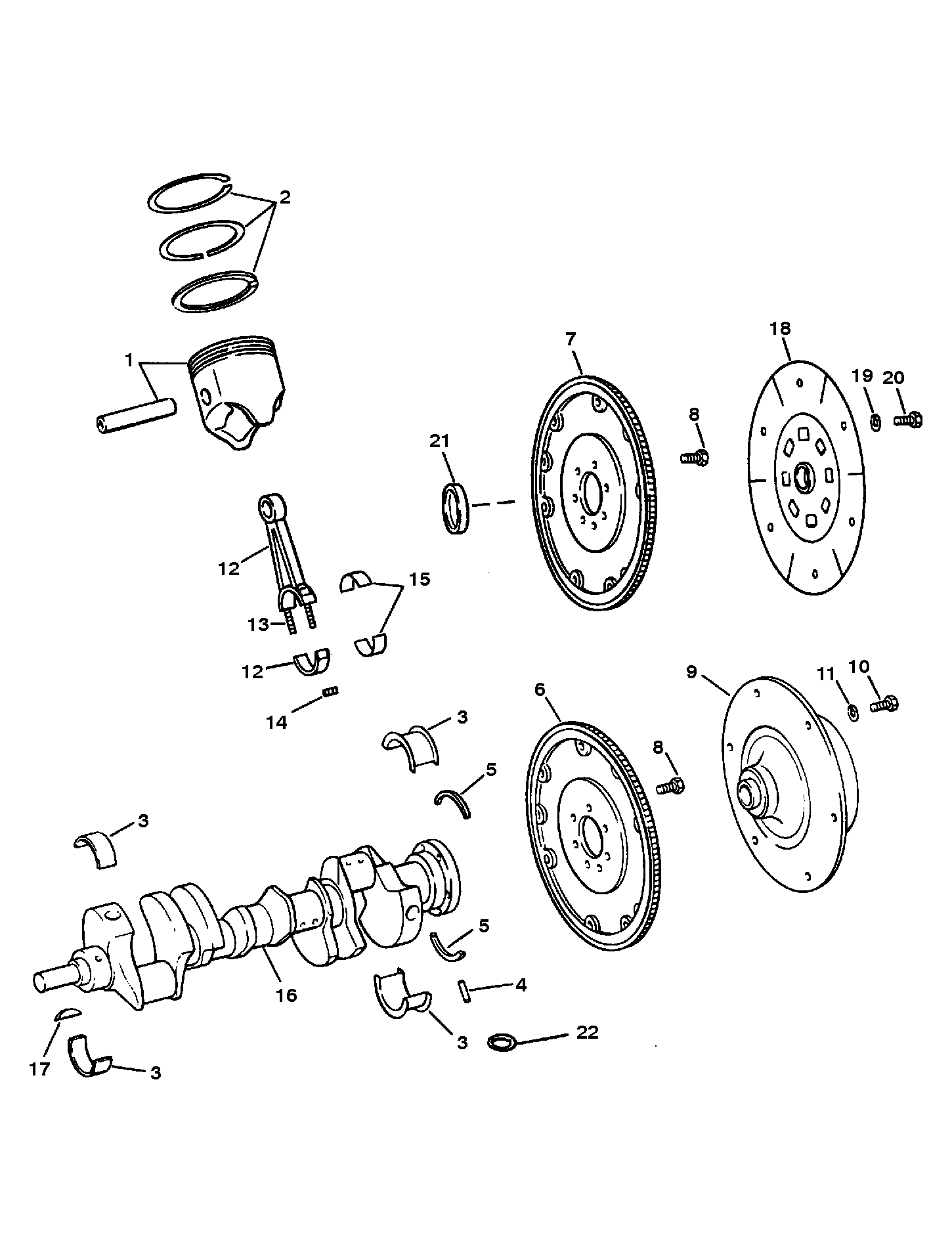

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite # 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 798-817114 | PISTON ASSEMBLY (STANDARD) | 8 | This Part is No Longer Available | |||||
| 2 | 39-67127 | RING KIT-Piston (STANDARD) | 8 | ||||||
| 1 | 798-817114T1 | PISTON ASSEMBLY (.030 O.S.) | 8 | 798-817114A1 | This Part is No Longer Available | ||||
| 2 | 39-848350030 | RING KIT-Piston (.030 O.S.) | 1 | ||||||
| 3 | 23-818473001 | BEARING SET (STANDARD) | 1 | 23-818473 | |||||
| 3 | 23-818474 | BEARING SET (.001 U.S.) | AR | 3 | |||||
| 3 | 23-818475 | BEARING SET (.002 U.S.) | AR | 3 | |||||
| 3 | 818476001 | BEARING SET (.010 U.S.) | AR | 23-818476 | 3 | ||||
| 3 | 23-818477 | BEARING SET (.020 U.S.) | AR | 3 | |||||
| 4 | 17-843378 | PIN-Dowel (.250 Dia.) | 1 | 17-35312 | |||||
| 5 | 26-14756 | SEAL-Oil | 1 | (S/N: 0D456000 - 0D725808) 14,5 | |||||
| 5 | 26-811554 | SEAL-Oil | 1 | (S/N: 0D763746 - 0F348963) 14,6 | |||||
| 6 | 230-6540 | FLYWHEEL | 1 | (S/N: 0D456000 - 0D725808) 5 | |||||
| 6 | 230-843374T1 | FLYWHEEL | 1 | 230-811561 | (S/N: 0D763746 - 0F348963) 6 | ||||
| 7 | 230-8115631 | FLYWHEEL | 1 | 230-811563 | (GEN V DRIVELINE OR TRANSMISSION MODELS) | ||||
| 7 | 230-5534 | FLYWHEEL | 1 | This Part is No Longer Available (MARK IV DRIVELINE OR TRANSMISSION MODELS) | |||||
| 8 | 10-845757 | SCREW (.437-20 x 1.00) | 6 | 10-49845 | |||||
| 9 | 861523A9 | COUPLING ASSEMBLY-Engine | 1 | 18311A17 | (BRAVO MODELS ONLY) | ||||
| 10 | 10-14883 | SCREW (.375-16 x 1.125) | 6 | ||||||
| 11 | 12-20572 | WASHER | 6 | ||||||
| NS | 22-49099 | FITTING-Grease | 2 | ||||||
| 12 | 614-8M0084554 | CONNECTING ROD ASSEMBLY | 8 | 614-9641 | |||||
| 13 | 10-19234 | BOLT-Conn Rod Cap | 16 | ||||||
| 14 | 11-37493 | NUT-Conn Rod Cap Bolt | 16 | No longer made, limited availability | |||||
| 15 | 23-85726001 | BEARING SET (STANDARD) | 8 | 23-85726 | |||||
| 15 | 23-85727 | BEARING SET (.001 U.S.) | AR | 3 | |||||
| 15 | 23-85728 | BEARING SET (.002 U.S.) | AR | This Part is No Longer Available 3 | |||||
| 15 | 23-85691 | BEARING SET (.010 U.S.) | AR | 3 | |||||
| 15 | 23-85729 | BEARING SET (.020 U.S.) | AR | 3 | |||||
| 16 | 429-5880 | CRANKSHAFT | 1 | This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5 | |||||
| 16 | 429-811552 | CRANKSHAFT | 1 | (S/N: 0D763746 - 0F348963) 6 | |||||
| 17 | 28-845607 | KEY-Crankshaft | 2 | 28-811558 | (S/N: 0D456000 - 0D725808) 5 | ||||
| 17 | 28-34466 | KEY-Crankshaft | 2 | (S/N: 0D763746 - 0F348963) 6 | |||||
| 18 | 8M0051206 | DRIVE PLATE | 1 | 816618 | (TRANSMISSION MODELS) | ||||
| 19 | 10-35091 | SCREW (.375-16 x 1.00) | 6 | (TRANSMISSION MODELS) | |||||
| 20 | 13-35048 | LOCKWASHER (.375) | 6 | (TRANSMISSION MODELS) | |||||
| 21 | 23-49126 | BUSHING-Pilot-Crankshaft | 1 | (DRIVELINE MODELS ONLY) | |||||
| 22 | 25-69756 | O RING (#5 Bearing Cap Oil Hole) | 1 | 25-811528 | (S/N: 0D763746 - 0F348963) 6 | ||||
| - | 27-817118A90 | Gasket Set | - | This Part is No Longer Available | |||||
| - | 27-827014A98 | Gasket Set | - | 27-827014A92 |
