525 SC (Gen 5) GM 454 V-8 1992-1995 - Serial 0D456000 Thru 0F348963 - Thermostat Housing Assembly

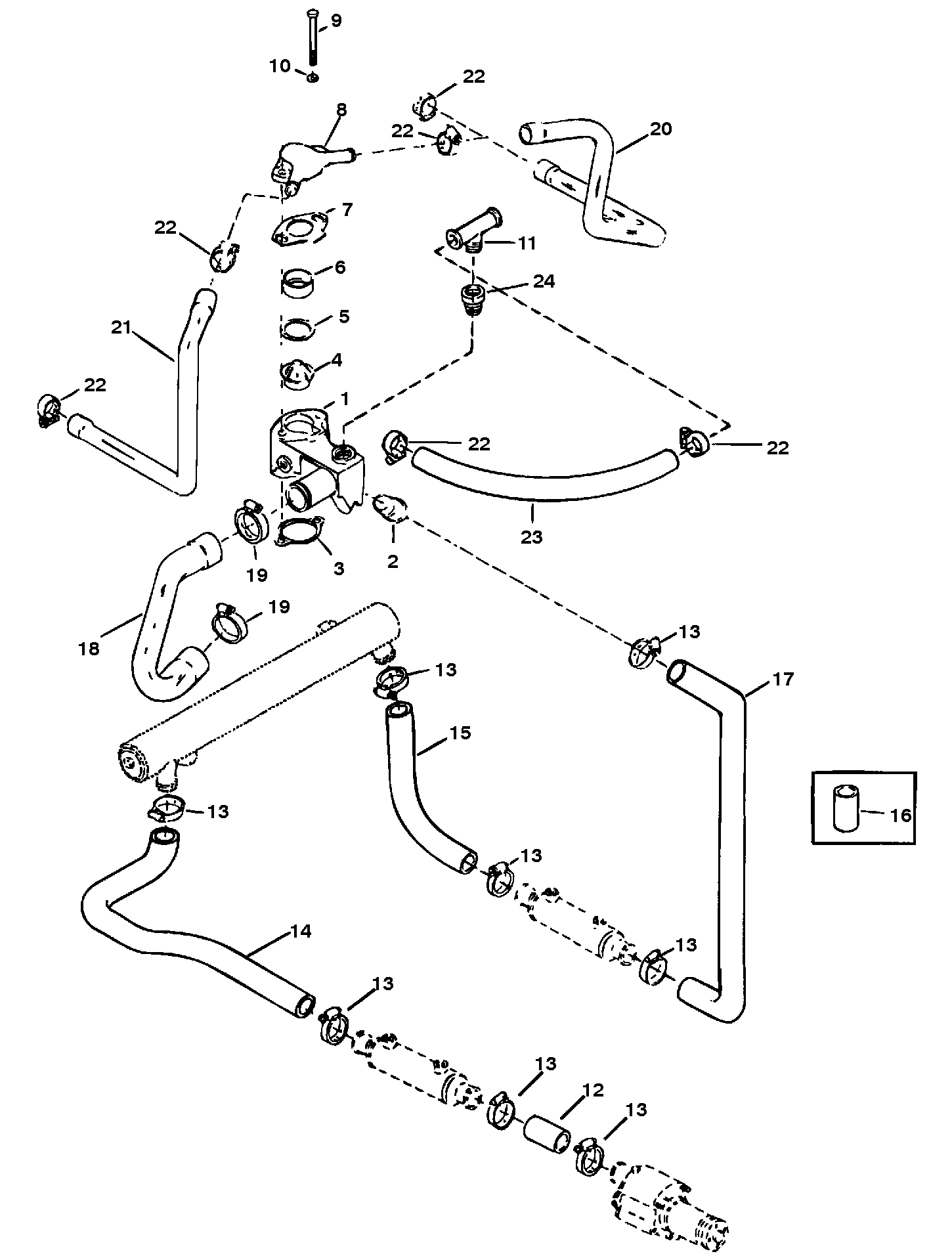

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite # 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 817131A1 | HOUSING ASSEMBLY-Thermostat | 1 | This Part is No Longer Available | |||||
| 2 | 23-47511 | SLEEVE | 1 | ||||||
| 3 | 27-530451 | GASKET-Thermostat Housing | 1 | 14 | |||||
| 4 | 807252T1 | THERMOSTAT (140_) | 1 | 8052731 | 4 | ||||
| 5 | 27-47510 | GASKET-Thermostat | 1 | 14 | |||||
| 6 | 23-47508T | SLEEVE-Thermostat | 1 | 23-47508 | |||||
| 7 | 27-418122 | GASKET-Thermostat Cover | 1 | 14 | |||||
| 8 | 47441A1 | COVER-Thermostat | 1 | ||||||
| 9 | 10-60410 | SCREW (.375-16 x 4.250) | 2 | ||||||
| 10 | 12-20553 | WASHER | 2 | ||||||
| 11 | 22-98477A2 | VALVE ASSEMBLY | 1 | ||||||
| 12 | 32-8M0062665 | HOSE-Water Pump to Oil Cooler | 1 | 32-5346170 | |||||
| 13 | 54-180766 | CLAMP | AR | 3 | |||||
| 14 | 32-816504 | HOSE-Oil Cooler to Transmission Cooler | 1 | ||||||
| 15 | 32-848956 | HOSE-Oil Cooler to Power Steering Cooler | 1 | 32-12818 | |||||
| 16 | 22-13177 | TUBE-Water Hose (NON POWER STEERING) | 1 | ||||||
| 17 | 32-816344 | HOSE-Thermostat Housing to Power Steering Cooler | 1 | This Part is No Longer Available | |||||
| 18 | 32-8163451 | HOSE-Thermostat Housing to Water Pump | 1 | This Part is No Longer Available | |||||
| 19 | 54-180769 | CLAMP | 2 | This Part is No Longer Available | |||||
| 20 | 32-816347 | HOSE-Thermostat Cover (PORT) | 1 | ||||||
| 21 | 32-848957 | HOSE-Thermostat Cover (STARBOARD) | 1 | 32-816346 | |||||
| 22 | 54-180764 | CLAMP-HOSE | 8 | (S/N: 0D456000 - 0D763745) 5 | |||||
| 22 | 54-84775218 | CLAMP-HOSE | 4 | (S/N: 0D763746 - 0F348963) 6 | |||||
| 23 | 32-8M0062614 | HOSE (48.00 In. Bulk) (Cut 17.00 In.) | 2 | 32-3322070 | (S/N: 0D456000 - 0D763745) 5 | ||||
| 23 | 32-847764A1 | HOSE ASSEMBLY (22.00 In.) | 1 | (S/N: 0D763746 - 0F348963) 6 | |||||
| 23 | 32-847764A2 | HOSE ASSEMBLY (17.00 In.) | 1 | This Part is No Longer Available (S/N: 0D763746 - 0F348963) 6 | |||||
| 24 | 22-847768 | FITTING-Adaptor | 1 | This Part is No Longer Available | |||||
| - | 27-817118A90 | Gasket Set | - | This Part is No Longer Available | |||||
| - | 27-827014A98 | Gasket Set | - | 27-827014A92 |
