525 SC (Gen 5) GM 454 V-8 1992-1995 - Serial 0D456000 Thru 0F348963 - Reservoir Bottle

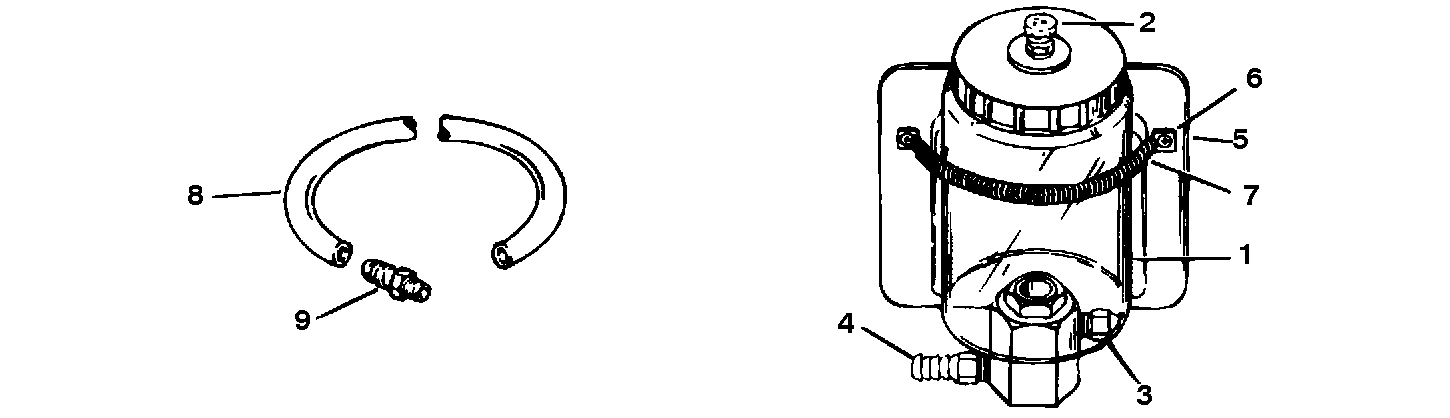

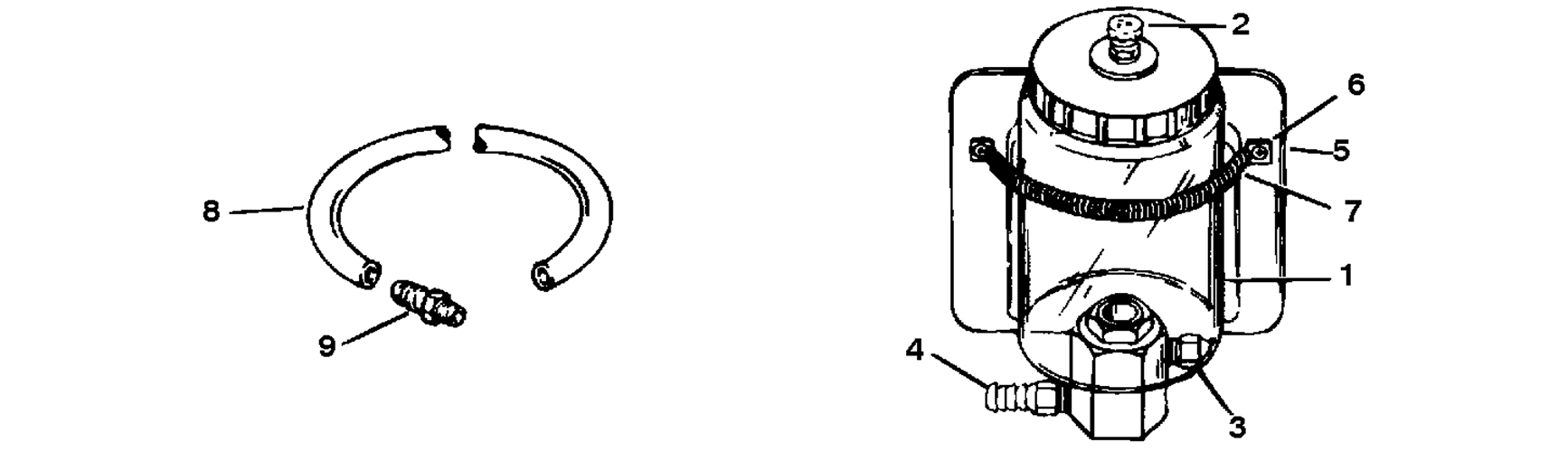

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 86250A2         BOTTLE ASSEMBLY-Reservoir 1

2 22-47902         FITTING-Breather 1

3 22-36382     700-21887   PLUG-Pipe 1

4 22-63187         FITTING-Hose 1

5 86030         BRACKET-Reservoir 1

6 67905         RETAINER-Reservoir Bottle 2

7 24-67908         SPRING-Reservoir Bracket 1

8 32-774572         HOSE 1

9 22-63186         FITTING-Hose 1
