525 SC (Gen 5) GM 454 V-8 1992-1995 - Serial 0D456000 Thru 0F348963 - Flywheel Housing (Bravo Plug-In Model)

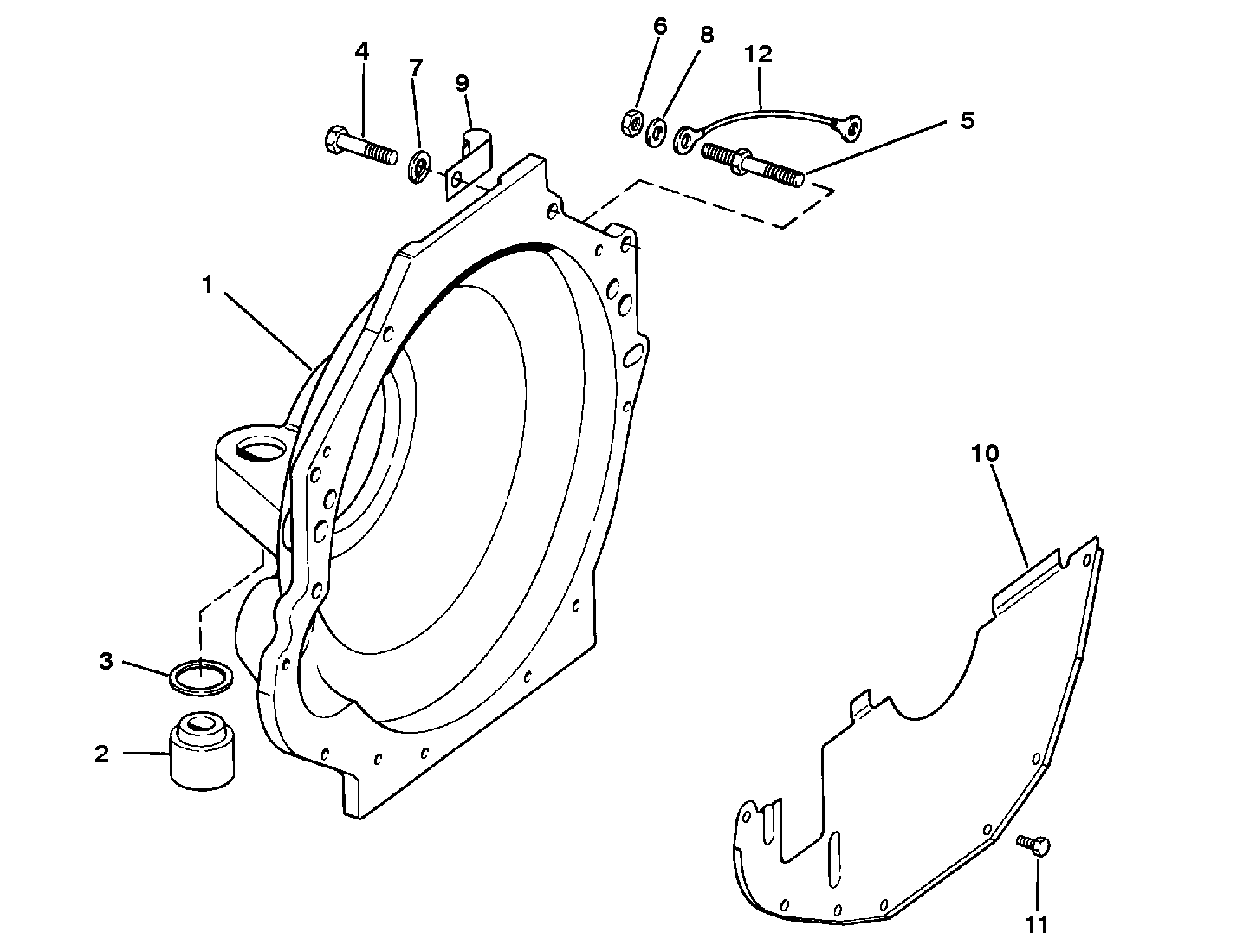

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite # 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865657A04 | HOUSING ASSEMBLY-Flywheel | 1 | 12675A7 | |||||
| 2 | 865330A02 | MOUNT-Rubber-Flywheel Housing | 2 | 88791 | |||||
| 3 | 23-99322 | 700-21050 | SPACER-Rubber Mount-Flywheel Housing | 2 | |||||
| 4 | 10-37612 | SCREW (.375-16 x 1.250)-Flywheel Housing Attaching | 4 | ||||||
| 4 | 10-32132 | SCREW (.375-16 x 1.750)-Flywheel Housing Attaching | 1 | ||||||
| 5 | 16-64066 | STUD (2.750 In.)-Flywheel Housing Attaching | 2 | ||||||
| 6 | 11-32219 | NUT (.375-16)-Flywheel Housing Attaching Stud | 2 | ||||||
| 7 | 13-35048 | LOCKWASHER (.375)-Flywheel Housing Screw | 8 | ||||||
| 8 | 12-20572 | WASHER-Special (.375)-Housing Screw | 1 | ||||||
| 9 | 54-78945 | J CLAMP-Flywheel Housing Stud | 2 | ||||||
| 10 | 13930A3 | COVER KIT | 1 | This Part is No Longer Available (S/N: 0D456000 - 0D725505) 5 | |||||
| 10 | 807260A2 | COVER KIT-With Gasket | 1 | 818719A3 | (S/N: 0D725506 - 0F348963) 6 | ||||
| 11 | 10-32773 | SCREW (.250-20 x .875)-Cover to Flywheel Housing | 7 | ||||||
| 12 | 84-62826A6 | CABLE ASSEMBLY (Black) | 2 |
