525 SC (Gen 5) GM 454 V-8 1992-1995 - Serial 0D456000 Thru 0F348963 - Oil Pan and Oil Pump Assy (0D456000 - 0D725808)

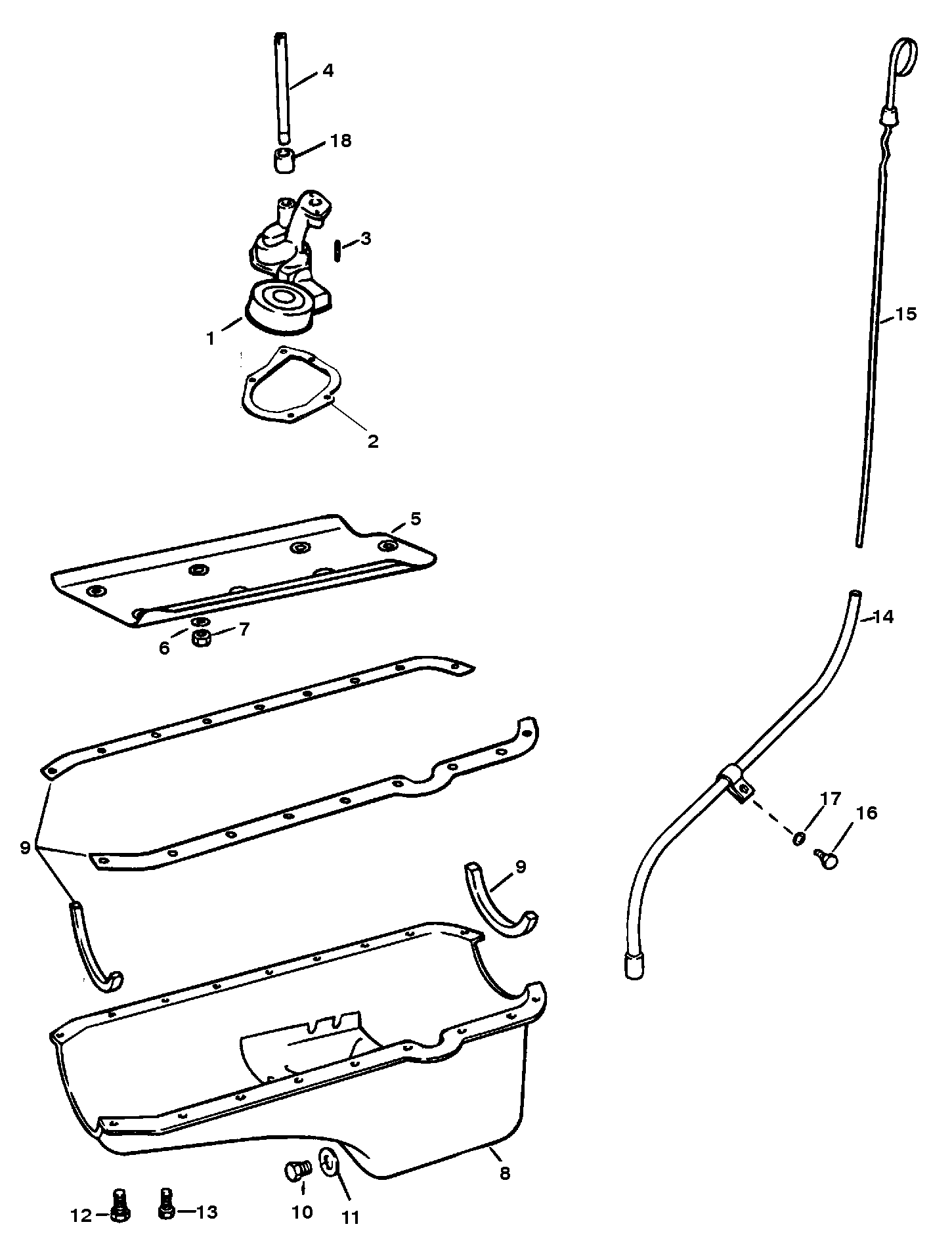

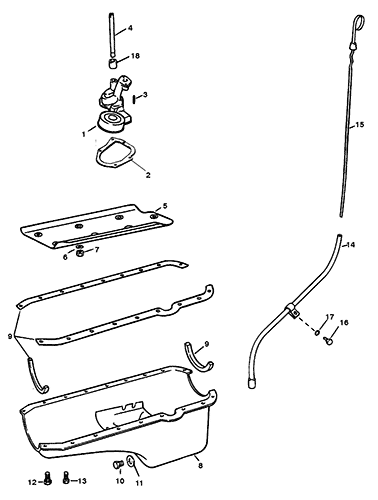

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite # 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 827589T1 | PUMP ASSEMBLY-Oil | 1 | 827589A1 | |||||
| 2 | FI5000254 | GASKET-Oil Pump | 1 | This Part is No Longer Available | |||||
| 3 | 16-845599 | STUD | 1 | 16-49108 | |||||
| 4 | 848511 | SHAFT | 1 | 49149 | |||||
| 5 | 49198 | BAFFLE | 1 | This Part is No Longer Available | |||||
| 6 | 12-20553 | WASHER | 5 | ||||||
| 7 | 11-37500 | NUT (.375-16) | 5 | ||||||
| 8 | 19221T | PAN ASSEMBLY-Oil | 1 | 19221 | This Part is No Longer Available | ||||
| 9 | 27-52550 | 676-9-61501 | 700-39490 | GASKET SET | 1 | 14 | |||
| 10 | 10-49956 | SCREW | 1 | ||||||
| 11 | 27-8M0077608 | GASKET | 1 | 27-49955 | |||||
| 12 | 10-34500 | SCREW (.312-18 x .625) | 20 | ||||||
| 13 | 10-72607 | SCREW | 2 | ||||||
| 14 | 32-816200A2 | TUBE ASSEMBLY-Dipstick | 1 | ||||||
| 15 | 86194218 | DIPSTICK-Oil Level | 1 | 14607T | |||||
| 16 | 10-76926 | SCREW (.375-16 x .875) | 1 | ||||||
| 17 | 13-35048 | LOCKWASHER (.375) | 1 | ||||||
| 18 | 23-52193 | SLEEVE-Oil Pump Shaft | 1 | This Part is No Longer Available | |||||
| - | 27-817118A90 | Gasket Set | - | This Part is No Longer Available |
