525 SC (Gen 5) GM 454 V-8 1992-1995 - Serial 0D456000 Thru 0F348963 - Wiring and Electrical Components (0D456000 - 0D763831)

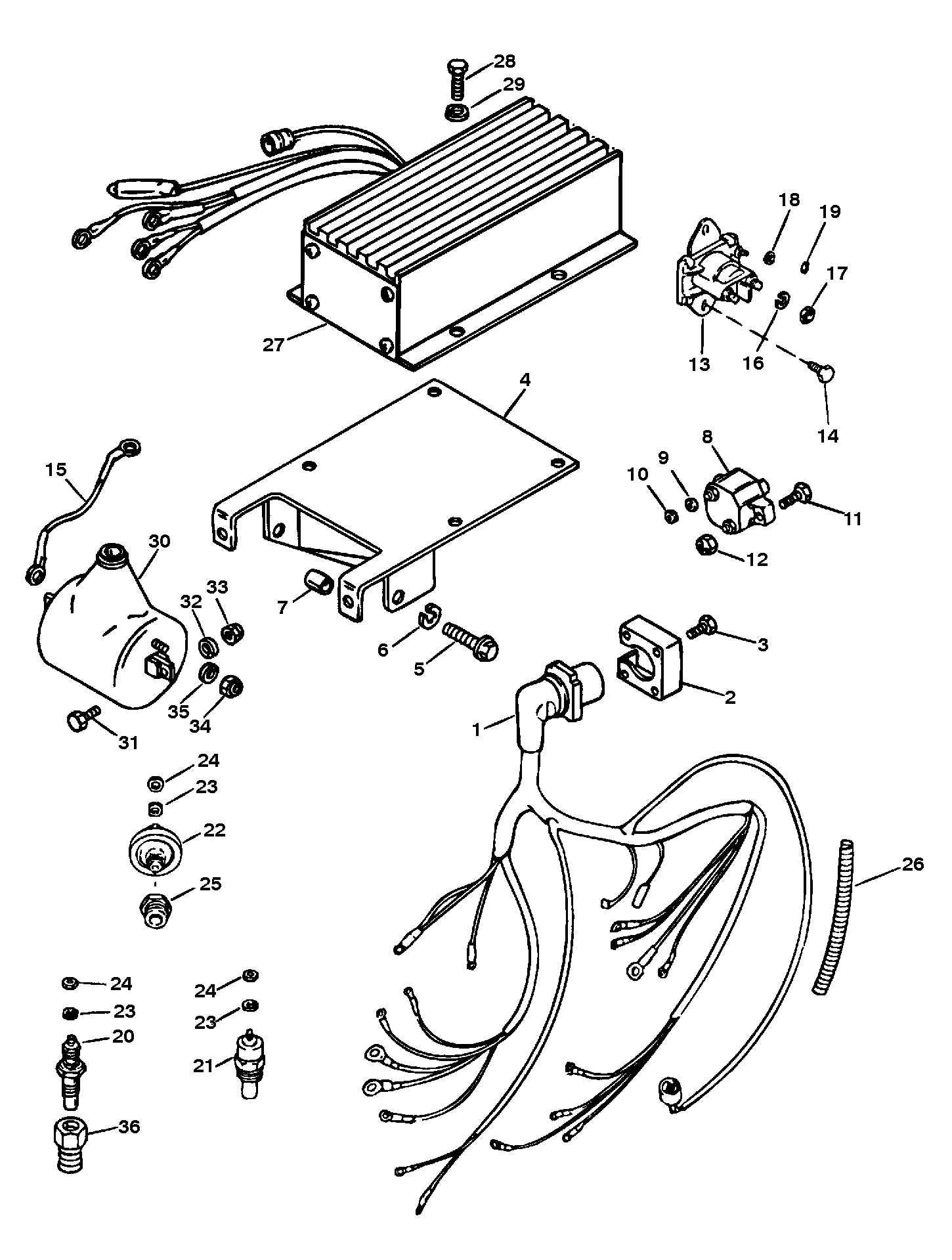

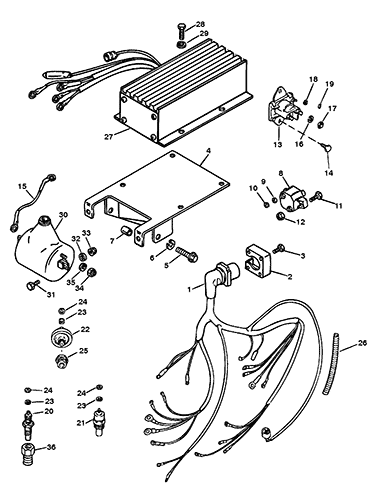

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite # 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 84-14338T5 | HARNESS ASSEMBLY-Wiring | 1 | 84-14338A5 | |||||
| 2 | 26079A2 | PLATE KIT | 1 | ||||||
| 3 | 10-15001 | SCREW (#8-16 x .875) | 4 | ||||||
| 4 | 8164703 | BRACKET-Electrial Mount | 1 | This Part is No Longer Available | |||||
| 5 | 10-37612 | SCREW (.375-16 x 1.250) | 3 | ||||||
| 6 | 13-35048 | 700-21495 | LOCKWASHER (.375) | 3 | |||||
| 7 | 23-90523 | SPACER | 3 | ||||||
| 8 | 88-11178A01 | BREAKER-Circuit (50 AMP) | 1 | 88-11178 | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 9 | 13-26996 | LOCKWASHER (#10) | 2 | ||||||
| 10 | 11-68219 | NUT (#10-32) | 2 | ||||||
| 11 | 10-45862 | SCREW (#10-32 x .875) | 2 | ||||||
| 12 | 11-61356 | NUT (#10-32) | 2 | ||||||
| 13 | 89-96054T | 700-72390 | SOLENOID-Starter | 1 | 89-96054 | ||||
| 14 | 10-98253 | SCREW (.250-20 x .500) | 2 | ||||||
| 15 | 84-848879A1 | CABLE ASSEMBLY (RED) (35.500 In.) | 1 | 84-79139A16 | |||||
| 16 | 13-26992 | LOCKWASHER (.250) | 2 | ||||||
| 17 | 11-94330 | NUT (.250-20) | 2 | ||||||
| 18 | 13-26995 | LOCKWASHER (#8) | 2 | ||||||
| 19 | 11-26419 | NUT (#8-32) | 2 | ||||||
| 20 | 13611 | SENDER-Oil Temperature | 1 | ||||||
| 21 | 806490T | 676-9-42400 | SENDER-Water Temperature | 1 | 97257A1 | ||||
| 21 | 49734 | SENDER-Water Temperature (Dual) | OPT | 49734A1 | 2 | ||||
| 22 | 8M0068784 | SENDER-Oil Pressure | 1 | 815425 | |||||
| 22 | 37293T | SENDER-Oil Pressure (Dual) | OPT | 37293 | 2 | ||||
| 23 | 13-26996 | LOCKWASHER (#10) | 3 | ||||||
| 24 | 11-45076 | NUT (#10-32) | 3 | ||||||
| 25 | 22-64013 | REDUCER | 1 | ||||||
| 26 | 32-77690 | WRAPPING | 1 | ||||||
| 27 | 814295T2 | IGNITION CONVERSION KIT | 1 | 814295A2 | This Part is No Longer Available | ||||
| 28 | 10-49668 | SCREW (.250-20 x .750) | 4 | ||||||
| 29 | 13-21272 | LOCKWASHER (.250 Internal) | 4 | ||||||
| 30 | 816469 | COIL | 1 | This Part is No Longer Available | |||||
| 31 | 10-49668 | SCREW (.250-20 x .750) | 2 | ||||||
| 32 | 12-29245 | 700-21490 | WASHER | 2 | |||||
| 33 | 11-8267098 | NUT (.250-20) | 2 | 11-56374 | |||||
| 34 | 11-68219 | NUT (#10-32) | 2 | ||||||
| 35 | 13-26996 | LOCKWASHER (#10) | 2 | ||||||
| 36 | 22-36492 | BUSHING-Reducer | 1 |
